K36522-1500-CH PRS4 Series 48Gbps 8K Active Optical Certified HDMI Cable - 15m

The new Kordz PRS4 Series 48Gbps Active Optical HDMI Cables are designed to meet the high demands and rigour of professional integration.

They’re constructed to be compact, robust and flexible, while supporting the full features and benefits of the latest HDMI technologies at 48Gbps when using 4K HFR or 8K devices.

Key Features

• Ultra High Speed certified
• 48Gbps support for 8K/10K, HDR, VRR, HFR, 3D, FRL
• Robust engineering and construction with premium materials
• 15µ” gold-plated solid copper pins
• Compact connector with full internal zinc-alloy diecast housing

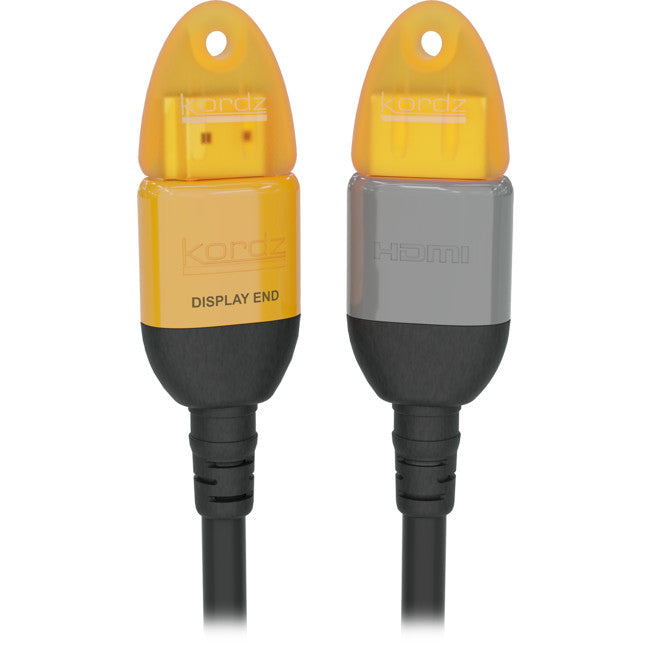

• Easy installation aided by the unique Kordz shark-nose dust-cap
• Convenient easy tear bulk packaging minimising waste on site
• Low Smoke Zero Halogen Construction
• Installer friendly packaging
• High contrast detailed labelling with inventory management design
• No external power dependencies, it works like a normal passive HDMI cable
• Available in 10m, 15m, 20m lengths

Application

HDMI Signal Support

Data Rate: Up to 48Gbps (FRL mode) | up to 18.2Gbps (TMDS mode)
Video Resolution: Up to 8K (7680 x 4320) / 10K (10240 x 4320)
Video Refresh Rate: Up to 240 frames per second
Colour Depth: Up to 16 bits
Colour Formats: RGB 4:4:4 / Y’C_BC_R 4:2:2 / Y’C_BC_R 4:2:0
Content Protection: Up to HDCP 2.3 supported
Audio Sample Rate / Channel: Up to 192KHz
Audio Sample Size: Up to 24 bits
Audio Channels: Up to 32 channels
Audio Formats Supported: DTS Master, DTS:X, Dolby TrueHD, Dolby Atmos
Auxiliary HDMI Features Supported: Consumer Electronic Control (CEC), Auto Lip-Sync Correction, Ethernet channel, Audio Return Channel (ARC), Enhanced Audio Return Channel (eARC), High Dynamic Range (HDR), Dynamic HDR, Variable Refresh Rate (VRR), Quick Media Switching (QMS), Quick Frame Transport (QFT), Auto Low Latency Mode (ALLM), Display Stream Compression (DSC), Source-Based Tone Mapping (SBTM)

Technical info

HDMI CERTIFICATION 10.0m – 20.0m ACTIVE OPTICAL

HDMI CTS Certification: Ultra High Speed HDMI® Cable
DPL Labs Certified Data Rate: 12.0Gbpsc, 48Gbps agg
Supported Data Rate: =12.0Gbpsc, 48Gbps agg (8K UHD)
Supported HDMI Clock: 1200MHz

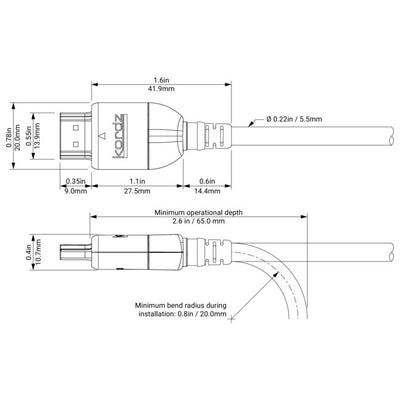

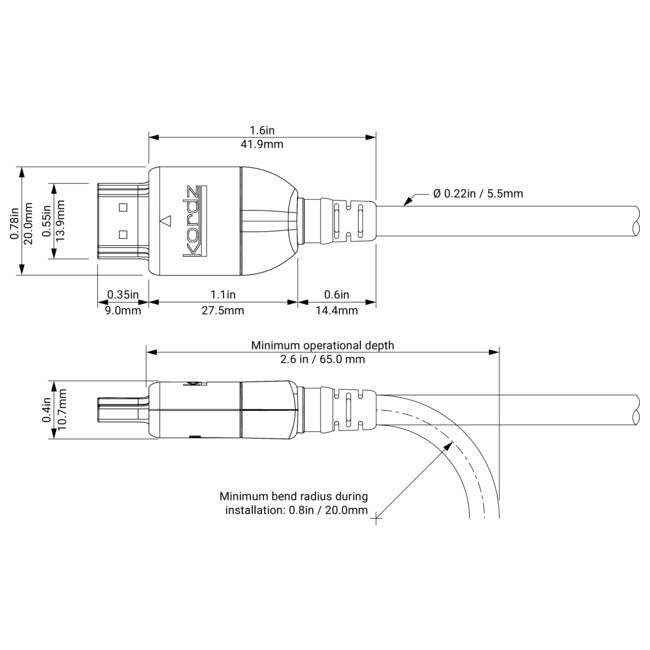

MECHANICAL

Cable Diameter: 5.5mm±0.30mm / 8.5mm±0.30mm
Mounting Length: 41.9mm/1.96″
Cable Bend Radius: 20.0mm/0.78″ – 25.0mm/ 0.98″
Retention Force (nom): 20N (approx. 2kg / 4.4lbs) +10/-5%

CONSTRUCTION

FRL/TMDS Conductors: OM2 (50/125µm) optical fibre
Conductors: Bare copper, 32-26AWG
Shielding Overall: Al-PET (nom. 25% overlapping, Al side face out) Tinned copper wire braiding(16/13/0.08mm), with nom. 85% coverage
Cable Jacket Material: LSZH rated composite
HDMI Connector Shell: Anti-fatigue die cast Zn alloy, 1µ” 24K Gold plated
HDMI Connector Pins: Solid OFC, 15µ” 24K Gold plated
Active Technology: Directional, In-shell Optical Light Engine
HDMI Backshells: ABS front shell with PVC injection moulded boot and strain relief

Warranty

The Kordz PRS4 Active Optical HDMI Cable is backed by our 2 Year Product Guarantee.
