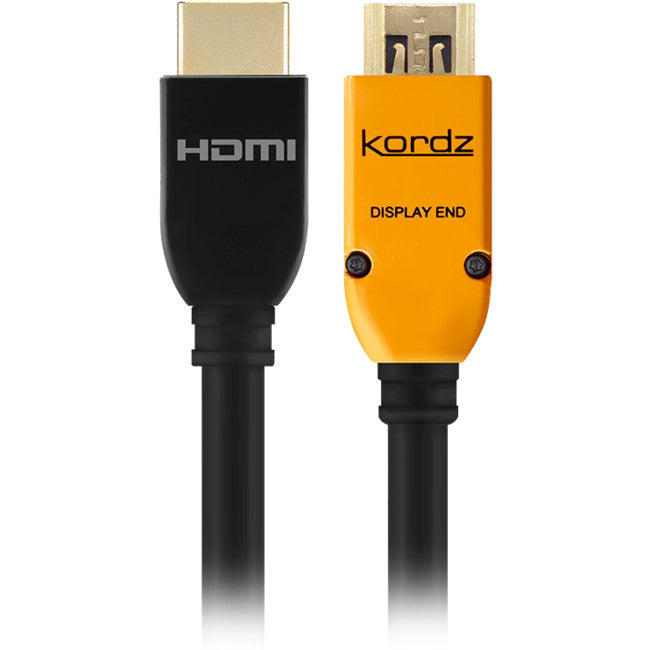

K36232-2000-CH 18GBPS ACTIVE OPTICAL HDMI 20M PRS SERIES 3 LEAD - 4K UHD KORDZ K36232-2000-CH

$396.00

Online Stock Only.

For "click and collect" orders at Lynbrook store the shipping fee will still apply on collection for items not stocked at the Lynbrook store.

PRS3 Spectra 7 Active

4K UHD 18Gbps ACTIVE OPTICAL HDMI CABLE

Kordz PRS3 features a narrow profile full metal die-cast shell assembly behind a unique grip tab HDMI connector for 1kg receptacle retention capacity.

Engineered to mitigate connector dropout potential - not suitable for repeated plug/unplug events.

Active Optical Cable (AOC) 10m - 30m, 4K/UHD 18Gbps certified by DPL Labs?
Engineered to fit through a 1” conduit
Reinforced internals for superior flexibility and pullstrength during installation
Light weight & flexible
No external power requirements - works just like a 1m HDMI Cable
100% of units tested on the production line for electrical continuity on all pins with additional 4K(2160p/60), 4:4:4, 17.82Gbps application test
High Speed, all lengths
Fire rated in 10m-30m lengths
Limited 5 Year Warranty
Licensed HDMI 2.0 Adopter company

4K CERTIFICATIONS

DPL Laboratories 4K-18G Deep Colour

DPL Laboratories, Inc. are experts on high-band- width digital signalling solutions.

The respected DPL 4K Product Certification Program is designed to combat the fears of cable and displaymanufacturers and end users alike.

TECHNICAL SPECIFICATIONS

HDMI CERTIFICATION10.0m - 30.0m ACTIVE OPTICAL

DPL Labs Certified Data Rate: 6.0Gbpsc, 17.82Gbps aggregate
Supported Data Rate: > 6.0Gbpsc,17.82Gbps (4K UHD)
Supported HDMI Clock: 27-340MHz

MECHANICAL

Cable Diameter: 5.00mm±0.2mm / 0.19” Ø
Mounting Length: 70.0mm/2.76”
Cable Bend Radius: 20.0mm/0.78”
Retention Force (nom):9.8N (1kg / 2.2lbs) +10/-5%

CONSTRUCTION

TDMS:4x Polymer Insulated Glass Fibres
Conductors: 32AWG Tinned copper wire
Insulation on TMDS:Polymer
Insulation on 4C + HEAC Pairs: Solid Polyolefin = 2.0 relative permittivity
Shielding Overall: AL/Mylar
Cable Jacket Material:LSZH Composite, 10m-30m lengths
HDMI Connector Shell: Premium gauge folded steel, 1µ” 24K Gold plated
HDMI Connector Pins: Solid OFC, 15µ” 24K Gold plated
Active Technology: Directional, In-shell Optical Light Engine
Termination: Contactless IR inductionsoldering
HDMI Backshells:Orange & Charcoal powder coated with stoving varnish die-cast zinc alloy shell assembly

APPLICATION SPECIFICATIONS

Video Format Support - Data rate per channel / Aggregate, TMDS Bandwidth

480i/p, 576i/p:= 540Mbpsc/1.62Gbps, 270MHz
720p/1080i:742.5Mbpsc/2.22Gbps, 371.25MHz
1080p -8-bit RGB/YCbCr 4:4:4, 10/12-bit 4:2:2 or 4:2:0:
23.98/24/29.97/30 -742.5Mbpsc/2.22Gbps, 371.25MHz
50/59.94/60 -1.485Gbpsc/4.455Gbps, 742.5MHz
3D-24/30 -1.485Gbpsc/4.455Gbps, 742.5MHz
3D-50/60 -2.97Gbpsc/8.91Gbps, 1.485GHz
1080p - 10/12/16-bit RGB/YCbCr 4:4:4:
50/59.94/60fps -1.86-2.97Gbpsc/5.57-8.91Gbps, = 1.485GHz
2160p (UHD/4K)
HDMI 1.4b -8-bit RGB/YCbCr 4:4:4, 10/12-bit 4:2:2 or 4:2:0:
4096x2160p/24 (SMPTE)-2.97Gbpsc/8.91Gbps, 1.485GHz
3840x2160p/23.98/24/29.97/30-2.97Gbpsc/8.91Gbps, 1.485GHz
HDMI 2.0 -8-bit YCbCr 4:2:0:
2160p*/50/59.94/60- 2.97Gbpsc/8.91Gbps, 1.485GHz
HDMI 2.0 mode -8-bit 4:4:4, 10/12-bit 4:2:2 or 16-bit 4:2:0:
2160p*/50/59.94/60-2D (CEA-861-F)-5.94Gbpsc/17.82Gbps, 2.97GHz
2160p*30-3D-5.94Gbpsc/17.82Gbps, 2.97GHz
VESA Graphics:Supports all as defined by HDMI 2.0 specification, up to 17.82Gbps
Color Spaces:RGB, YCbCr, xvYCC, Adobe sRGB, sYCC601, ITU-BT.2020
Audio Formats Support:PCM 2.0-7.1, DD/DTS HD 7.1, 3D Audio (10.2 | 22.2 | 30.2ch)
HDMI Audio Return Channel:Supported, System Dependant

MODELS

Length:10.0m, 32.8ft
Model:K36212-1000-CH
Technology:Active Optical, Directional

Length:15.0m, 49.2ft
Model:K36212-1500-CH
Technology:Active Optical, Directional

Length:20.0m, 65.6ft
Model:K36212-2000-CH
Technology:Active Optical, Directional

Length:25.0m, 82.0ft
Model:K36212-2500-CH
Technology:Active Optical, Directional

Length:30.0m, 98.4ft
Model:K36212-3000-CH
Technology:Active Optical, Directional
