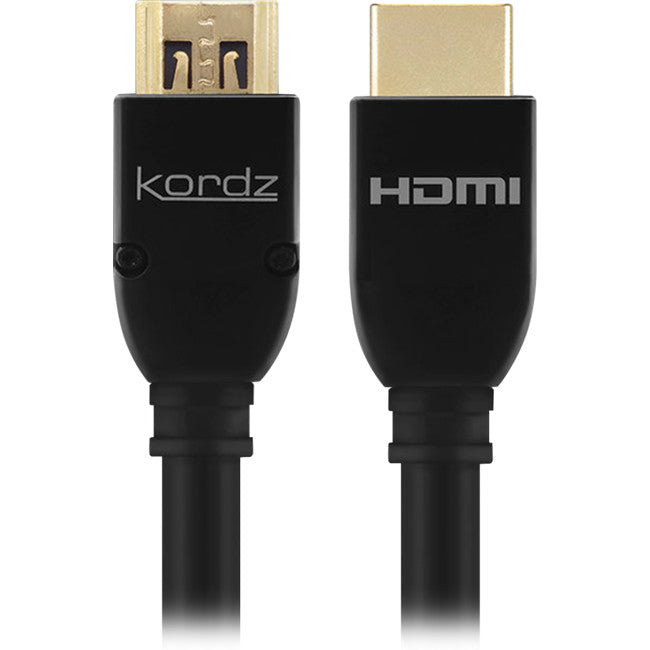

K360360300 3M HDMI CABLE PRS SERIES 3 PASSIVE COPPER-18GBPS 4K/UHD KORDZ K36036-0300-CH

$56.55

4K UHD 18Gbps PASSIVE HDMI CABLE

Kordz PRS3 features a narrow profile full metal die-cast shell assembly behind a unique grip tab HDMI connector for 3kg receptacle retention capacity.

Engineered for high performance applications andto mitigate connector dropout potential - not suitable for repeated plug/unplug events.

DPL Certified 4K 18G-DC
High Speed with Ethernet on all lengths
Passive in lengths 0.5m - 5m / 1.64’ - 16.4’
18mm wide connector engineered to fit through1”/25mm conduit
Induction soldered pin transitions for benchmark inter-terminal uniformity
Unique grip tab connectors with 3kg retentionfor permanent installations
100% of units tested on the production line for electrical continuity on all pins, with full Bit Error Rate (BER) application test
UL CMG fire rated in all lengths
Lifetime warranty

4K CERTIFICATIONS

DPL Laboratories 4K-18G Deep Colour
DPL Laboratories, Inc. are experts on high-band- width digital signalling solutions.

The respected DPL 4K Product Certification Program is designed to combat the fears of cable and display manufacturers and end users alike.

Technical Specification

HDMI CERTIFICATION ≤ 5.0m PASSIVE

HDMI CTS Certification:High Speed with Ethernet
DPL Labs Certified Data Rate: 6.0Gbpsc, 17.82Gbps aggregate
Supported Data Rate: > 6.0Gbpsc, 17.82Gbps aggregate (4K UHD)
Supported HDMI Clock: 27-340MHz

MECHANICAL

Cable Diameter: 0.5m - 3.0m: 30 AWG, 5.7mm/0.22” Ø | 5m: 28 AWG, 6.5mm/0.26” Ø
Mounting Length:0.5m - 3.0m: 30AWG, 47.0mm/1.85” | 5m: 28 AWG, 56mm/2.20”
Cable Bend Radius:0.5m - 3.0m: 30 AWG, 24.0mm/0.94” | 5m: 28 AWG, 28.0mm/1.02”
Retention Force (nominal):29.7N (3kg / 6.6lbs) +10/-5%

CONSTRUCTION

Primary Conductors: Solid 28-30 AWG OFC, length dependent
Insulation on TMDS:Foam-PE
Insulation on 4C + HEAC Pairs: HDPE/Foamed PE, length dependent
Shielding on TMDS Pairs: Al/Mylar
Shielding Overall: Al/Mylar + Al braid 80% coverage
Cable Jacket: UL CMG fire rated PVC
HDMI Connector Shell: Pressed steel with dual grip tabs, 1µ” 24K Gold plated
HDMI Connector Pins: Solid OFC, 15µ” 24K Gold plated
Termination: Contactless IR inductionsoldering
HDMI Backshell:Charcoal powder coatedwith stoving varnish die-cast zinc alloy shell assembly

Physical Dimensions

APPLICATION SPECIFICATIONS

Video Format Support - Data rate per channel / Aggregate, TMDS Bandwidth

480i/p, 576i/p: ≤ 540Mbpsc/1.62Gbps, 270MHz
720p/1080i: 742.5Mbpsc/2.22Gbps, 371.25MHz
1080p -8-bit RGB/YCbCr 4:4:4, 10/12-bit 4:2:2 or 4:2:0:
23.98/24/29.97/30 -742.5Mbpsc/2.22Gbps, 371.25MHz
50/59.94/60 -1.485Gbpsc/4.455Gbps, 742.5MHz
3D-24/30 -1.485Gbpsc/4.455Gbps, 742.5MHz
3D-50/60 -2.97Gbpsc/8.91Gbps, 1.485GHz
1080p - 10/12/16-bit RGB/YCbCr 4:4:4:
50/59.94/60fps -1.86-2.97Gbpsc/5.57-8.91Gbps, ≤ 1.485GHz
2160p (UHD/4K)
HDMI 1.4b - 8-bit RGB/YCbCr 4:4:4, 10/12-bit 4:2:2 or 4:2:0:
4096x2160p/24 (SMPTE) -2.97Gbpsc/8.91Gbps, 1.485GHz
3840x2160p/23.98/24/29.97/30 -2.97Gbpsc/8.91Gbps, 1.485GHz
HDMI 2.0 - 8-bit YCbCr 4:2:0:
2160p*/50/59.94/60 - 2.97Gbpsc/8.91Gbps, 1.485GHz
VESA Graphics:Supports all as defined by HDMI 2.0 specification, up to 17.82Gbps
Color Spaces:RGB, YCbCr, xvYCC, Adobe sRGB, sYCC601, ITU-BT.2020
Audio Formats Support:PCM 2.0-7.1, DD/DTS HD 7.1, 3D Audio (10.2 | 22.2 | 30.2ch)
HDMI Audio Return Channel:Supported, System dependant.

MODELS

Length: 0.5m, 1’7”
Model:K36036-0050-CH
AWG:30
Technology:Passive

Length:1.0m, 3’3”
Model:K36036-0100-CH
AWG:30
Technology: Passive

Length: 1.5m, 4’11"
Model:K36036-0150-CH
AWG:30
Technology:Passive

Length: 2.0m, 6’6”
Model:K36036-0200-CH
AWG:30
Technology: Passive

Length:3.0m, 9’10"
Model:K36036-0300-CH
AWG:30
Technology:Passive

Length: 5.0m, 16'4"
Model:K36036-0500-CH
AWG:28
Technology: Passive
