$709.05

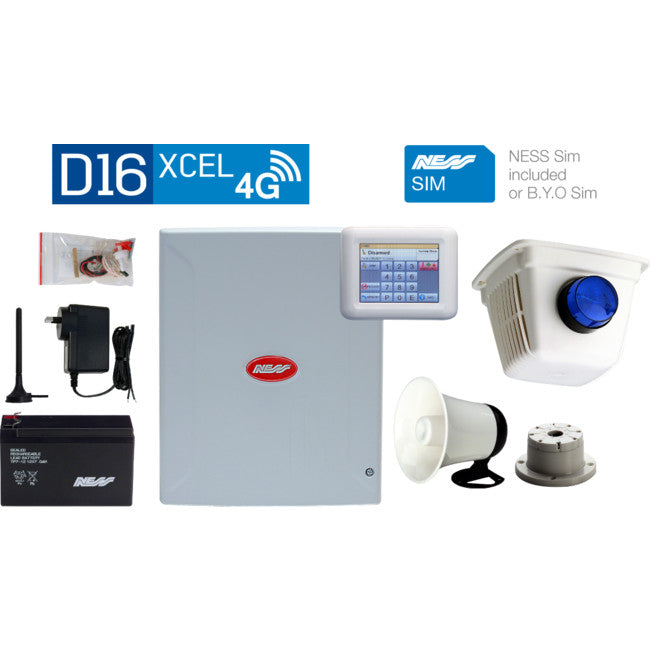

Ness D16x control panels offer the widest possible combination of standard features and options to provide users and installers with the most powerful and flexible security panels ever made by Ness.
New Features in XCEL 4G
Features:
Communicator
BOX DIMENSIONS (W x H’áx D) | 235 x 300 x 90 mm (Plastic housing) |
POWER’áINPUT | 17VAC or 20VDC |
AUX POWER OUTPUT | 13.8v DC @ 800mA |
QUIESCENT CURRENT DRAW | 80mA with 1 keypad |
RECHARGEABLE BATTERY | 12 volt 7.0 Amp/hour Sealed lead Acid |
BATTERY CHARGING CURRENT | 350mA maximum, current limited |
DYNAMIC BATTERY TEST | Backup battery is tested under load, hourly and on arming |
FUSES | 2 Amp auto resetting / Siren output & Reset output. 500mA auto resetting / 12 volt auxiliary outputs. |
ZONE OUTPUTS | 8 or 16 zoneinputs (D8XCEL4G/D16XCEL4G) 2 x 24hr tamper inputs |
END OF LINE RESISTOR | Choice of 12programmable values including N/C. Default 2200 Ohms (2.2k) |
MAXIMUM KEYPADS | 3 (Sold Seperatly). |
INTEGRATED RADIO OPTIONS | Multi-pin connector for the optional Ness Radio Interface. Supports upto 55 Radio keys . Up to 16 radio zones |
SERIAL HEADER | Serial data port for direct connect programming using NessCommsTM software. Also 2 way serial data |
INTEGRATED ACCESS CONTROL | Multi-pin connector the optional Weigand Interface. Supports up to 3 Ness proximity access card readers |
SIREN OUTPUT | On board siren driver with timed output. Maximum 3 x 8 Ohm horn speakers |
STROBE OUTPUT | 12v DC timedoutput. Maximum 2 x 1 Watt strobe lights |
RESET OUTPUT | 12v DC timedoutput. Max. 3 x 12v piezo screamers |
EQUIPMENT POWER OUTPUT | 13.8v DC output for powering detectors and other equipment. Maximum 500mA |
AUX’áOUTPUTS | Multi-pin connectors provides outputs Aux1~4, Aux5~8 |
