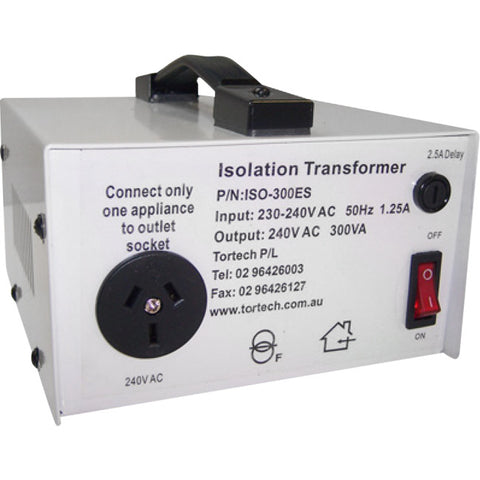

300VA MAINS ISOLATION TRANSFORMER WITH ELECTROSTATIC SCREEN
- Australian Made Quality Units
- All units are enclosed
- All units include a noise minimising electrostatic screen, suitable for audio noise reduction.
- Applications include Earth Loop removal in audio systems and the elimination of boating electrolysis.
- Input voltage 240V ±10% 50Hz. Australian flexand plug
- Output voltage 240V Unregulated. Australian female chassis socket
FEATURES:
- All units are enclosed
- All units are Fully Australian Made and quality checked
- Input voltage 240V ±10% 50Hz. Australian flexand plug
- Output voltage 240V Unregulated.
- One Australian female chassis socket
- All units are double wound. Primary to Secondary fully insulated
- Optional Electrostatic screen
- All transformers incorporate “soft start” circuitry to eliminate inrush current problems during turn on.
- All enclosures are metal, with white powder coat finish.
- All enclosures are earthed on the input side
- Test Voltage 3.75 kV AC RMS
- All units are fuse protected on the 240V input side.
- All units are made to AS/NZS 61558
SPECIFICATIONS:
Part No |
Rating Max watts
| Voltage |
Depth mm
|
Width mm
|
Height mm
|
Weight kg
|
ISO300 | 300 VA | 240/240 Volts | 240 | 150 | 120 | 4.5 |
| ISO600 | 600 VA | 240/240 Volts | 280 | 150 | 140 | 5.0 |
| ISO1000 | 1000 VA | 240/240 Volts | 300 | 235 | 150 | 10 |
| ISO2000 | 2000 VA | 240/240 Volts | 300 | 235 | 150 | 16 |
