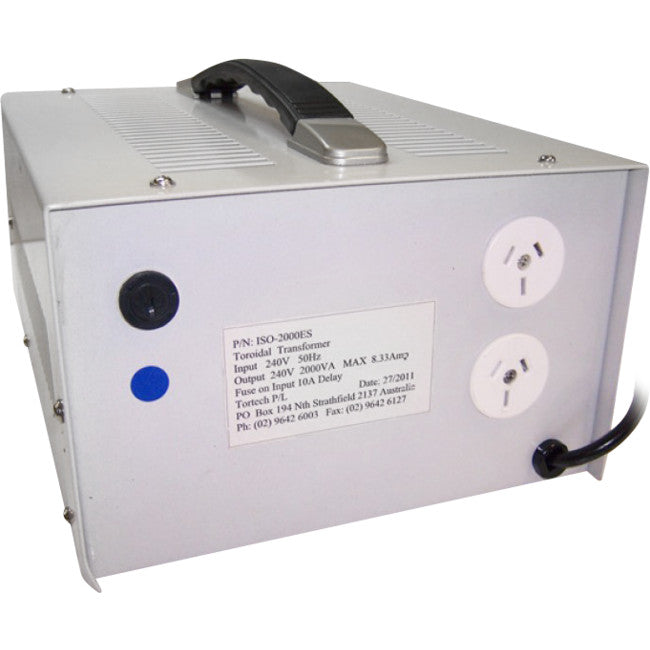

ISO2000ES-240V 2000VA ISOLATION TRANSFORMER MAINS ELECTROSTATIC SCREEN TORTECH ISO-2000ES

2000VA MAINS ISOLATION TRANSFORMER WITH ELECTROSTATIC SCREEN

  • Australian Made Quality Units
  • All units are enclosed
  • All units include a noise minimising electrostatic screen, suitable for audio noise reduction.
  • Applications include Earth Loop removal in audio systems and the elimination of boating electrolysis.
  • Input voltage 240V ±10% 50Hz. Australian flexand plug
  • Output voltage 240V Unregulated. Australian female chassis socket

FEATURES:

  • All units are enclosed
  • All units are Fully Australian Made and Quality
  • Input voltage 240V ±10% 50Hz. Australian flexand plug
  • Output voltage 240V Unregulated.
  • One Australian female chassis socket
  • All units are double wound. Primary to Secondary fully insulated
  • Optional Electrostatic screen
  • All transformers incorporate “soft start” circuitry to eliminate inrush current problems during turn on.
  • All enclosures are metal, with white powder coat finish.
  • All enclosures are earthed on the input side
  • Test Voltage 3.75 kV AC RMS
  • All units are fuse protected on the 240V input side.
  • All units are made to AS/NZS 61558

SPECIFICATIONS:

Part No

Rating

Max watts

   Voltage

Depth

mm

Width

mm

Height

mm

Weight

kg

ISO300

300 VA

240/240 Volts

240

150

120

4.5

ISO600

600 VA

240/240 Volts

280

150

140

5.0

ISO1000

1000 VA

240/240 Volts

300

235

150

10

ISO2000

2000 VA

240/240 Volts

300

235

150

16
