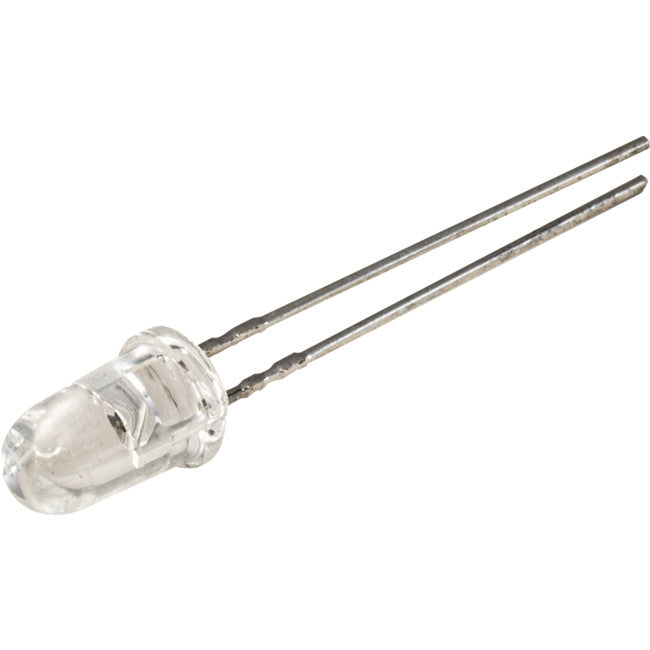

5MM INFRA-RED RECEIVER DIODE
Looks like a 5mm LED & has a clear transparent lens. Mechanically and spectrally matched to the IRE5 infrared emitting led lamp.
Specifications:
- Water clear lens
- Made with NPN silicon phototransistor chips
- NPN Collector-to-Emmiter Breakdown voltage: 30V
- Emitter-to-Collector Breakdown voltage: 5V
- Collector-to-Emmiter Saturation voltage: 0.8V Max
- Collector Dark current: 100nA@10V(Vce)
- Rise and Fall time: 3uS @ 5V(Vce)
- Breakdown voltage: 5V
- Power Dissipation: 100mW max
- Collector: Short Leg
- Emitter: Long Leg
