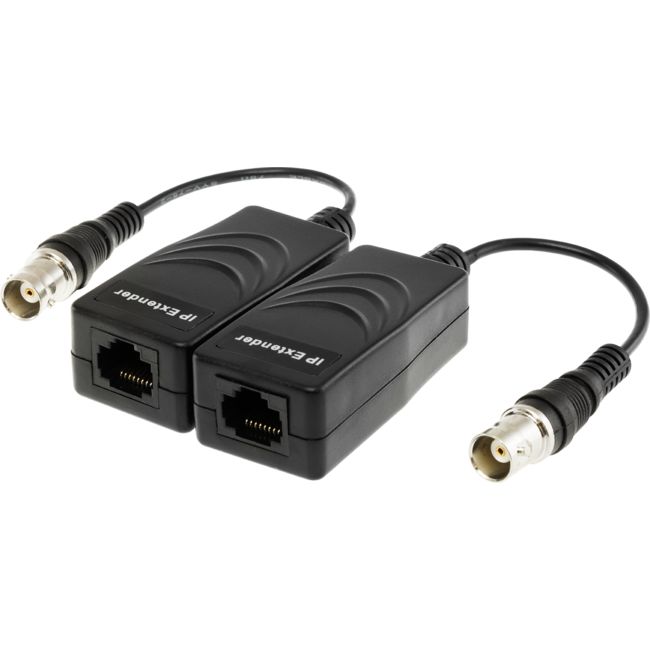

IPOC200 200M IP OVER COAX EXTENDER PASSIVE PAIR BANDWIDTH 10Mbps DOSS FS-EOC7001

Product Features:

• 1-CH IP extender over coax cable
• Transmit Ethernet signal over coax cable
• Transmission distance max up to 2 00m
• Access Control Method and Physical Layer Specification Comply with IEEE802.3,10BASE-T and 100BASE-T
• Passive device, no power required
• Real-time transmission
• Built-in TVS for surge protection
• Compact size, easy to install
• ABS engineering housing

Product Overview:

IPOC200 is a kind of Ethernet signal extender over coax cable, which adopts specific technology for media conversion, complies with IEEE802.3, 10BASE-T and 100BASE-T Protocol Standards. The device can transmit Ethernet signal200 meters over coax cable without extra power provided. Built-in TVS for surge protection help IPOC200 can protect interior equipment when encounter badly thunderstorms from. As for the application area IPOC200 can be widely used for network monitoring project, upgrading from coaxial analog monitoring system to network HD monitoring system, and all the field of transmitting Ethernet signal over coax cable.

Please note: this IPOC200 dose not support POE pass through.

Applications:

Security Monitoring System
Triple-Play Transmission Solutions
Intelligent Home System
Industrial Control System
Banking Security
School Security
Store Security

Technical Specifications:

Model		IPOC200
Product Name		Single Channel IP Extender over Coax
Applied Devices		PoE Switch, Network DVR, Video Codec, Other Network Equipments
Video	Ethernet Port	10/100 Mbps
	Impedance	UTP:100 ohm coax:75 ohm
	Distance	Up to 200m(100Mbps)
Power		No Extra Power Needed
Connector	Video Port	RJ45 (Female)
	Video Port	BNC (Female)
Protection Level	Surge Protection Type	RenewableSolid Surge Protection
	Coaxial Surge Protection	2KV(Common Mode), 10/700us IEC6100-4-5/1955(GB/T 1726, 5-1999)
	Twisted Pair Interface Surge Protection	2KV(Differential Mode), 10/700us IEC6100-4-5/1955(GB/T 1726, 5-1999)
Operating Environment	OperatingTemperature	-20-85 ?
	Storage Temperature	0~95%
	Humidity	115mm*82mm*22mm
Physical Properties	Dimension(Length*Width*Height)	ABS Engineering Plastic
	Housing	Black
	Color	90g
	Weight	>20000h
Reliability	MTBF

Diagram:
