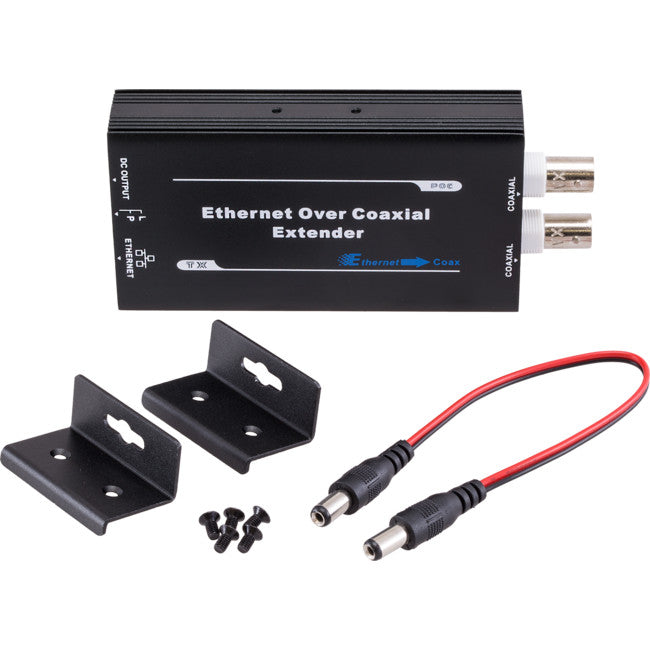

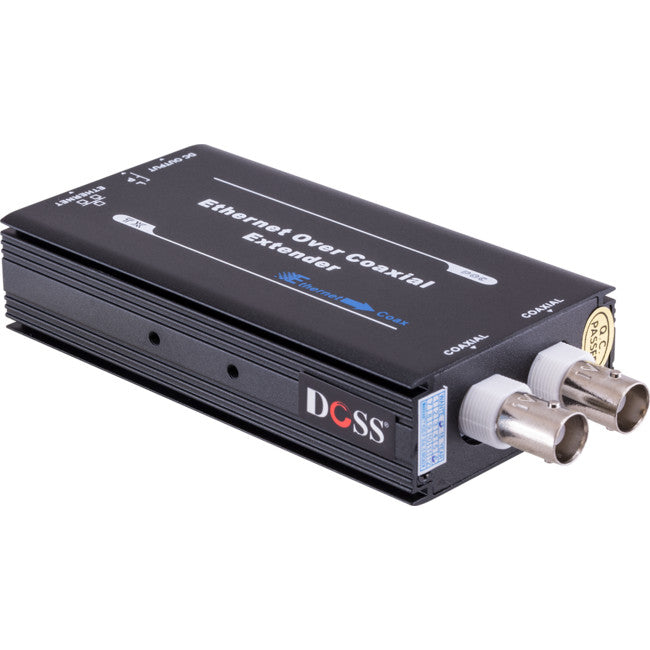

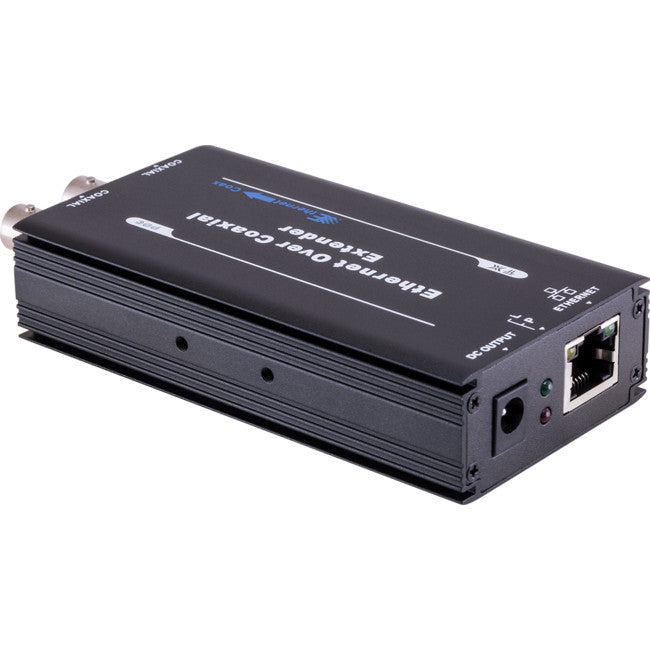

IPOC1KPT is Ethernet and power signal transmitter over single coaxial cable. The IPOC1KPT is used with IPOC1KR, which is an ideal solution for reconstruction of old projects without any change of existing coaxial cable. You needn't change coax into network cable when you want to change analog cameras into IP cameras. Both of Ethernet and power transmission distance reach max up to 1000meters. The IPOC1KPT is able to provide power to POE cameras over network cable and it is able to provide power to NONE-POE cameras, too.
With high speed modern technology, the physical bandwidth is up to 100Mbps (bidirectional). The IPOC1KPT is built-in multi-stage surge and lightning protection protect video equipment against damaging voltage spikes and providenoise immunity to ensure quality signals without disturbing "hum-bars".
The IPOC1KPT is widely applied to the fields such as network expanding system, network security system, network information distribution system, network upgrading & expanding system, railway and urban transportation, metallurgy and mining, field operations, etc.
Single Channel Ethernet and Power Receiver over Single Coaxial Cable
Model | IPOC1KPT | |
Product Name | Single Channel Ethernet and Power Transmitter over Single Coaxial Cable | |
Power Supply | Power | Output:12V DC/1A |
No-Load Power | 1.5W(max) | |
RJ45 Interface | Ethernet Interface | RJ45 Interface |
Transmission Distance | 100m (max) over cat5e/6 | |
Standards | IEEE802.3 10BASE-T, IEEE802.3u 100BASE-TX, IEEE 802.3af | |
Physical speed | 100Mbps(bidirectional) | |
Coaxial Cable Interface | Coaxial Cable Interface | BNC connector |
Coaxial Cable Impedance | 75Ohm | |
Maximum Distance | 1000m(SYV75-5 Cable) | |
Transmission Distance | Distance | Bandwidth |
300m | 100Mbps | |
500m | 90Mbps | |
800m | 70Mbps | |
1000m | 55Mbps | |
LED Indicators | Green Light | Coaxial cable connecting indicator |
Red Light | Power indicator | |
Lightning Protection Grade | Network Port | Differential Mode:2KV Common Mode:4KV |
Device | contact discharge:3 grade air discharge: 3 grade | |
Mechanical | Dimensions(L*W*H) | 103*54*26mm |
Housing | Aluminum | |
Body Color | Black | |
Weight | 145g | |
Environmental | Operating Temperature | 0~55° C |
Storing Temperature | -25°~85°C | |
Relative Humidity | 0~95% (non-condensing) |
