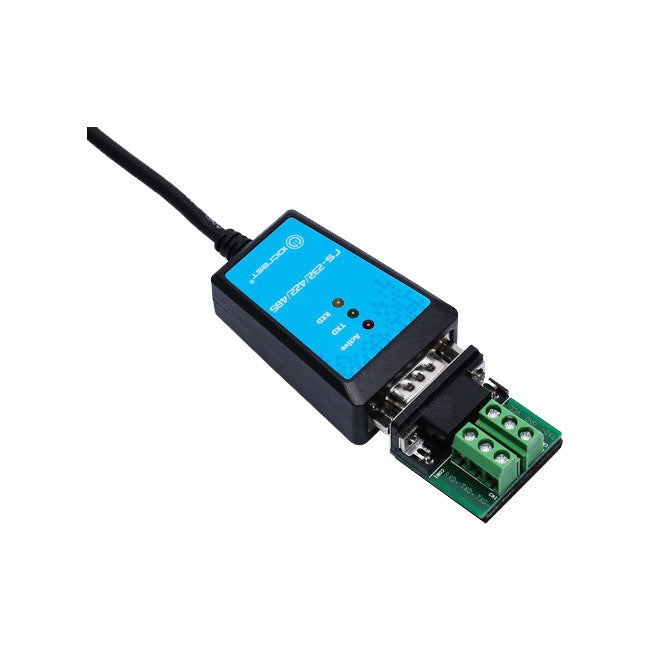

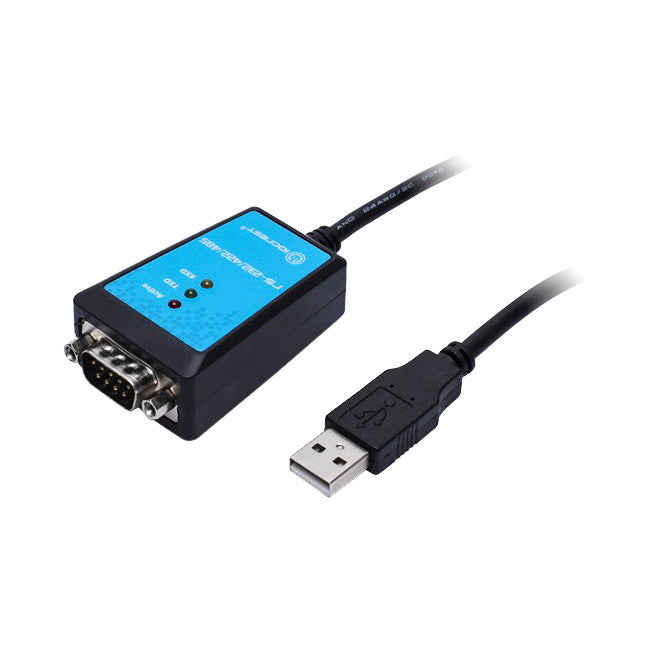

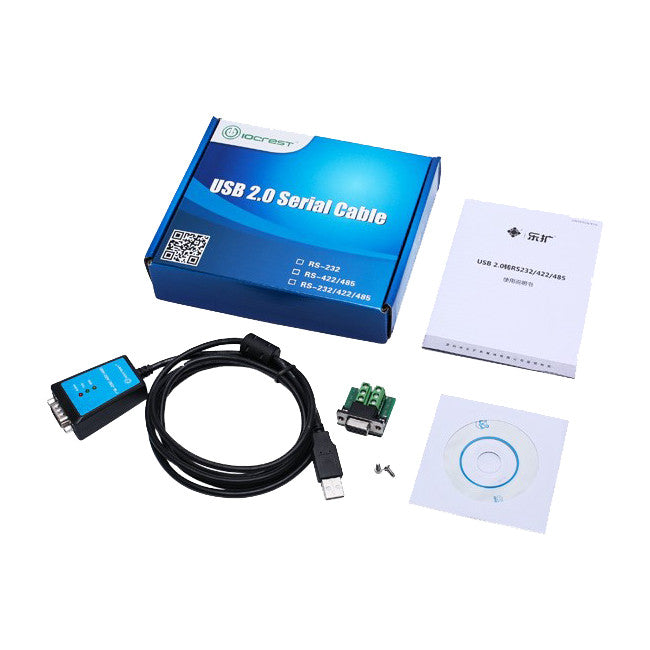

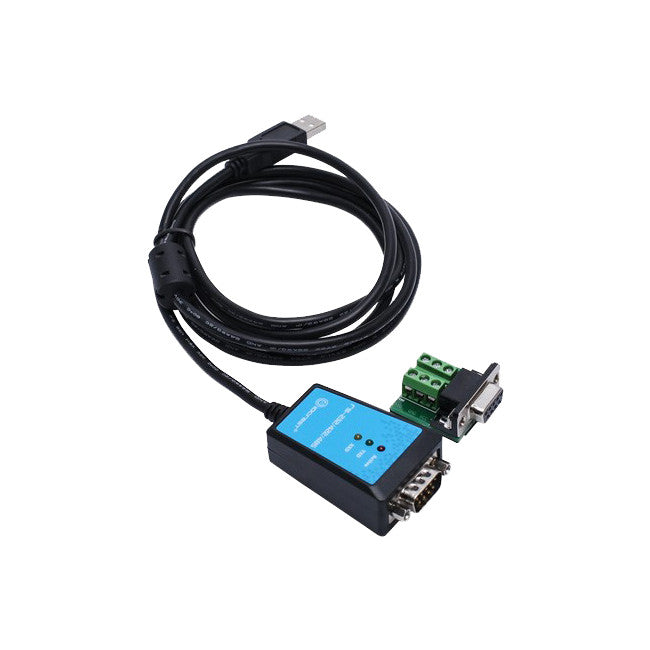

IOU234248 USB TO RS232 RS422 RS485 1.8M IOCREST IO-U234285

IOCrest USB2.0 TO RS232/422/485 (EXAR Chipset) – 1.8 meter

Features

• Standards: conforming to USBV1.0, 1.1 and 2.0
• USB 2.0 Compliant, Full-Speed  (12 Mbps)
• Support Bits per second Data transfer rates from 300 baud to 921600baud
• Supports USB suspend, resume and remote wake up operations
• 128 byte TX FIFO and 384 byte RX FIFO
• 400W surge protection and ±15KV ESD protection
• Signal indication: indicator lights for Power (PWR), Send (TXD) and Receive (RXD)
• MCU enable controls RS485 bidirectional data

Signal

• RS232:  DCD,RXD,TXD,DTR,GND,DSR,RTS,CTS,RI
• RS422:  TX - ,TX+, RX +,RX - GND
• RS485:  Data-, Data +
• FIFO: 128 byte TX
• FIFO: 384 byte RX
• Bits per second :50 bps ~ 921.6Kbps
• Data bits:7,8,9
• Stop bits:1,1.5,2
• Parity bit:Odd, even, mark, space, None
• Flow control: None,Xon / Xoff, Hardware
• Operating Temperature:-40°C to +85°C



System Requirements:

• Windows 2000, XP, Vista, 7, 8,8.1and 10
• Linux
• Mac

Applications

• USB to UART Cable
• POS Printer Terminal
• Networking System
• Industrial and Power Meter
• USB Bar Code Reader
• USB Digital Camera Interface
• USB Wireless/Wired Modem
