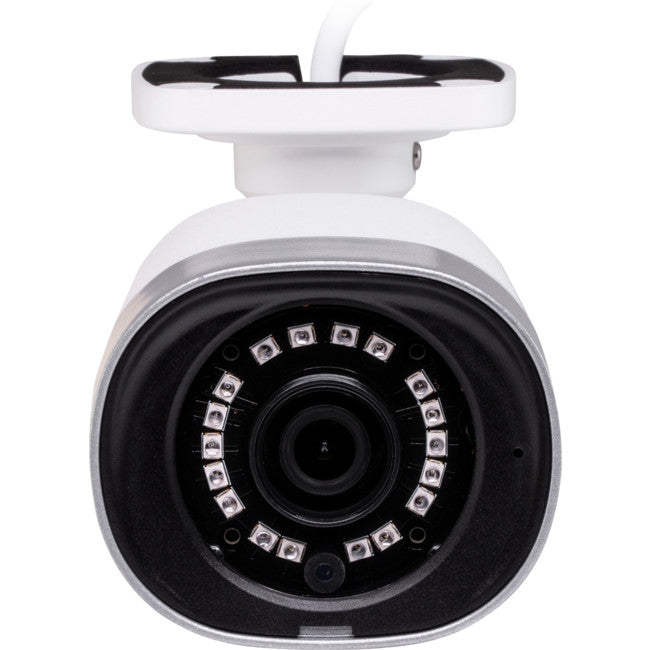

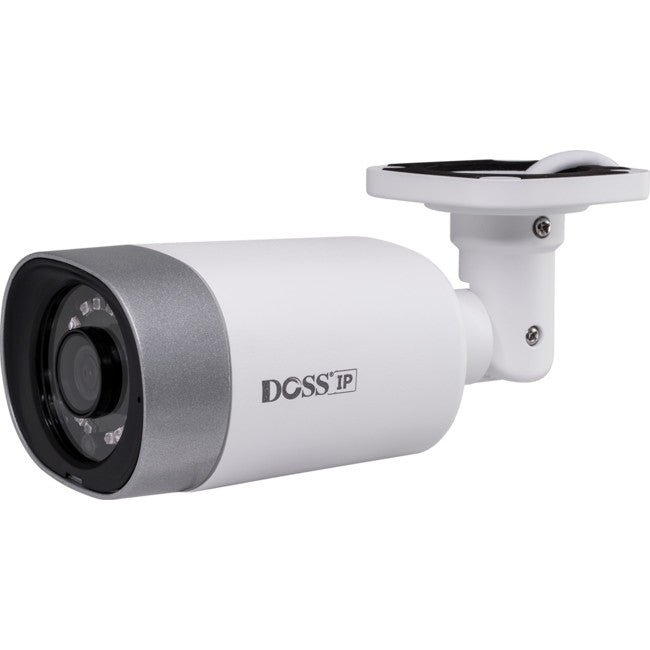

IN30IPW5M 5MP IP CAMERA IR30M 3.6MM 30M IR DOSS 43160609

IN30IPW5M 5MP IP CAMERA IR30M 3.6MM 30M IR DOSS 43160609

$90.95

Features

Up to 5MP@20fps and 4MP/3MP/2MP@25fps frame rate
HTML5 supported, no more ActiveX installation required, compatible with Chrome/Edge/Firefox/Safari internet explorer
Hikvision private protocol supported, plug and play with popular Hikvision NVRs
H.265/H.264 supported, saves bandwidth and storage space
1/2.7" Megapixels CMOS and 3.6mm fixed lens
Humanoid detection
IR-Cut (Infrared-cut) filters for producing accurate color images
IP66 rating
6x Normal IR Array Leds, IR distance up to 30-40m
DC12V or POE power options
Detection frame 5fps, detect 5 people at the same time
Support low bit rate and low latency
Support Smart IR to avoid Infrared over-exposure at night
Support ICR auto switch, realize D&N surveillance
Support 3D DNR and digital WDR
Support auto-electronic shutter to suit different surveillance environment
Support HTTPS transmission with password, default password 123456

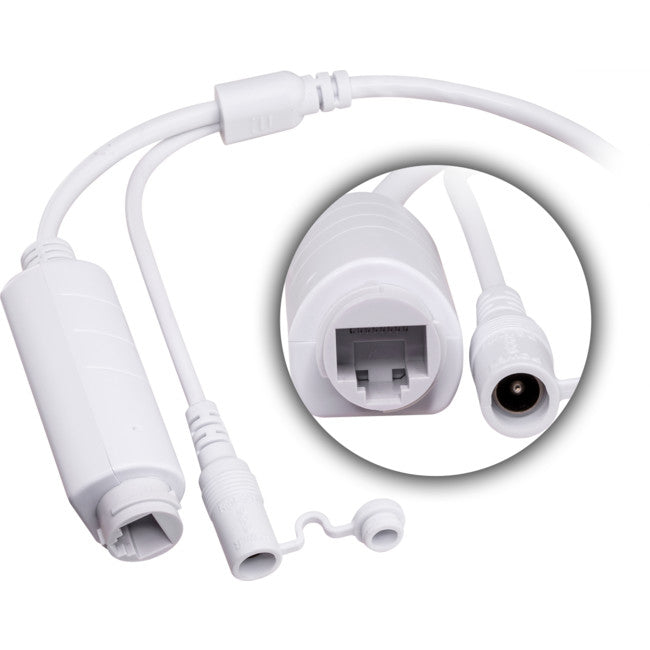

CONNECTIONS

[DC] 12V DC power input
[RJ45] Ethernet port

Specifications

Camera

Sensor

1/2.7" Megapixels CMOS

Lens

3.6mm lens

IR Distance

6x IR Array leds, IR distance up to 30-40 meters

D-WDR

D-WDR (off/low/middle/high)

IR Led Control

Auto/Manual/Off

DNR

Off/Low/Middle/High/Higher

Defog

Off/Low/Middle/High

Mirror

Off/ Horizontal Mirror/Vertical Mirror/180 degree flip

Image Setting

Brightness, Contrast,Sharpness,Saturation, Chroma

Humanoid Detection

Detection Quantity

≤5 people humanoid

Humanoid Size

Humanoid Pixel≥40X40

Detection Ratio

≥99%(meet above requirement)

Capture Speed

≤1s

Max Detection Frame

5fps/s

Fault Detection Ratio

≤2%

Detection Part

People with any posture including half body, head, hand, shoulder

Track People

Support

Detection Mode

Support static and dynamic humanoid detection

Detection method

Support visible light image detection, and near infrared image detection

Detection Area

Appointed area, default full-screen

Upload Method

Upload it under private protocol

Trigger Method

Video trigger

Audio & Video Encoding

Video Encode Standard

H.265/H.264

Encoding Feature

Main code stream: 5MP 2560x1920@20fps, 4MP 2560x1440@25fps, 3MP 2304x1296@25fps,

Sub-code stream:D1(720*576),VGA(640*360)

Video Code Rate

Fixed code rate,variable code rate (Main stream code:160Kbps-4000kbps)

Video Type

Composited stream/video stream

Network Function

Protocol

TCP/IP,UDP,HTTP,HTTPS,DHCP,RTSP,DDNS,NTP,PPPOE,UPNP,SMTP

Connection Protocol

ONVIF, SLINK, HIK

Preview Video Quantity

Up to 5 users web login

Security Mode

Authorized user name and password, HTTPS with password, AES connecting
with password, RTSP verification

Motion Detection

Set detection area, can set multi-level sensitivity

Privacy Mask Alarm

Support 1 area setting

Privacy Mask

Support 4 area privacy mask

Schedule Linkage

Capture, email

Equipment Anomaly
Inspection

Support network broken alarm, IP conflict alarm, illegal visiting alarm

Character Overlay(OSD)

Title,time and date overlay, multi-line OSD, OSD color is optional

Port

Network Port

RJ45 10M/100M network self-adjustable

General

Power Supply

DC12V /POE Option

Protection

IP66

Size

183.00(L)*60.00(H)mm

Working Temperature

-20°C ~ 50°C

Working Humidity

0%~90%
