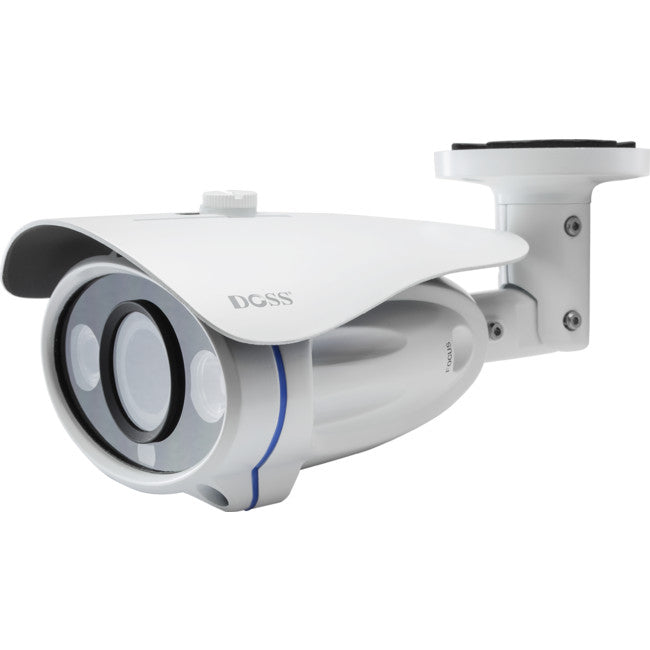

IN30AHDW2 BULLET 30M IR AHD WHITE CAMERA ANALOG HD2.8-12MM 1080P DOSS 6135BIHZ77

  • AHD high definition camera at 1080P resolution
  • Low illumination 1/2.9" SONY 2.43M CMOS sensor
  • 2.8-12mm lens
  • 20-30m IR distance
  • 30 x Ø5 leds
  • HD AHD,CHD,THD/1080P, analog 1280H, four in one output
  • AHD coaxial transmission distance up to 500m
  • AHD/ analog signal
  • D-WDR, 2D/ 3D NR, defog , CRR
  • Motion detection, Privacy zones, BLC and HLC
  • OSD Menu
  • White colour
{tab Specifications}

CAMERA



Sensor

1/2.9"SONY2.43MpixelsCMOS

Effectivepixels

1920*1080

HDAHDoutput

1080P

Resolution

1280H(CVBSinput)

Min.Illumination

0Lux(IRON)

SyncSystem

Internal

Lens

2.8-12 mmlens

ElectronicShutter

Auto/Manual(X30~1/50000)/FLK

S/NRate

≥50db(AGCOFF)

Videooutput

1.0Vp-pcompositevideooutput,75O

outputmodel

PAL/ NTSCadjustable

OSDmenu

Whitebalance

ATW/ AWC-SET/ INDOOR/ OUTDOOR/ MANUAL/ AWB

NR

2DNR/ 3DNR,OFF

Imageadjustable

Brightness,sharpness,AGC

DWDR

AUTO/ ON/OFF

BLC

BLC/HsbLC/OFF

AGC

ON/OFF/AUTO (1-15)



Privacymask

OFF/ON(4zone)

Motiondetection

OFF/ON(4zone)

Mirror

horizontal/vertical/HVmirror

Sens-up

OFF/ON (X30, X25, X20, X15, X10, X8, X6, X4, X2)

Lensshadingcompensation

OFF/ ON

DPC

Auto/Manual

Defog

OFF/Auto(EffectiveunderB/ Wmodel)

OSDmenu

Chinese,Englishetc12languages

Dual-output

HDAHD/analogCVBSoptional

General

Transmissiondistance

75 - 3/ 300m, 75 - 5/ 500m

IRdistance

20-30m(30 x Ø5IRled)

powersupply

DC12V ±10%

Power(max)

280mA ± 10mA (IRON)

OperatingTemperature

−20°C~55°C/0%-90%

Dimensions(mm)

66(W)*66(H)*166(L)mm

Weight/ PC(g)

400g

{tab FAQ}

Expecting AHD but only getting Composite?
Our AHD cameras come out of the box configured to output Composite (CVBS) to allow installers with test monitors to quickly align the camera. Once positioned correctly, you can set the camera to AHD output using the setting shortcuts below:

  • For CVBS output, holdtheOSDkeyleft for 3seconds
  • For AHDoutput, holdtheOSDkeyrightfor 3seconds
  • To toggle between PAL & NTSC, holdtheOSDkeydown for 3seconds
