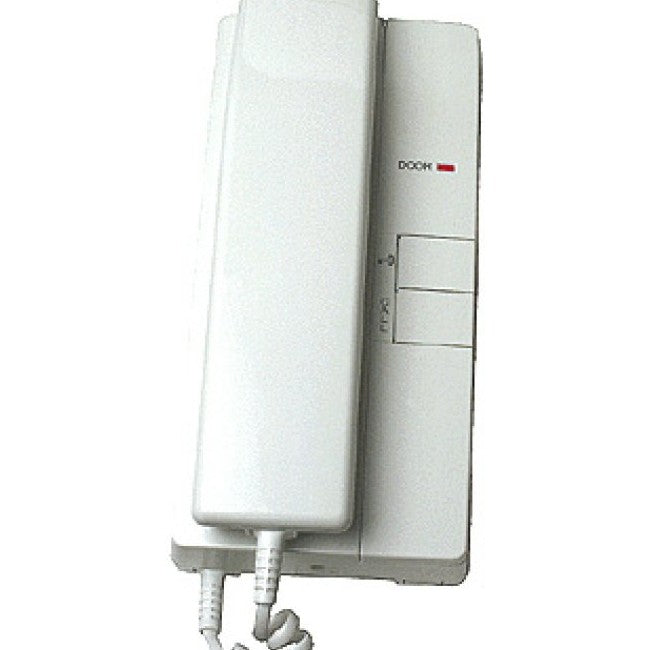

IEH1CD CHIME HANDSET INTERCOM SLAVE UNIT - AIPHONE AIPHONE IEH-1CD

Online Stock Only.

For "click and collect" orders at Lynbrook store the shipping fee will still apply on collection for items not stocked at the Lynbrook store.

The Aiphone IE series handset intercom is suitable for home and business use. There are five different models of handsets master stations to suit different applications

The IEH-1CD audio handset sub master station for use withthe IE1GDU and IE2ADU master stations; max of two per system.

FEATURES:

  • Two and Four tone electronic chime
  • Chime volume adjustment on handsets
  • Answer the door from any room station
  • All Call internal calling between handsets
  • Door release button (additional hardware required)
  • AC or DC power source ( 12-16V AC or 12-24V DC )
  • Wiring::- 2 non polarized to door station, plus 2 to door release. and 6 wires in loop between rooms Distance 150 mtrs. ( 0.65mm - 22AWG), 360mtrs ( 1.0mm )
  • Optional chime extension
  • Can be used with IE or IF door stations
  • Size: 100 x 210 x 68mm ( WHD)
