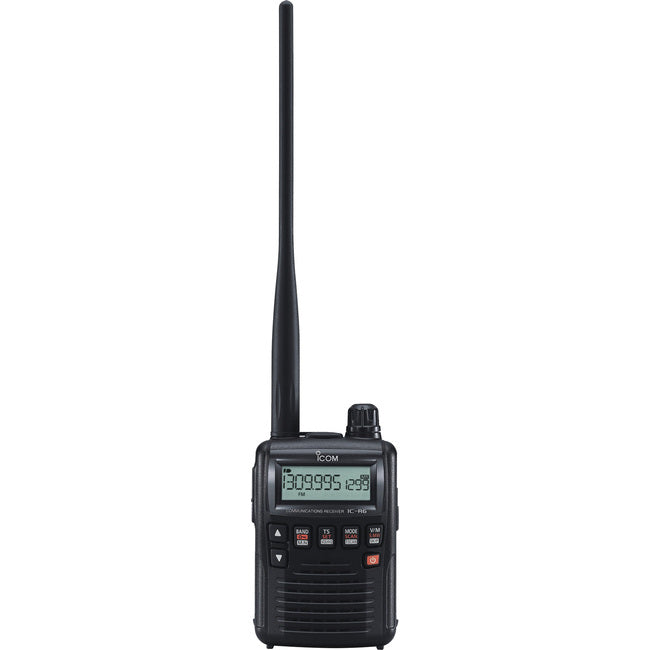

ICR6 MINIATURE WIDEBAND RECEIVER ICOM ICOM IC-R6

ICR6 MINIATURE WIDEBAND RECEIVER ICOM ICOM IC-R6

Online Stock Only.

For "click and collect" orders at Lynbrook store the shipping fee will still apply on collection for items not stocked at the Lynbrook store.

IC-R6 Miniature Wideband Communications Receiver - Icom

AM FM & WFM Receiver: Listen to it All!

The 100 Ch/Sec Wideband Signal “Search Machine”

  • Full frequency coverage (0.100 MHz to 1309.995 MHz)
  • High Speed Scan (100 Ch per Second)
  • FM WFM AM Receive Modes
  • Internal bar-antenna (For superior AM reception)
  • 1300 Memory Channels (22 Memory Banks)
  • Louder, Clearer Audio Output (BTL Circuits)
  • 15 Hours of Continuous Receive (With External Speaker)
  • VSC (Voice Squelch Control)
  • Auto Digital Squelch
  • Multiple scan functions
  • Auto Memory Write Scan (Detects & Stores Frequencies)
  • Tone (CTCSS decode) & DTCS decode
  • Required 2x AA Alkaline or Ni-MH cells
  • External DC input (for desktop use & Ni-MH charging)
  • Optional PC programming (Enter frequencies with ease)
  • 2 Year Warranty on radio

SPECIFICATIONS

  • Frequency coverage : 0.100–1309.995MHz* (* Cellular blocked in the U.S.A. version.)
    France 0.100–29.995, 50.200–51.200, 87.500–107.995, 144–146, 430–440, 1240–1300MHz
  • Mode : AM, FM, WFM
  • No. of memory channels : 1300 regular, 50 scan edges and 200 auto memory write
  • Usable temperature range :–10˚C to +60˚C ; +14˚F to +140˚F
  • Frequency stability : ±1.0ppm (at 25˚C)
  • Tuning steps : 5, 6.25, 8.33*, 9*, 10, 12.5, 15,20, 25, 30, 50, 100, 125, 200kHz (* Selectable depending on operating bands.)
  • Battery requirement : 2×R6 (AA) size Ni-MH or alkaline cells (not inc.)
  • External power supply : 4.5V DC rated (4.5–6.3V with BC-196SA/SD, CP-18A/E - not inc.)
  • Current drain Rated audio : 130mA typ. (Ext. SP, backlight off) (at 3.0V DC) Standby 65mA typ.
  • Power save 30mA typ. (1:4 duty)
  • Antenna impedance : 50Ω (SMA)
  • Dimensions (W×H×D) : 58×86×29.8 mm; (Projections not included) 29⁄32×33⁄8×13⁄16 in
  • Weight (approx.) : 200g; 7.1oz
