Overview

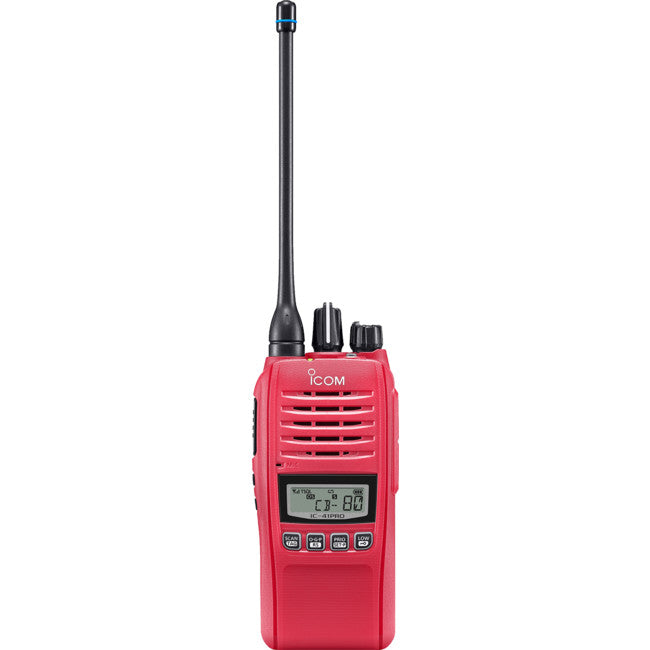

IC41PRO-RED IP67 80CH UHF HAND HELD RADIO - ICOM
The Waterproof Handheld UHF CB
- 80 Channel UHF CB (*)
- Waterproof and dustproof (IP67)
- 5 year warranty on radio
- 18hr typ. operating time with BP280
- Simple operation
- New rotary Channel Selector/Squelch control
- Voice announcement of channel number
- VOX capability with optional headset options
- Receive only Channels (**) ? up to 35
- Unique repeater scan plus open, group and priority scan
- In-range indicator (ATS)
- Output power 5 Watts (low power 1 Watt)
- Built-in CTCSS/DCS (providing silent stand-by)
- Selective Calling (SELCALL)
- Duplex operation, providing repeater access
- Compact and rugged construction (based on a commercial product)
- Private Channels from 450-520 MHz available for commercial users (dealer programmable), requires FASC72U antenna (frequency between 490-520MHz)
- CS-41PRO User softwareavailable for customisation of operation (requires OPC-478UCcable)
*80 Channel UHF CB, 61-63 not present, reserved for future use Other outstanding features - Smart Ring and Automatic Transponder acknowledges if other Icom CB transceivers received your call or are within range
- Pocket beep function audibly alerts when you receive signals from specified stations.
- Optional HM-168LWP waterproof speaker-microphone available
- Power save function
- Radio stun function
- Low battery indicator and alert tone
- Auto power off function
- Monitor function
- PTT hold function
- Key lock function
- Auto power off
- RX frequency setting**
- Roger beep
- Adjustable squelch level
Specifications
General
- Frequency range 476.4250 MHz to 477.4125 MHz AUS CB 450 MHz to 520 MHz Private/Receive Only
- Number of conventional channels: 128 ch
- Type of emission: W: 16K0F3E (25.0kHz) AUS CB N: 8K50F3E (12.5kHz) AUS CB
- Antenna impedance: 50 ohms
- Input impedance (MIC): 2.2k ohms
- Output impedance (audio): 8 ohms
- Intermediate frequency: 1st 46.35 MHz, 2nd 450 kHz
- Operating temperature range: ? 30 ? to + 60 ?
- Power supply voltage: 7.5 V DC
- Current drain (approx.) Receive stand-by 80 mA Receive max.audio 300 mA (INT SP) Transmit Hi (5W) 1.7 A AUS CB
- Dimensions: W 52.2 x H 111.8 x D 30.3 mm (with BP-280)
- Weight: 270 grams (with BP-280) approx. Transmitter
- Rated output power 5 W ? Modulation: Variable reactance frequency modulation
- Maximum permissible deviation ±2.5 kHz (N) ±4.0 kHz (M) ±5.0 kHz (W)
- Frequency error: ±2.5 ppm
- Spurious emissions: 70 dB min
- Adjacent channel power: 60 dB min 69 dB typ. (N) 70 dB min 74 dB typ. (W)
- Audio harmonic distortion: 1.0% typ. @ AF 1 kHz 40 % Deviation (W,M) 1.5% typ. @ AF 1 kHz 40 % Deviation (N)
- FM Hum and Noise 34 dB min 40 dB typ. (N) (Without CCITT FILTER) 40 dB min 46 dB typ. (W) 40 dB min 48 dB typ. (N) 43 dB min 51 dB typ. (M) 45 dB min 53 dB typ. (W)
- Limiting characteristic of modulator: 60 % ~ 100 % ofmax. deviation
Included Accessories
- Antenna FA-SC72U
- Belt clip MB-133
- Battery charger BC-213
- AC adaptor BC-123SV
- Battery pack BP-280
