HL18GF30M 30M ACTIVE FIBRE OPTIC HDMI 18GBPS CABLE HDMI2.0 PRO2

Online Stock Only.

For "click and collect" orders at Lynbrook store the shipping fee will still apply on collection for items not stocked at the Lynbrook store.

{tab Features}

Overview

Active Optical Cable (AOC) is a cabling technology that accepts the same electrical inputs as a traditional copper cable, but uses optical fibre between the connectors to extend HDMI signals with zero lossor latency. Our hybrid cable design consists of optical fibres and copper wires. The high-speed TMDS signals are transmitted through the optical multimode fibres, while the low frequency control signals are transmitted through the copper wires. The Pro2 HL18GF rangeof active optical leads give you a distance of up to 200m without a drop of signal quality or the requirement of a separate power supply.

Features

  • Meets all HDMI2.0 specification requirements which include:
    • High Dynamic Range (HDR) video
    • Bandwidth up to 18Gbps
    • 4K@50/60 (2160p) - 4 times the clarity of 1080p video resolution!
    • Up to 32 audio channels for a multi-dimensional immersive audio experience
    • Up to 1536kHz audio sample frequency for the highest audio fidelity
    • Simultaneous delivery of dual video streams to multiple users on the same screen
    • Simultaneous delivery of multi-stream audio to multiple users (Up to 4)
    • Support for the wide angle theatrical 21:9 video aspect ratio
    • Dynamic synchronization of video and audio streams
    • CEC extensions provide more expanded command and control of consumer electronics devices through a single control point
  • EMI/RF free for clear signal transmission
  • Hybrid construction - multimode fibre for high-speed TMDS, copper for low frequency control signals
  • Active Optical Cable (AOC)

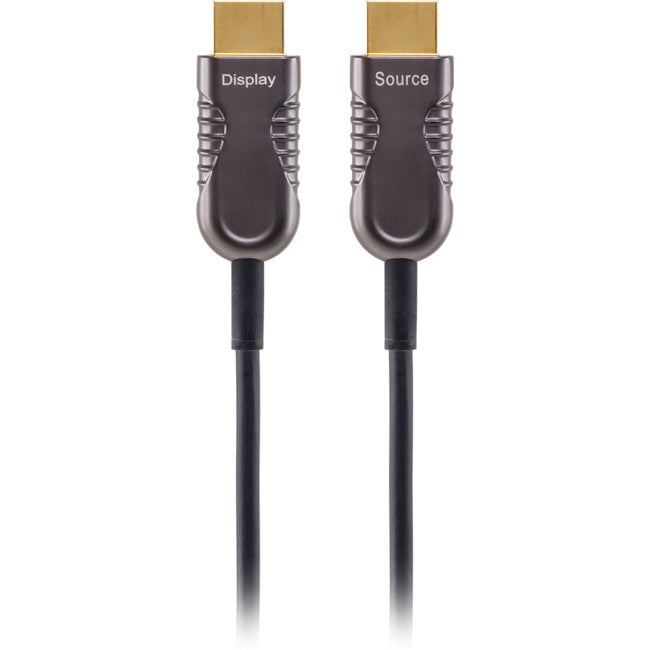

    Active cables generally feature a uni-directional design. The Pro2 HL18GF series feature a Display (for TV, monitors etc) and Source (DVD, media, Blu-ray player etc.) label on each connector end.
  • Available lengths: 20m, 30m, 50m, 70m, 100m, 150m, 200m
{tab Specifications}

HDMI version
HDMI 1.4b and 2.0
Data Rate 18Gbps
Video Format 4K/3D/1080p/720p 4K@60Hz
Additional Features HDCP/EDID/CEC/DDC/Audio
Maximum length 200 metre MMF
Operating Temperature 0 to 70 degrees
Supply Voltage 5.0 V
{/tabs}
