$242.00

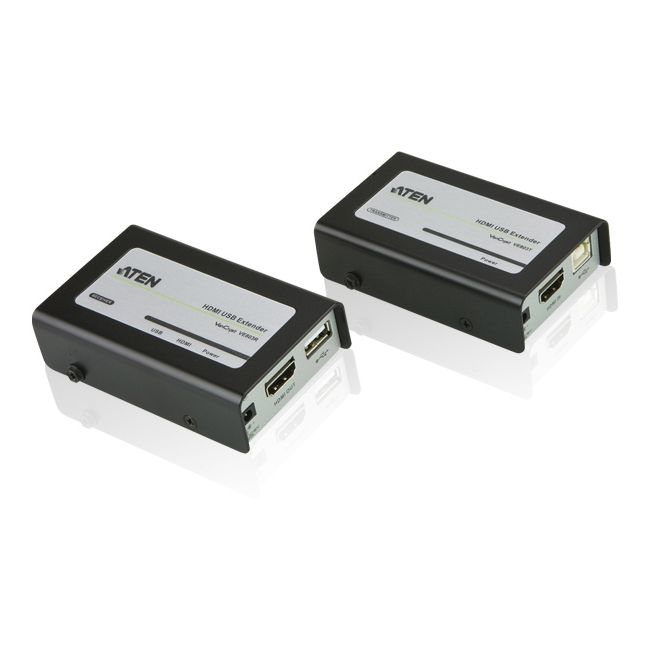

The VE803 HDMI USB Extender extends an HDMI signal up to 60 meters from the HDMI source using two Cat 5e cables. Itis capable of sending 1080i signals up to 60 meters and 1080p signals up to 40 meters.
The VE803 is equipped with USB connectors which allow youto extend any USB device between the units. The USB feature also provides support for touch panel control, allowing you to control the local HDMI source device from the remote display, or control the remote display through the local unit.
The VE803 is ideal for transportation centers, medical facilities, shopping malls or anywhere touch panel controlor a kiosk is required. For flexibility and convenience, the VE803 local unit can be powered via the USB cable when connected to an appropriate source device. The VE803 is HDCPcompliant, providing an easy and ideal HDMI extender solution for any application.
We recommend the use of our DOSS TWIN CAT5E cable. It is insulated in a Black PVC Jacket and contains 2x CAT5E cables.
This is great for dual CAT5 HDMI Extenders as one cableis easier to install than two, and unique colouring allows easy identification of data lines.
Function | VE803T | VE803R | ||
Connectors | HDMI In | 1 x HDMI Type A Female (Black) | N/A | |
HDMI Out | N/A | 1 x HDMI Type A Female (Black) | ||
USB | 1 x USB Type B Female (White) | 1 x USB Type A Female(White) | ||

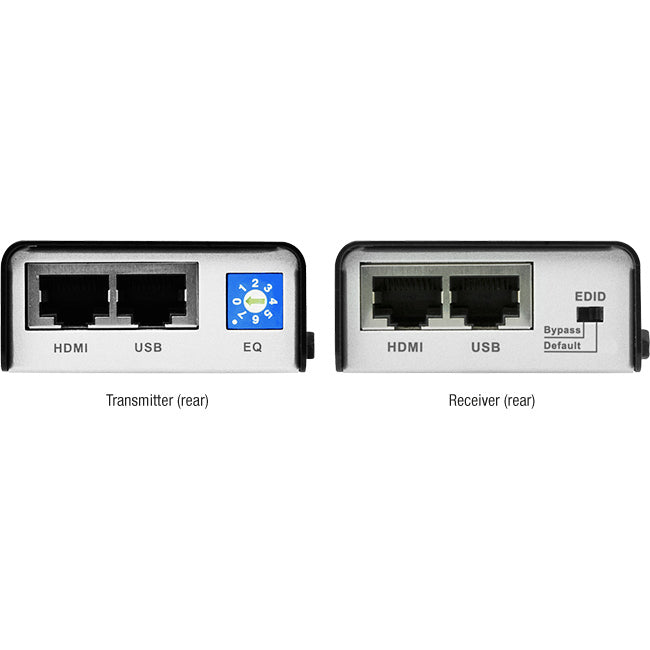

HDMI/USB Port * | 2 x RJ-45 Female (Silver) | |||
Power | 1 x DC Jack | |||
Switches | EQ Compensation | N/A | 1 x 8 position switch | |
EDID Selection | 1 x slide switch | N/A | ||
LEDs | Power | 1 (Green) | 1 (Green) | |
HDMI | N/A | 1 (Green) | ||
USB | N/A | 1 (Green) | ||
Video | 1080p @ 60Hz, at 40m 1080i @ 60Hz, at 60m | |||
Power Consumption | DC5V, 1W | DC5V, 3.9W | ||
Environment | Operating Temp. | 0 - 50°C | ||
Storage Temp. | -20 - 60°C | |||
Humidity | 0 - 80% RH, Non-condensing | |||
Physical Properties | Housing | Metal | ||
Weight | 0.16 kg | |||
Dimensions (L x W x H) | 7.16 x 3.16 x 2.30 cm |
