HDMIMX88V2 8X8 4K HDMI MATRIX HDMI 2.0 PRO2 SX-MX11

$1,595.00

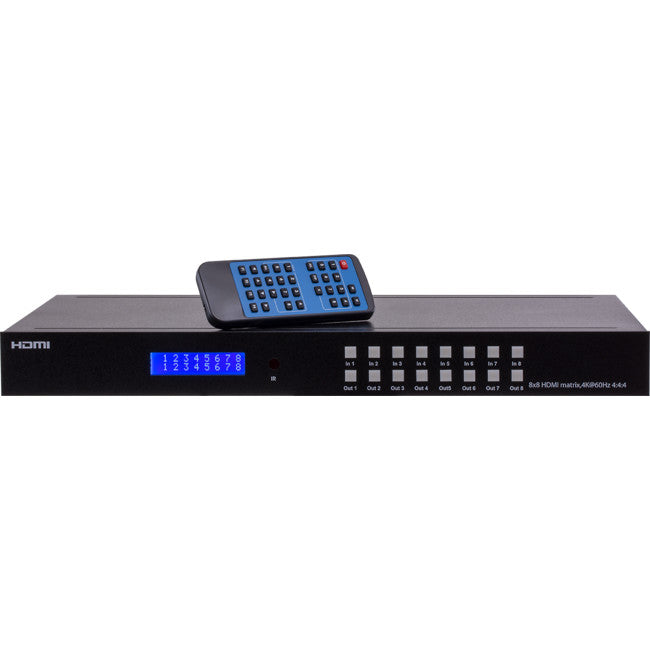

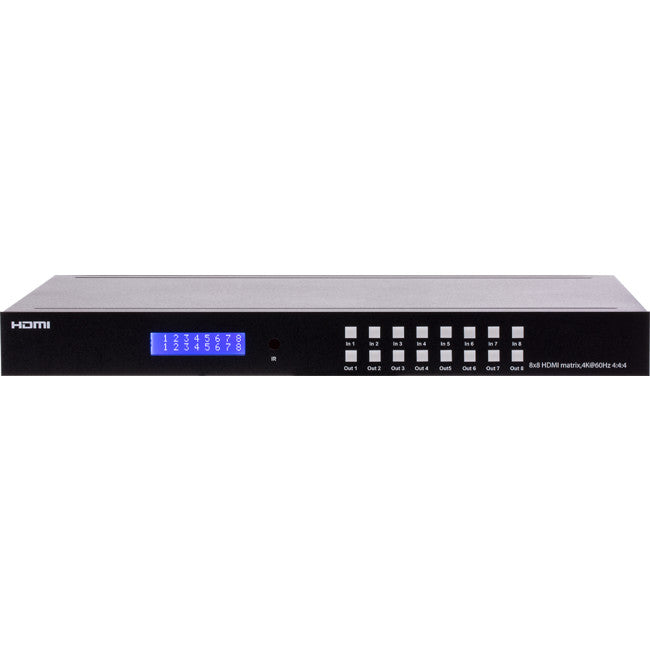

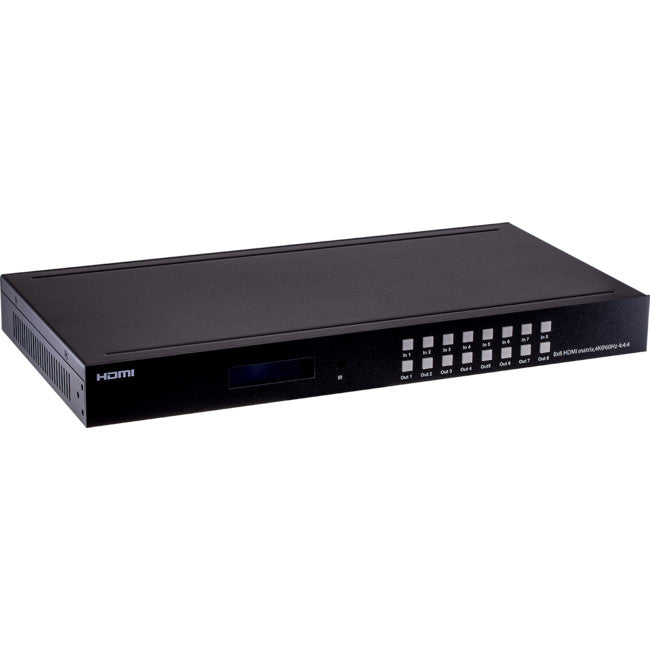

HDMIMX88V2 is a HDMI 8x8 matrix that supports HDMI2.0. Itcan take up to 8 HDMI inputs and distributes them to 8 individual HDMI outputs.

The latest October 2021 firmware improved two features, contact us if you have different firmware version.

Renaming the inputs and outputs (7 letters and numbers limit).
Simplify the output charts, only shows the outputs inuse, for example, if only use 4 outputs of the matrix, it will only display 4 outputs.

Application diagram

{tab Specifications}

Bandwidth	18 Gbps
Resolution	480p@60hz,576P@50hz,720P@60hz, 1080P@24hz,1080P@50hz,1080P@60hz,4K@24hz,4K@30hz, 4K@60hz YUV4:2:0, 4K@ 60hz YUV4:4:4

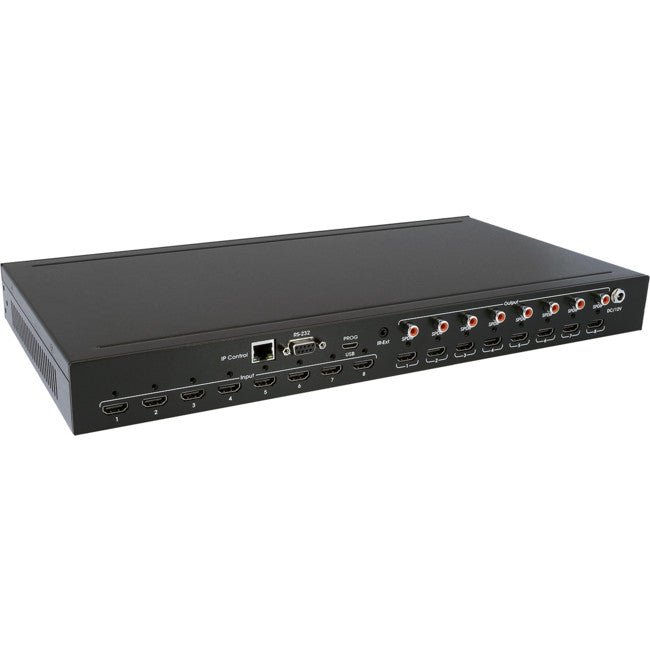

Video Input Connectors	8xHDMI Type A, 19-pin socket
Video Output Connectors	8xHDMI Type A, 19-pin socket
RS-232 serial port	DB9 socket
Ethernet port (IP control)	RJ45 socket

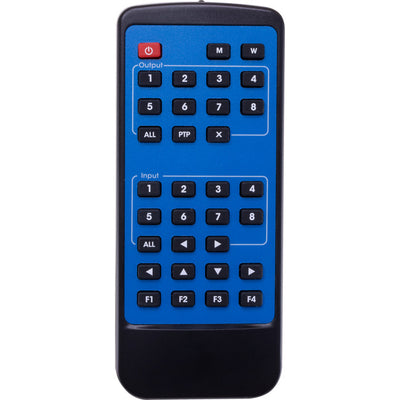

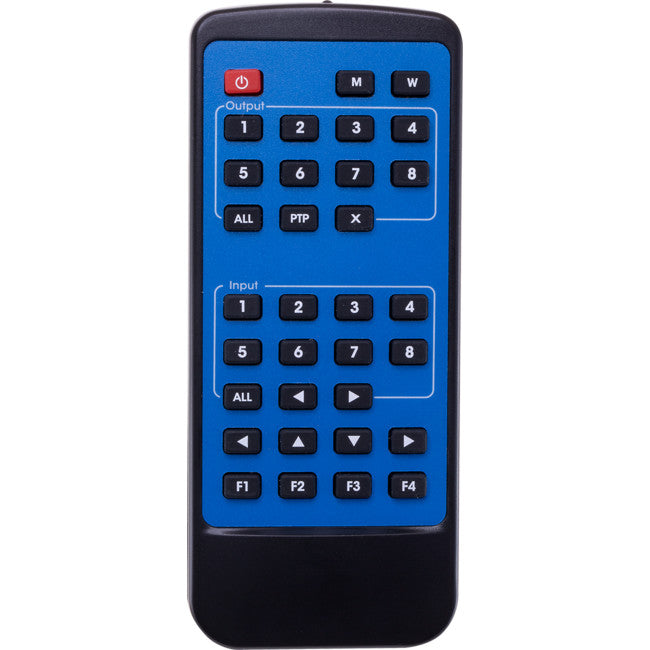

IR Ext port	1x3.5mm stereo jack
Rack-Mountable	1U Rack ears included
Dimensions	440(L) x 220(W) x 44.5(H)mm
Net Weight	2.8kg
Operating Temperature	-4°F to 140°F (-20°C to 60°C)
Storage Temperature	-40°F to 158°F (-40°C to 70°C)
Power consumption	19W(Max)

Q: How to upgrade the firmware? A: The firmware is upgradeable via the web login, not RS232 connection, refer to the image below: Q: How to reset the HDMIMX88V2? A: There are two ways to reset the HDMIMX88V2: Way 1: Connect the unit via RS232 COM port, run PC tool software, supplied in the CD disc, unit can be reset under system config if the connection is successful. Way 2: From the front panel buttons:

Q: What is the default IP address of the HDMIMX88V2? A: The unit is default DHCP OFF and the IP address is 192.168.1.168. Connect the matrix to the network, and accessthe unit directly if the subnet is the same, 192.168.1.xxx. Or set the DHCP ON and access the unit from the new IP address obtained from the router.

Q: How to Turn-ON/OFF DHCP from the front panel?
A: Instructions:

Q: How to find the IP address of the HDMIMX88V2 from thefront panel?
A: Instructions:

Q: How to find out EDID information of all inputs? A: Press "Input6" on front panel for 3 seconds, press and hold"Input5" to exit.
