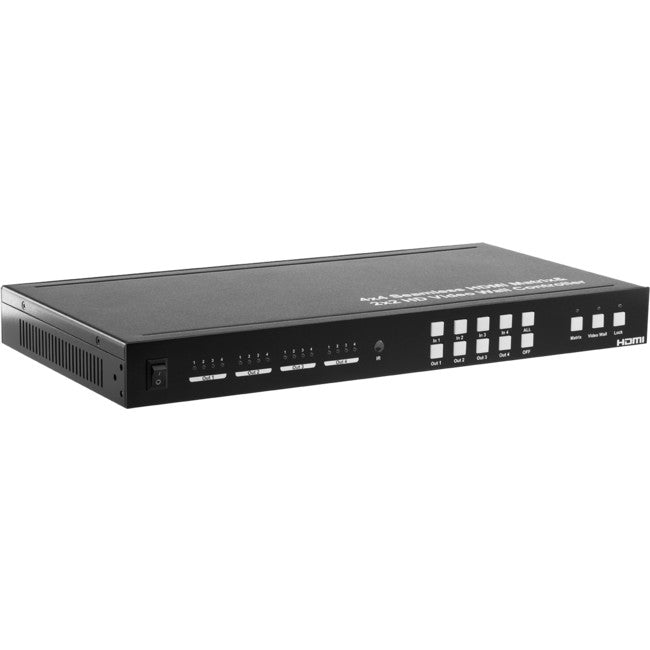

HDMIMX4422 4X4 4-IN 4-OUT HDMI MATRIX 2X2 VIDEO WALL RS232 IP PRO2 SMX44

HDMIMX4422 offers solutions for digital entertainment center, HDTV retail and show site, HDTV, STB, DVD and projector factory, noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.

Features

• Any one of the 4 sources to any one of the 4 displays
• Seamless switching ensures no switching delay and pictures loss during transitions, the switching speed is less than 1 second.
• Support 2x2 video wall mode.
• Any one of the four outputs can be turned off independently.
• Support high definiton resolutions, including: 1080p@60Hz@36 b/pixels, 1080i, 720p and other standard video formats.

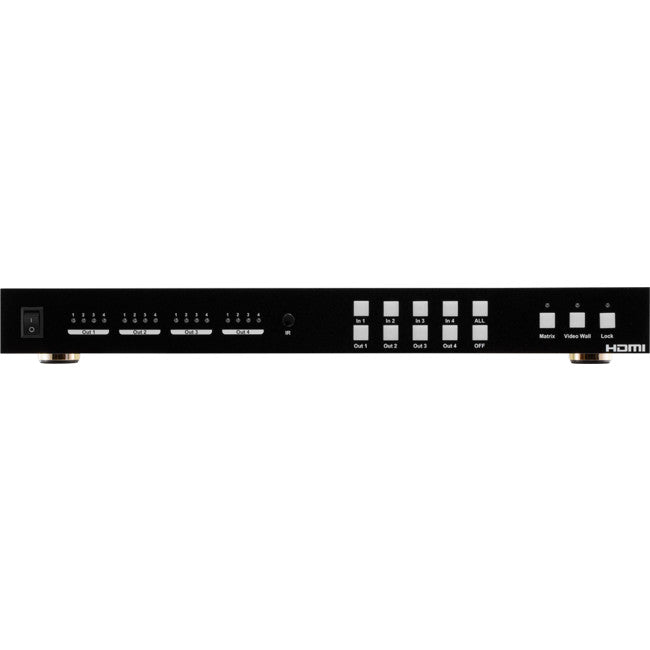

• With panel button, Remote Control, RS232 Control, IP Control to select the source.
• 1U rack design ,easy installment.

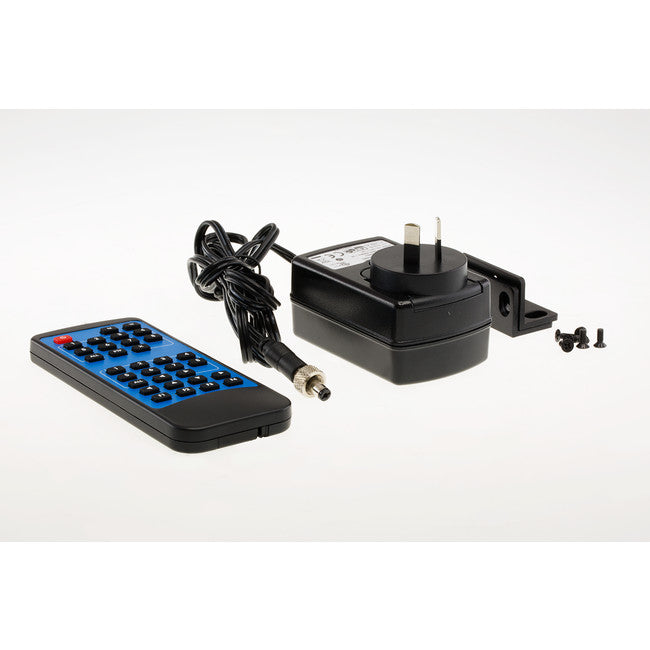

• DC 12V 3A power supply (Included)

Wiring Diagram

Specifications

Operating Temperature Range	0 to +35°C
Operating Humidity Range	5 to 90 % RH (no condensation)
Input Video Signal	0.5-1.0 volts p-p
Input DDC Signal	5 volts p-p (TTL)
Video Format Supported	DTV/HDTV: 1080P/1080i/720P/ 576P/480P/576i/480i
Audio Format Supported	LPCM

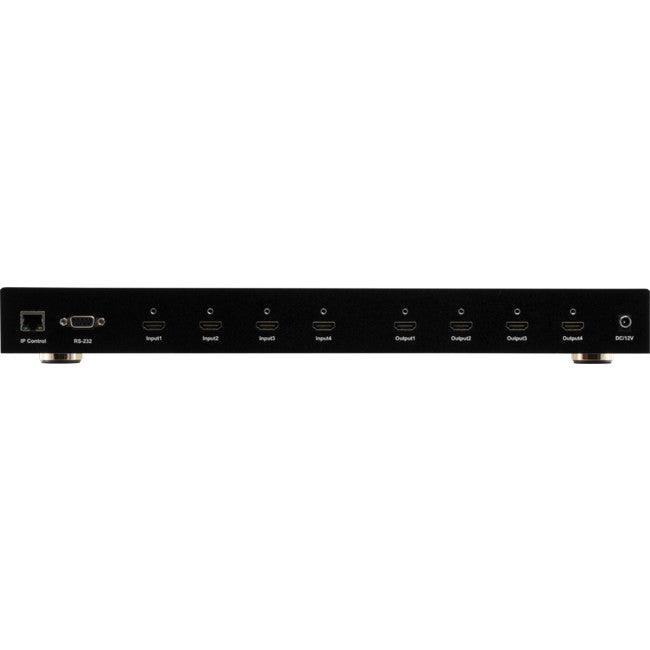

Input ports	4xHDMI(standard Type A connector)
Output ports	4xHDMI(standard Type A connector)
Matrix mode	4x4 Seamless switching
Video wall mode	2x2 video wall
Power consumption	24watts(Maximun)
Dimension (mm)	L438*W220*H44 mm
Weight	2800g
