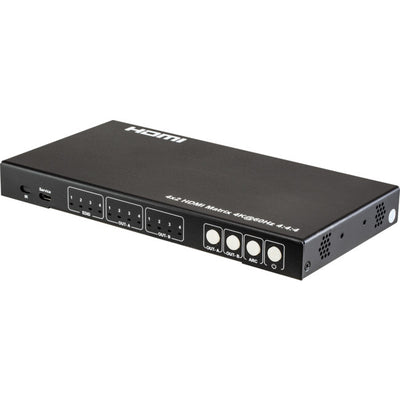

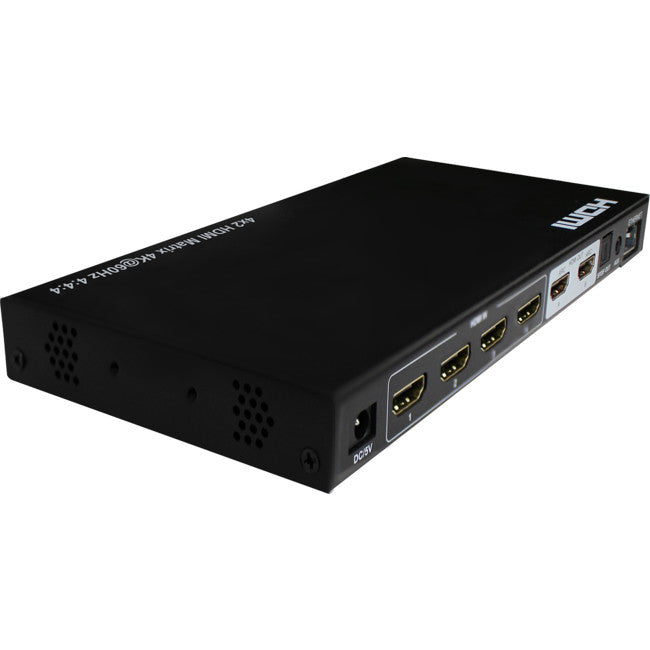

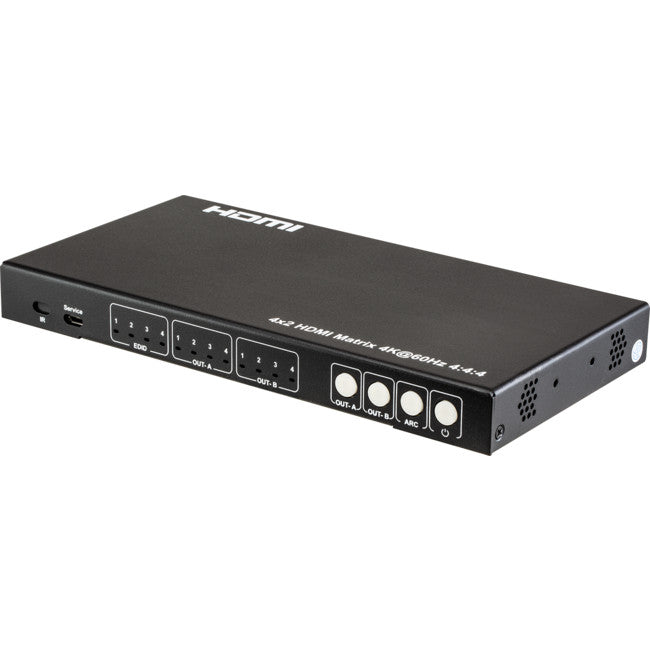

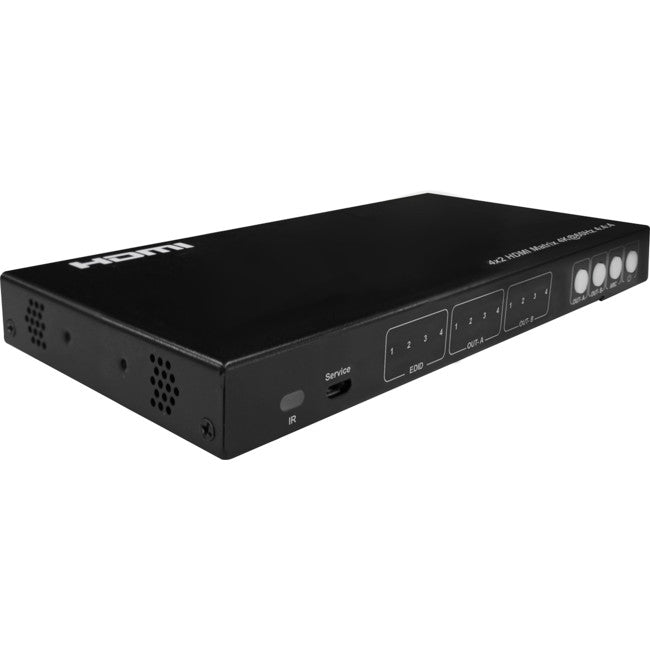

18G HDMI 4X2 MATRIX SWITCHER WITH ARC
Features
- Bandwidth up to 18 Gbps
- HDMI 2.0 version(Support 4K@60Hz YUV4:4:4)

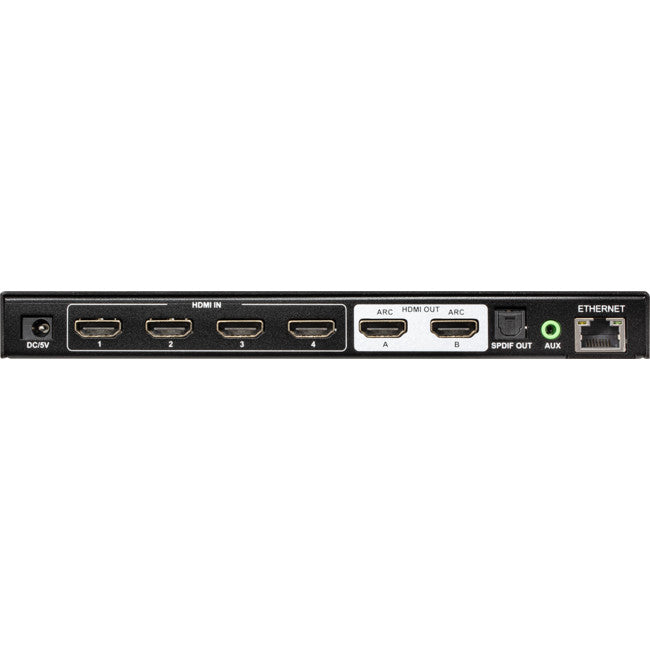

- 4×2 HDMI Matrix,4×HDMI Inputs,2×HDMI Outputs
- SPDIF out/Analog audio 2.0 extraction
- HDCP 2.2/HDCP1.4 compliant
- LPCM7.1/24-bit/96khz, Dolby Atmos and DTS-X
- Support Dolby and HDR10
- Support 3D,deep color max 12bit
- Support CEC and ARC on both outputs
- EDID management to have mixed EDID or copy EDID
- Use as a downscaler to downscale from 4K60Hz to 1080p
- Micro USB port for future firmware upgrade

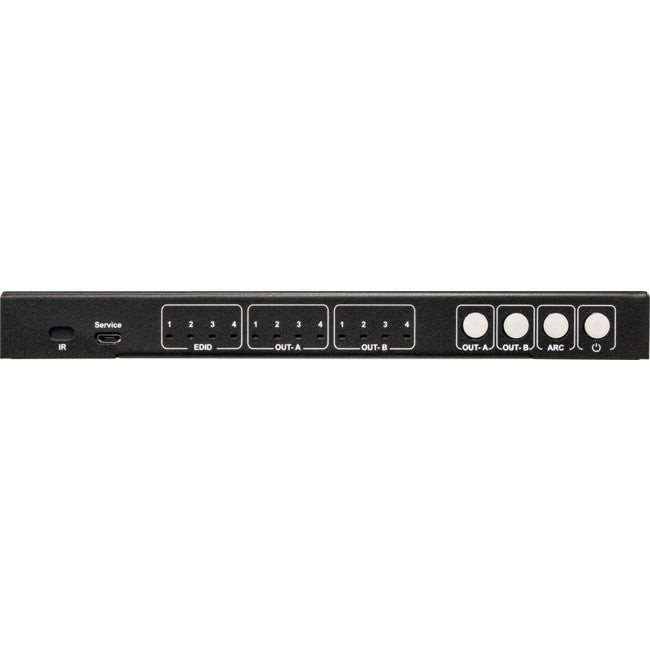

- Control the unit with the front panel button, IR remote control, web control, or third-party platform
- The command list is available to integrate with the third-party platform
Specifications
- Bandwidth: 18 Gbps
- Resolution: 480p@60hz,576P@50hz,720P@60hz, 1080P@24hz,1080P@50hz,1080P@60hz,4K@24hz,4K@30hz,
4K@60hz YUV4:2:0, 4K@ 60hz YUV4:4:4 - Operating Temperature Range: 0 to +40°C (32 to +104°F)
- Operating Humidity Range: 5 to 90 % RH (no condensation)
- Input Video Signal: 0.5-1.0 volts p-p
- Input DDC Signal: 5 volts p-p (TTL)
- Analog audio Ext port: 1x3.5mm audio jack
- Output Video: HDMI 2.0+HDCP1.4/2.2
- Output Audio: Support HD digital audio format,SPDIF out/Analog audio 2.0 out, LPCM7.1/24-bit/96khz,Dolby Atmos and DTS-X
- Dimensions(WxHxD): L210 X W104.3 X H20.8mm
- Net Weight: 0.66kg
- Power consumption: 2.5W(Max)
- Power supply: 5V 1A
What is in the box
- HDMIMX42ARCV2 x 1pc
- 5V 1A DC power supply x 1pc
- IR Remote control x 1pc
- CD Disc x 1pc
