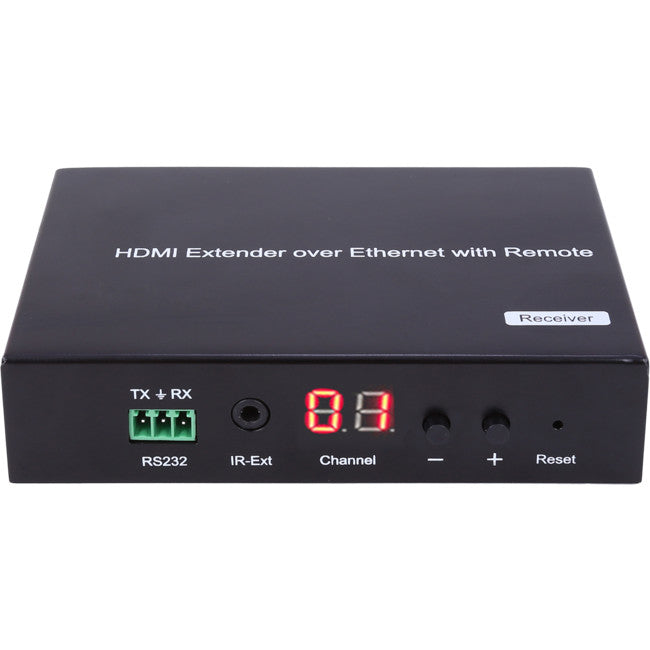

HDMIIPPRORX SPARE RECEIVER FOR HDMIIPPRO PRO2 SX-EX36-RX

$229.00

Spare receiver for HDMIIPPRO

Considering extending your HDMI source over single Cat5E/Cat6 cables?

It supports 120m over a single CAT5e/6 cable at point to point. It also supports point to many and many to many transmission over ethernet switch.

A great HDMI over IP solution for meeting room, classroomand home etc.

The PRO version supports remote control and can be powered by POE.

Using H.264 compression encoding, Supports resolution up to 1080p@60Hz

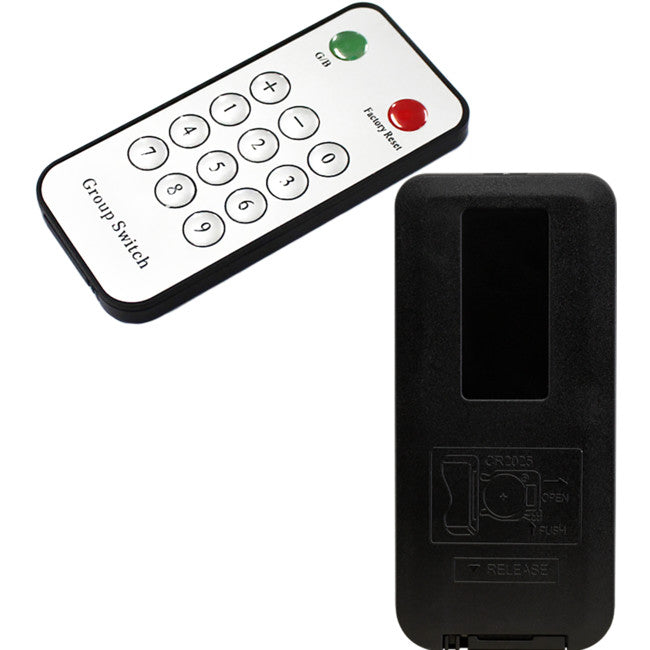

With IR remote for source selection. LED front panel showing group ID.
Complies with TCP/IP protocol, streaming bit rate is up to 15Mbps
Supports LPCM audio format
Supports DHCP for easy IP address assigning
By pass 2 way UART/RS232(Up to 115200), remote controlcan be used for selecting 8 group baud rate.
Supports one to one, one to many, many to one, many tomany modes.
Can be powered by either power supply or POE
HDCP compliant
Supports PC tool control

I am having trouble changing IP address: Please click here for more information
What type of internet switches are ideal to be used withthis product?: To ensure the best performance ofHDMIIPPRO, a managedgigabit switch with IGMP(Internet group management protocol)snooping function is recommanded for many to many applications. In settings, make sure the IGMP is set to ON, and VLAN is set to OFF.
I can't get IR to work with Foxtel: There are two types of IR receivers that come in the box. Make sure you use the rectangular shaped one, as shown in the following image.
