HDMIIPECOV2 HDMI OVER IP DISTRIBUTION MJPEG COMPRESSION PRO2 SX-EX22

HDMIIPECOV2 HDMI OVER IP DISTRIBUTION MJPEG COMPRESSION PRO2 SX-EX22

$361.05

Overview

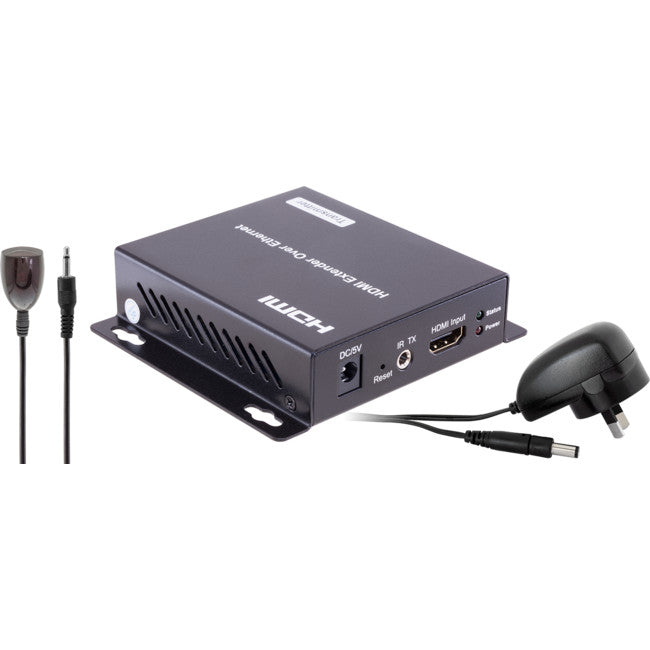

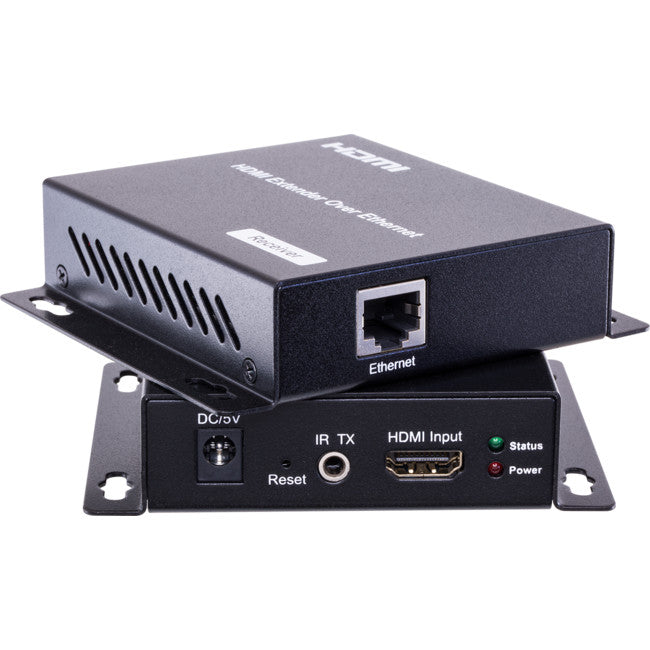

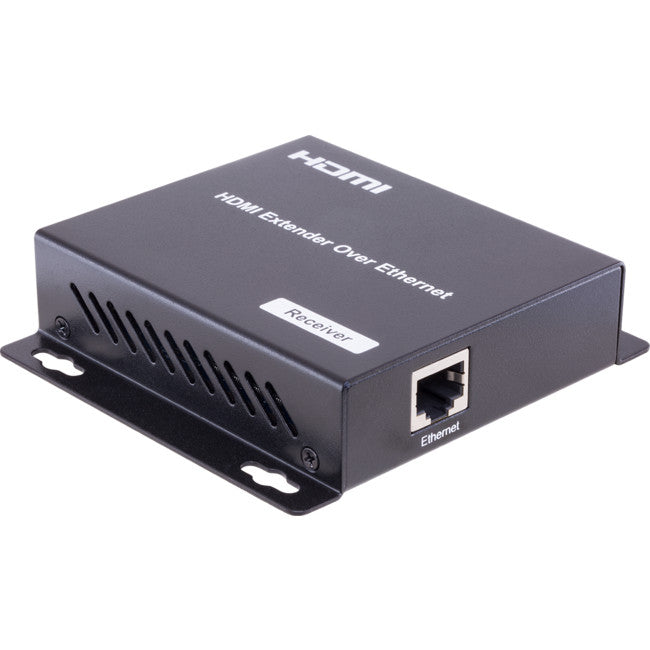

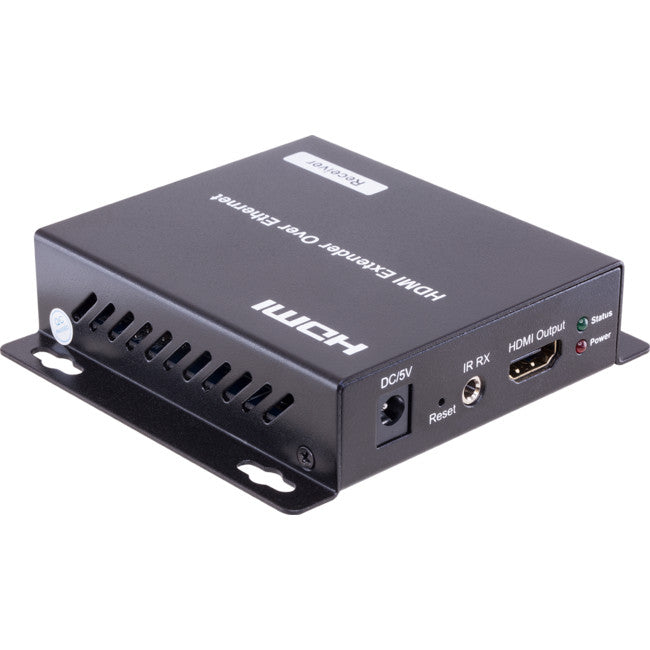

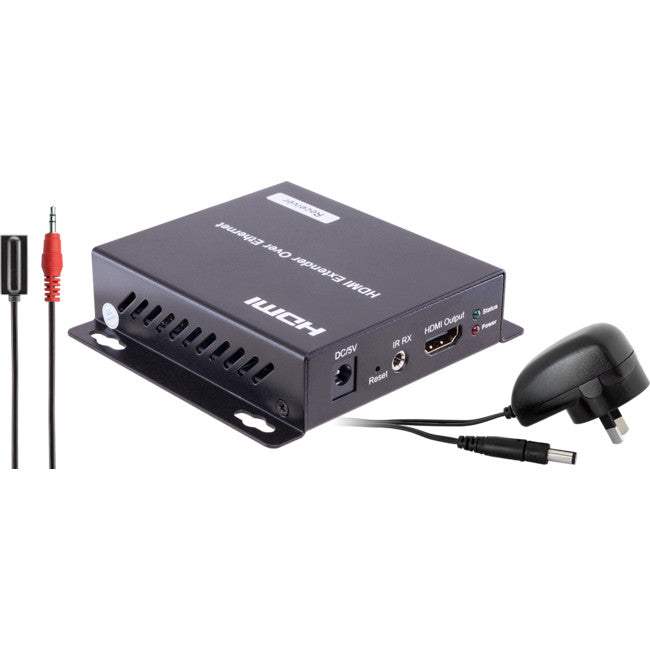

HDMIIPECOV2 PRO2 HDMI OVER IP DISTRIBUTION

HDMIIPECOV2 is a budget option for extending HDMI source over network, using MJPEG compression. It supports one to one and one to many operation.

Extends 1080p HDMI signals up to 120m over single UTP CAT5e/CAT6 cable
Supports point to point, point to many
MJPEG compression
HDCP compliant
With wideband IR (38-56kHz) control
Supports TCP/IP protocol
With mounting ears
Default TX IP: 192.168.168.55
Default RX IP: 192.168.168.56

Applications

Specifications

Operating Temperature Range	−5°C to 35°C
Operating Humidity Range	5 to 90% RH (No condensation)
Input Video Signal	0.5-1.0V P-P
Input DDC Signal	5V p-p (TTL)
Supported Video Format	DTV/HDTV: 480i/480p/576i/576p/720p/1080i/1080p
Transmission Distance	120m: 1080p 8-bit over CAT5e/CAT6 24AWG solid cable
Data Bandwidth	10-90Mbps
Power Consumption	TX: 3W RX: 3W
Dimension (L×W×H)	103.5mm × 93.5mm × 24.6mm
IR Frequency	38K-56KHz
Net Weight	TX: 220g RX: 220g

FAQ

Is the HDMIIPECOV2 suitable for many-to-many applications?
Yes, however it is not as easy to setup nor is it recommended for reasons explained below:

The HDMIIPECOV2 uses MJPEG compression which requires very high bandwidth and is likely to saturate your network bandwidth when used in a many-to-many scenario. For this type of application we strongly recommend the Pro2
HDMIIPPRO which uses H.264 compression that utilises substantially lower bandwidth when compared to MJPEG. The other issue with many-to-many applications is that it requires you have a managed network switch, and set up different VLANs for each transmitter used and then change the receiver IP address accordingly. For example, you set VLAN 1 for Transmitter 1 (eg. Foxtel), VLAN2 for Transmitter 2 (eg. DVD player), when you want the Receiver 1 to pick up the Foxtel, you change the Receiver 1 IP address to the same subnet as VLAN 1 and if you want to display the DVD player, you would change it to the same subnet as VLAN2.
