$549.00
Online Stock Only.
For "click and collect" orders at Lynbrook store the shipping fee will still apply on collection for items not stocked at the Lynbrook store.
This product requires a pair of transceiver module to work. Please choose from related product at the bottom of the page. Compatible module part numbers are as follows. SM:SFP10G10KSMLC & MM: SFP10G300MMLC. Please note the modules used must be 10G modules, not 1G modules, even with the 1080P signal.

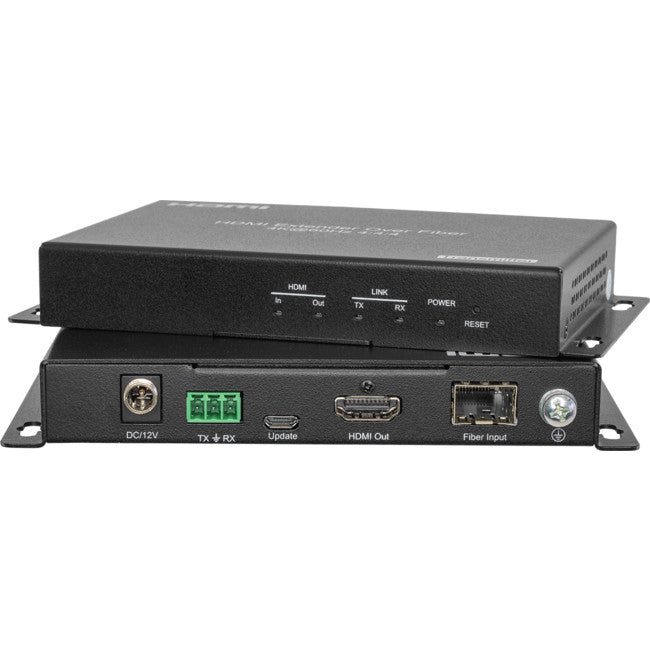

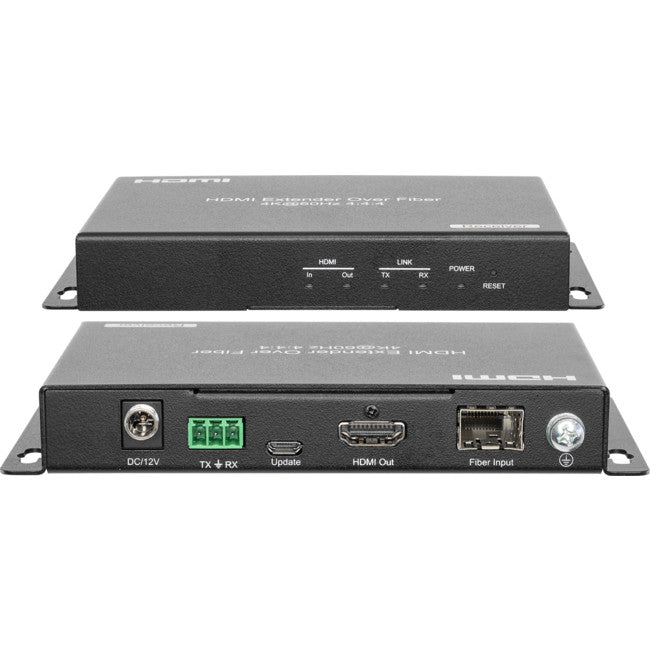

The HDMIFIB4K is a long-range HDMI video extender kit that uses LC fibre optic cable to extend video/audio from anHDMI-equipped device to a remote display up to 60km away(60km transceiver fibre module required). The extender supports up to 4K resolution with 18Gps bandwidth includes both the transmitter and receiver base only.
SPECIFICATIONS
|
Operating Temperature Range | -5 to +40(+23 to +95) |
Operating Humidity Range | 5 to 90%RH (No Condensation) |
Video Input(Transmitter) | 1xHDMI Type A, 19-pin, female |
Video Output(Receiver) | 1xHDMI Type A, 19-pin, female |
Link(Transmitter/ Receiver) | 1m~60Km single |
Module type required? | SFP Type, Single / Multi mode ,Single / Duplex fibre (optional) |
Video Format | 4K@60Hz YUV 4:4:4, 4K@60Hz, 1080P, 720P, 576P, 480P/ |
Audio Format | Support LPCM 7.1, Dolby®True&n bsp;HD, DTS-HD Master Audio™ . |
HDCP | HDCP 1.4 in, HDCP 1.4 out |
Power consumption | Transmitter: 3watts(Maximum) |
Dimension (L×W×H) | Transmitter: 96*100*21mm |
Net Weight | 475g (Pair) |

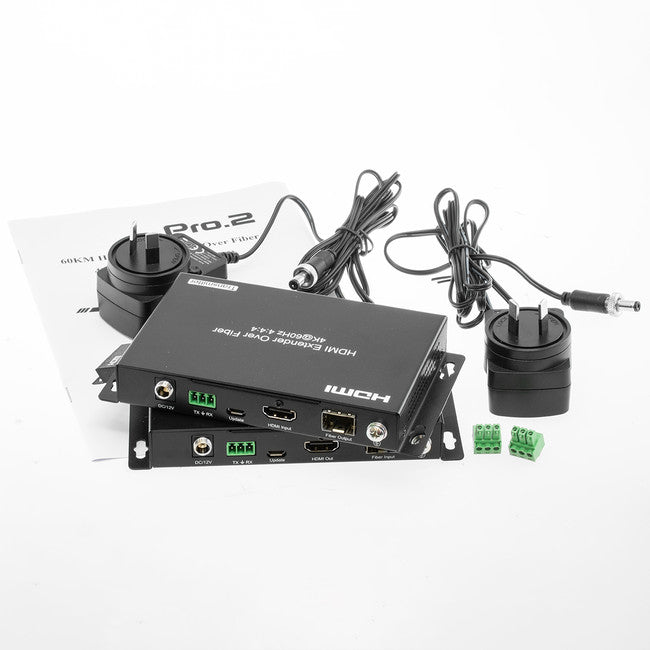

PACKING CONTENTS
1). Main Unit. HDMI Extender Over Fibre
2). DC12V 1A Power Supply X2
3). Operating Instructions
*The Unit without Fibre Modules
FAQ
Q: Unit supports 18G bandwidth, using the fibre module only 10G?
A: Unit converts 18G signal to 10G using CSC (color space conversion) to transmit from the source to the receiver, itthen converts back to 18G at the receiver.
