$255.00

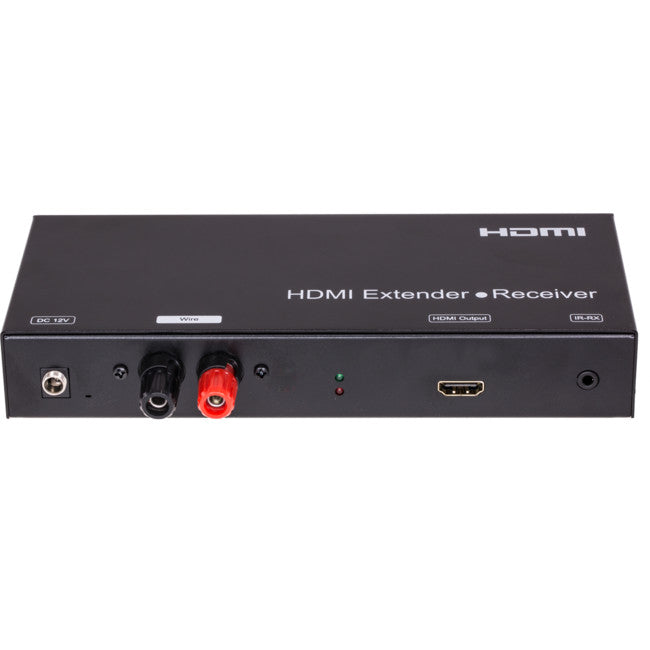

Spare receiver for HDMIAW
Note: This product can not be connected to 220V/380V highvoltage.
| Operating Temperature Range | -5 to 35°C |
| Operating Humidity Range | 5 to 90%RH (No condensation) |
| Supported Audio Format | LPCM audio format |
| Transmission Distance | 3800m via 2-conductor cable (Ideally 12AWG-19AWG) |
| Supported Video Format | DTV/HDTV: 480i/ 480p/ 576i/ 576p/ 720p/ 1080i/ 1080p |
| VESA: 800x600, 1024x768, 1280x768, 1280x960, 1280x1024 | |
| 1680x1050, 1920x1080, 1280x720, 1360x768, 1400x1050,1280x1024 | |
| Connections on TX | 1x HDMI input, 1x HDMI loop out, IR-TX socket, 2x terminal post, power supply socket |
| Connections on RX | 2x terminal post, 1x HDMI output, IR-RX socket, power supply socket |
| Power Consumption | TX: 6.5 Watts, RX: 5.5 Watts |
| Dimension | 206.2(L)x 110(W)x 33(H)mm |
| IR Frequency | 38K- 56KHz |
| Net Weight | TX: 545g, RX:548g |
