{tab Features}
Please ensure you do not establish a direct connection between the transmitter and the receiver using an active AC power outlet. Doing so will damage your unit and will be dangerous!

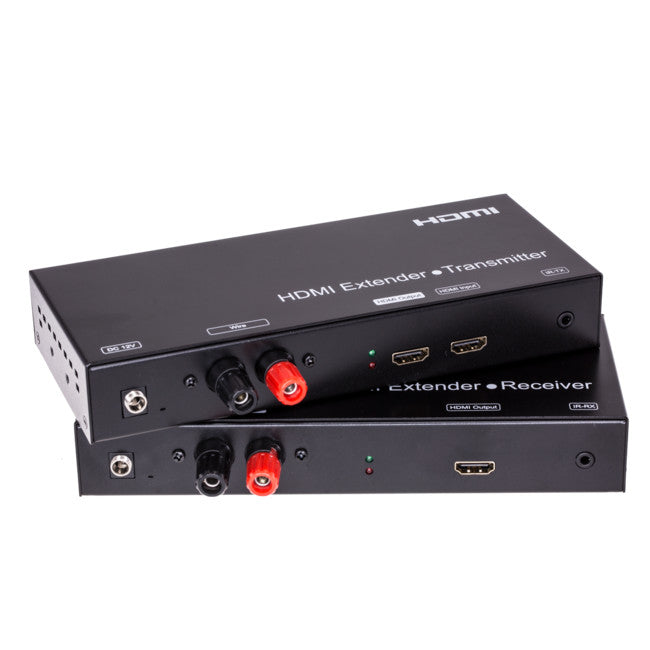

HDMIAW can extend your HDMI source over any 2-conductor cable including twisted cable, telephone cable or CAT5/6 etc. The transmitter compresses/converts the HDMI signals into a serial data stream, which is then encoded for transmission over any copper media. It is an ideal HDMI extender over your existing cable.
Note: This product can not be connected to 220V/380V highvoltage.
The below configuration has been tested, distance may be various depends on the quality of the cable, however cascading more than 3 receivers is not recommended.
{tab Specifications}
| Operating Temperature Range | -5 to 35°C |
| Operating Humidity Range | 5 to 90%RH (No condensation) |
| Compression Rate | H.264 compression |
| Bit Rate | 15Mbps |
| Latency | From TX to RX is about 200ms to 450ms |
| Supported Audio Format | LPCM audio format |
| Transmission Distance | 3800m via 2-conductor cable; NOTE: This distance is tested on 18AWG UL2468, stranded 2 core cable. Longer distances could be achieved with greater quality cables |
| Supported Video Format | DTV/HDTV: 480i/ 480p/ 576i/ 576p/ 720p/ 1080i/ 1080p |
| VESA: 800x600, 1024x768, 1280x768, 1280x960, 1280x1024 | |
| 1680x1050, 1920x1080, 1280x720, 1360x768, 1400x1050,1280x1024 | |
| Connections on TX | 1x HDMI input, 1x HDMI loop out, IR-TX socket, 2x terminal post, power supply socket |
| Connections on RX | 2x terminal post, 1x HDMI output, IR-RX socket, power supply socket |
| Power Consumption | TX: 6.5 Watts, RX: 5.5 Watts |
| Dimension | 206.2(L)x 110(W)x 33(H)mm |
| IR Frequency | 38K- 56KHz |
| Net Weight | TX: 545g, RX:548g |
