HDMI4S18G 4-WAY 18GBPS HDMI SWITCHER AUDIO EXTRACTION HDMI2.0 HDR PRO2 SW-07

HDMI4S18G 4-WAY 18GBPS HDMI SWITCHER AUDIO EXTRACTION HDMI2.0 HDR PRO2 SW-07

Overview

Easily switch between four different HDMI sources with the push of a button or using the included remote. With the HDMI4S18G you are getting the latest and greatest in what HDMI has to offer: 4K, 18GBPS bandwidth, HDMI version 2.0, HDR10, and ARC. To top it all off, the HDMI4S18G is also an excellent HDMI audio extractor, allowing you to output audio only in either two-channel stereo or 5.1ch surround sound. With ARC, you can grab the audio signal from the TV and output it using the S/PDIF or RCA outputs.

Features

  • Switch inputs via the front panel or remote control
  • Extract stereo audio via the front RCA outputs or 5.1ch via the front S/PDIF toslink port
  • Audio mixing support via 3.5mm auxiliary input and S/PDIF toslink input (bypass mode)
  • Upto 18GBPS bandwidth
  • HDMI 2.0 version (Support 4K@60Hz YUV4:4:4)
  • Simultaneous audio output: Stereo and toslink
  • 12 bits per channel (36 bit all channels) deep colour
  • HDCP 2.2 (backwards compatible)
  • HDR10 support
  • Uncompressed LPCM 7.1 audio
  • DTS-HD Master and Dolby True HD
  • Audio Return Channel (ARC)

Connections

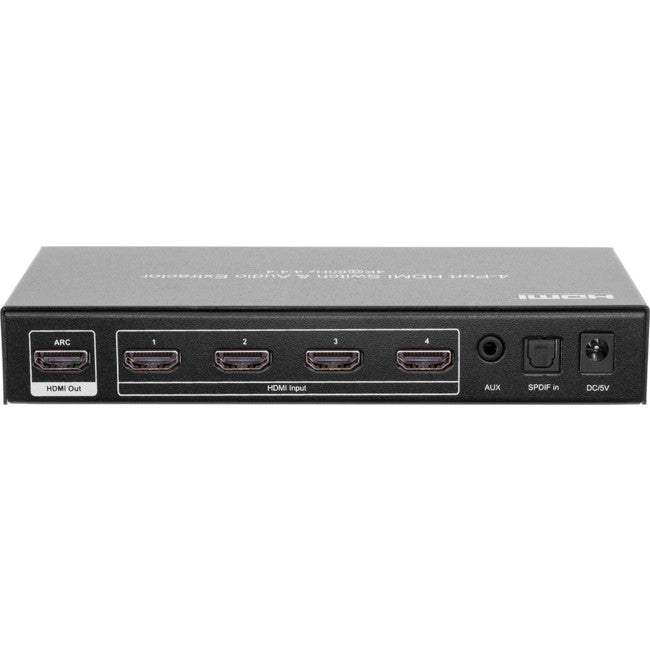

  • Back Panel
    • 4x HDMI inputs
    • 1x (ARC) HDMI output
    • 3.5mm AUX input
    • S/PDIF optical input

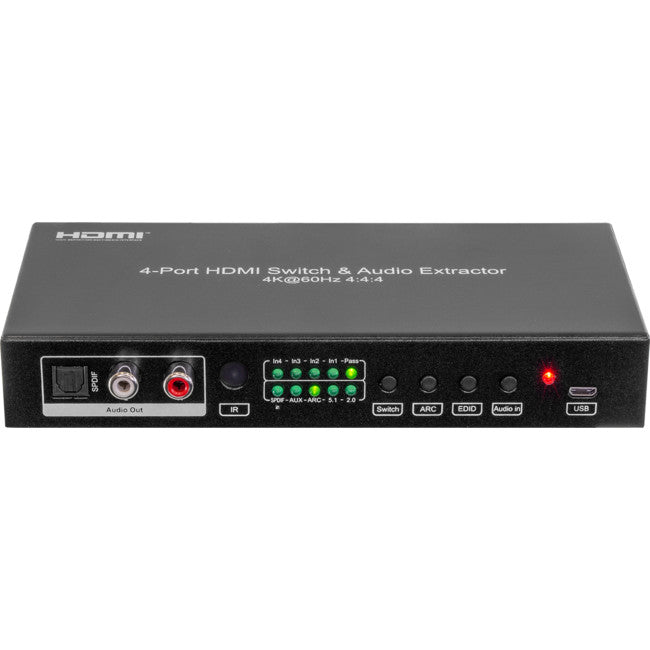

  • Front Panel
    • S/PDIF optical output
    • 2x stereo RCA output
    • Micro USB input for firmware upgrades
    • LED indicators for:
      Input, Pass-through, S/PDIF in, AUX, ARC, 5.1 audio, 2.0 audio
    • Push-buttons for:
      Source switching (1-4), ARC, EDID (2ch-5.1ch audio), Audio input (Aux, S/PDIF) switching
    • Power LED indicator
    • IR window

In the box

  • HDMI4S18G Switcher

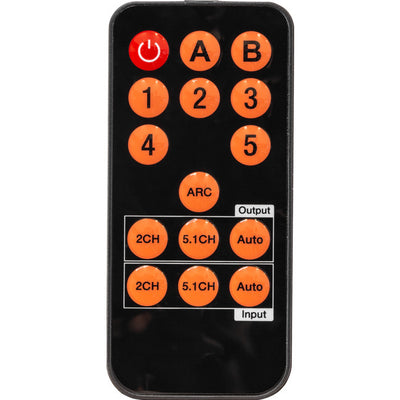

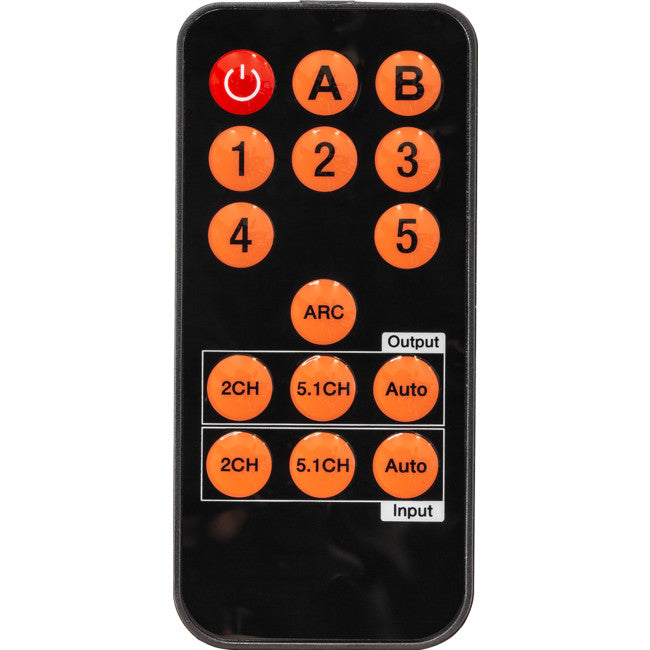

  • Remote control (Requires 2x AAA Batteries)
  • 5V 1A power supply
  • User manual
  • Mounting ears (for rack mounting)

Specifications

Operating Temperature Range

-5 to 40°C

Operating Humidity Range

5 to 90% RH (No Condensation)

Power supply

5V

Minimum power
(work under 480p60hz)

256mA

Maximum power
(work under 4K2K/60hz)

383mA

Max resolution

4k@60hz YUV4:4:4

Function

ARC HDR10 and CEC(only input)

HDMI version

HDMI 2.0

HDCP version

HDCP2.2 HDCP1.4
(Auto choose depend TV version)

Control ways

Switch button and remoter control

Audio

Analogue audio 2.0, SPDIF 5.1, audio extraction

Distance

1080P 20m, 4k@30hz 10m,
4k@60hz under HDR can support 3m

3D

No

Dimensions (LxWxH)

178 x 84.1 x 28.1mm

Audio format

Dolby True HD and DTS-HD master audio (HDMI out)
