Features
- Support resolutions up to 8K 7680x4320@60Hz YUV 4:4:4 ultra high definition
- Simultaneously displays an 8K ultra HD source on two ultra HD displays
- Support Bandwidth up to 48Gbps

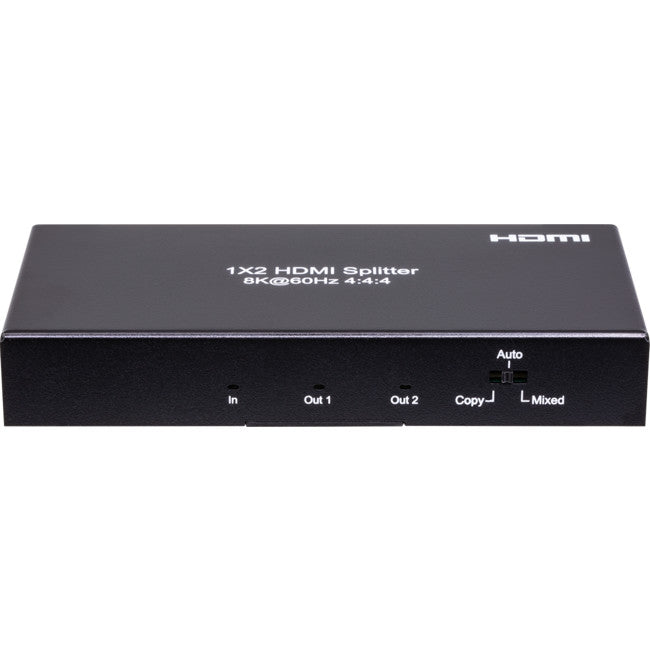

- Three EDID settings, Copy, Auto, Mixed
- HDCP2.2/ 1.4 Compliant
- Support 10-bit Deep Color
- Support LPCM 7. 1/ 24-bit/ 96 kHz, Dolby Atmos and Dolby/ DTS-7. 1
- Support Dolby Vision, HDR10, HDR10+, HLG
- Support Downscaler function (HDMI output 1)
Specifications
Operating Temperature Range | -5 to +40C(+23 to +104°F) |
Operating Humidity Range | 5 to 90%RH (No Condensation) |
Bandwidth frequency | 48Gbps |
HDCP | HDCP2.2/ 1.4 |

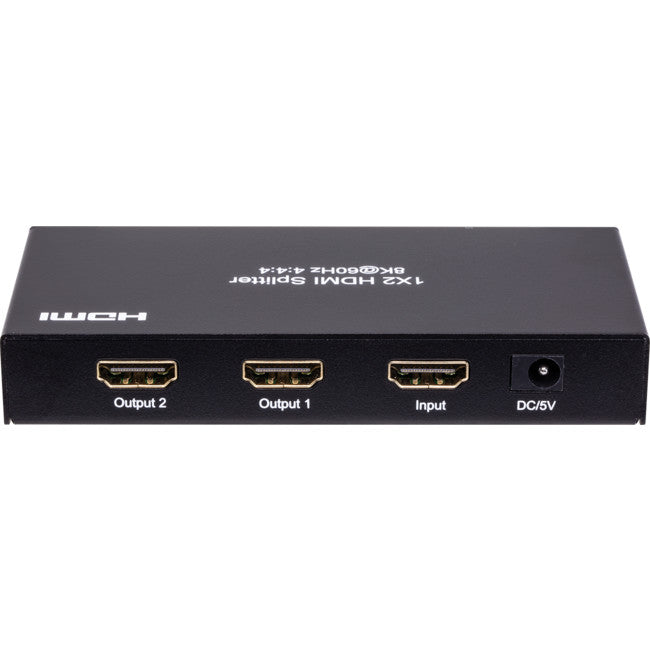

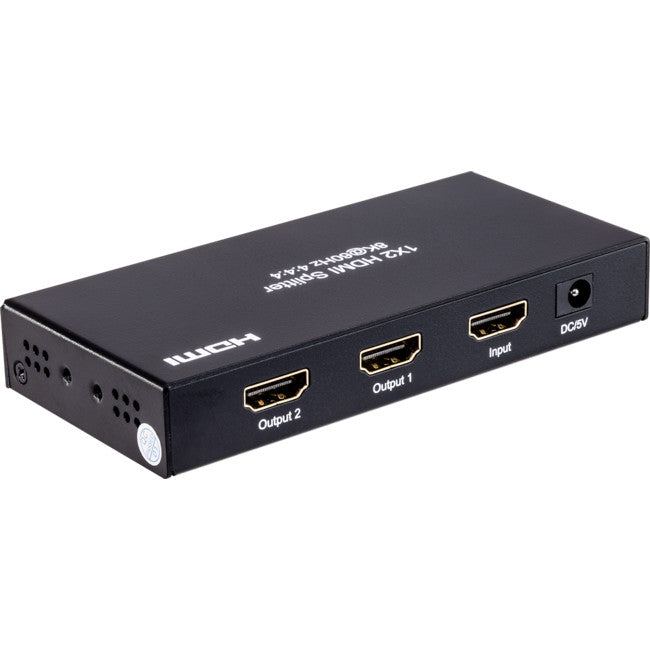

Input ports | 1xHDMI(female) |
Output ports | 2xHDMI outputs(female) |
Resolution outputs | up to 8K(7680x4320@60Hz YUV 4:4:4) |
Dimensions(LxWxH) | 120.3x57.2x 19mm |
Power consumption | 5W(MAX) |
Audio format | LPCM 7.1/ 24-bit/ 96 kHz, Dolby Atmos and Dolby/DTS-7.1 |
Net Weight | 191.7g |

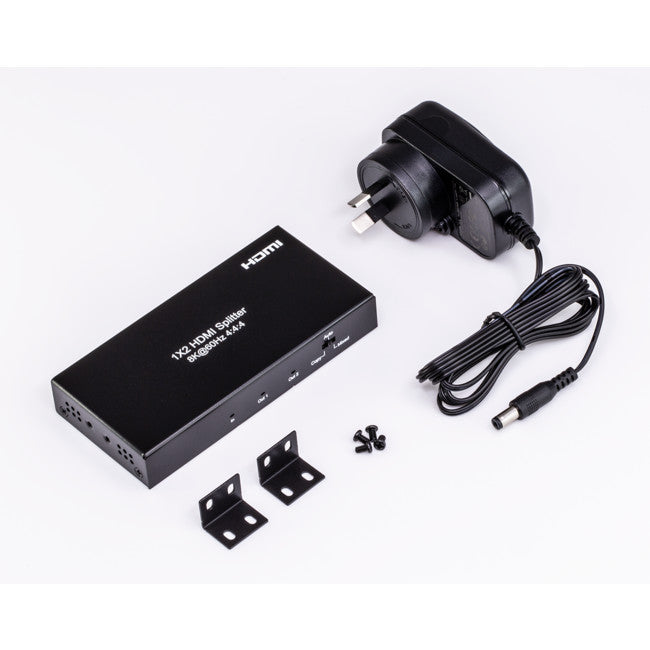

Package contents
- 1 x HDMI2SP8K Splitter
- 1 x 5V/2A DC Adapter
- 2 x Mounting ears
- 1 x User Manual
EDID applications:
- Output 2 is a priority port, downscale will be enforced in some applications.
- If there is only 1 TV, always connect to the output2and EDID set to Auto or Copy, the output will be up to 8K60YUV444, but not Mixed (8K60YUV420 only).
When connecting to output 1, which is not suggested in this application, it will output up to 1080P60 on the EDID Copy, 8K60YUV444 on the EDID Auto, and 4K60 on the EDID Mixed. - If both TVs are the same resolution, EDIDshould be set to either Auto or Copy, both output will be up to 8K60YUV444, but not Mixed (output 1 up to 4K60 and output 2 up to 8K60YUV420 only).
- If two TVs are different resolutions, the higher resolution TV should connect to output 2.
EDID Auto will output the lowest resolution of the two TVs,
EDID Mixed, Output 2, up to 8K60YUV420 (not 444), Output 1, up to 4k60 only
EDID Copy, Output 2, up to 8K60YUV420 (not 444), Output 1,up to 4k60 only
