{tab Features}

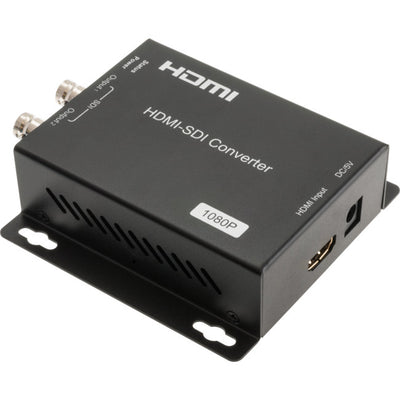

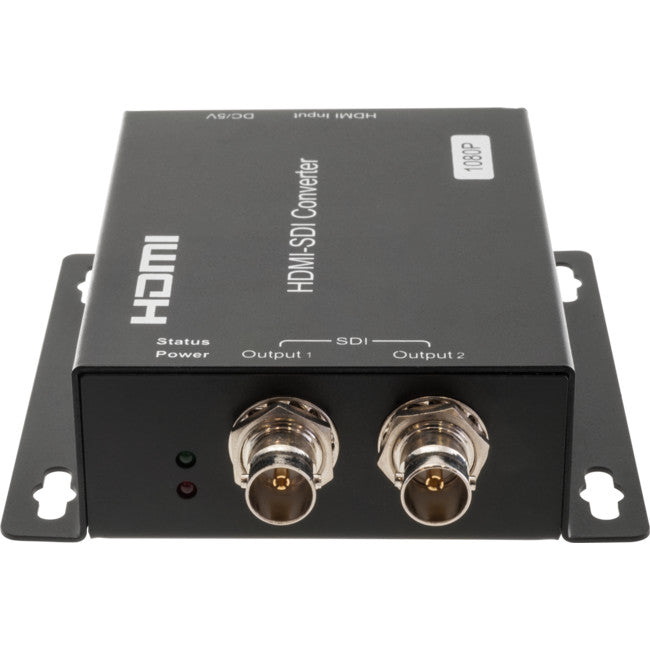

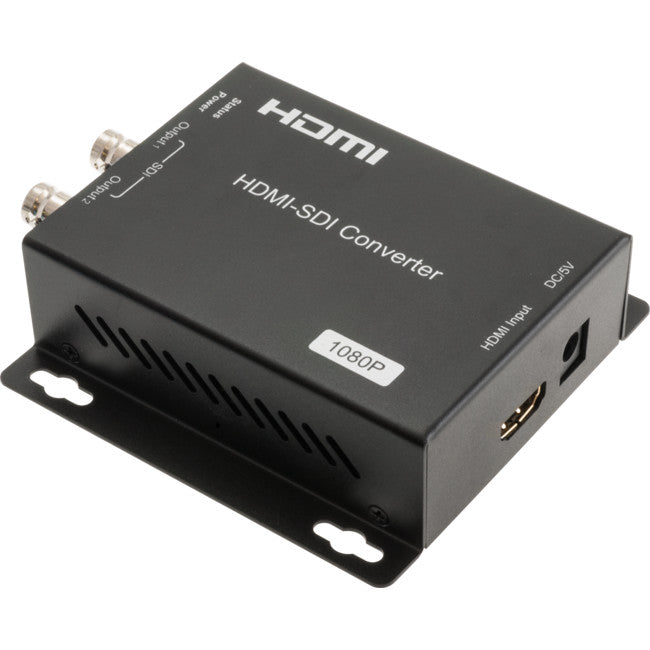

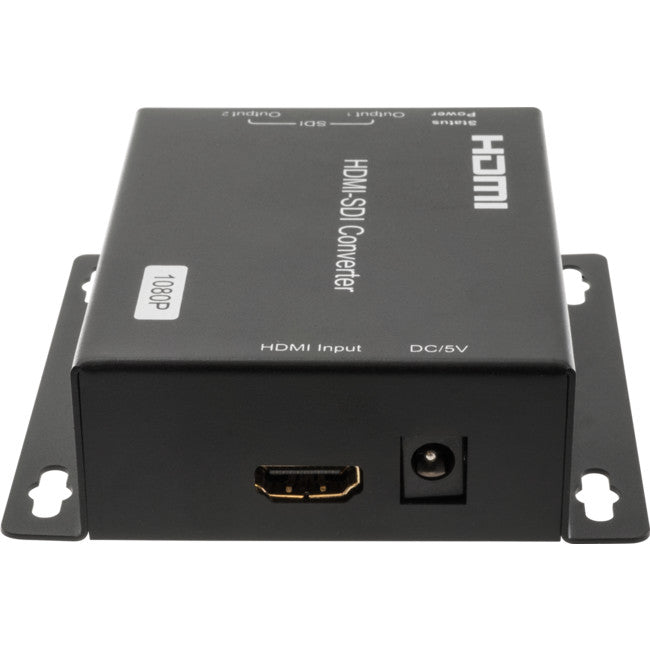

The HDMI2SDI takes Full HD HDMI video with audio and converts it to SDI for transport over up to 2x coaxial cables. This device is great for adding HDMI sources to SDI DVRs or for sending HDMI over Coax where it can then be converted back to HDMI (for example with our SDI2HDMI).
| Video Formats | HDMI | 480i | |
|---|---|---|---|
| 576i | |||
| 720p (60 / 59.94 / 50) | |||
| 1080i (60 / 59.94 / 50) | |||
| 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) | |||
| SDI | SMPTE-425M | 1080p (60 / 59.94 / 50) | |
| SMPTE-274M | 1080p (30 / 29.97 / 25 / 24 / 23.98) | ||
| 1080i (60 / 59.94 / 50) | |||
| SMPTE-296M | 720p (60 / 59.94 / 50) | ||
| ITU-R BT.656 | 576i (50) | ||
| SMPTE-125M | 480i (59.94) | ||
| Input | HDMI | ||
| Outputs | 3G-SDI/HD-SDI/SDI | ||
| HDMI | Standard Type A connector | ||
| HDCP | HDCP Compliant | ||
| Power consumption | 2.5Watts (Maximum) | ||
| Dimension (L×W×H) | 95×95×29mm | ||
| Operating Temperature Range | -5 to +35°C (+23 to +95°F) | ||
| Operating Humidity Range | 5 to 90% RH (No Condensation) | ||
| Net Weight | 245g | ||
