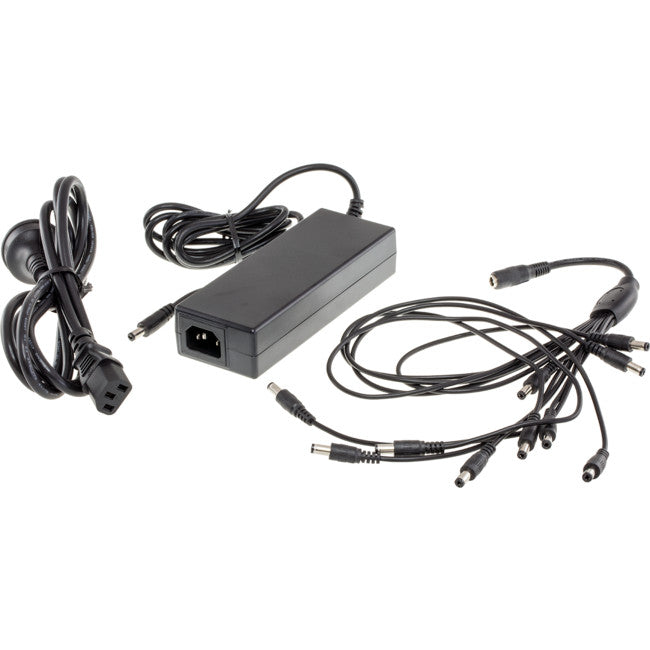

HDIPPS10 10 SPLIT POWER SUPPLY FOR HD-1600 SERIE MODULATORS RESI-LINX HDIP-PS10

Features

Power supply with 10 DC 2.1mm plugs to power up to 10 Resilinx modulator devices at once. Can be used on HD-1600/ 1600L/ 1603/ RL-DM1102M etc.

Perfect to be used with ZC10pk

Specifications

Input Voltage 100-240VAC
Input Current ≤1.5 Arms ar 100 to 240 VAC input
Output Capacity 96.00W max
Output Voltage And Current 8A @ + 12.00 VDC
Frenquency 50Hz-60Hz
Hold Up Time

10ms min @ 115VAC input

20ms min @ 230VAC input

Turn On Delay Time 3s max@ 100 VAC to 20VAC input with Max.load output
Operating Temperature -40°C-45°C
Storage Temperature -20°C-80°C
Operating Humidity 10%-90% RH(Condensation: not required)
Storage Humidity 5%-95% RH(Condensation: not required)
