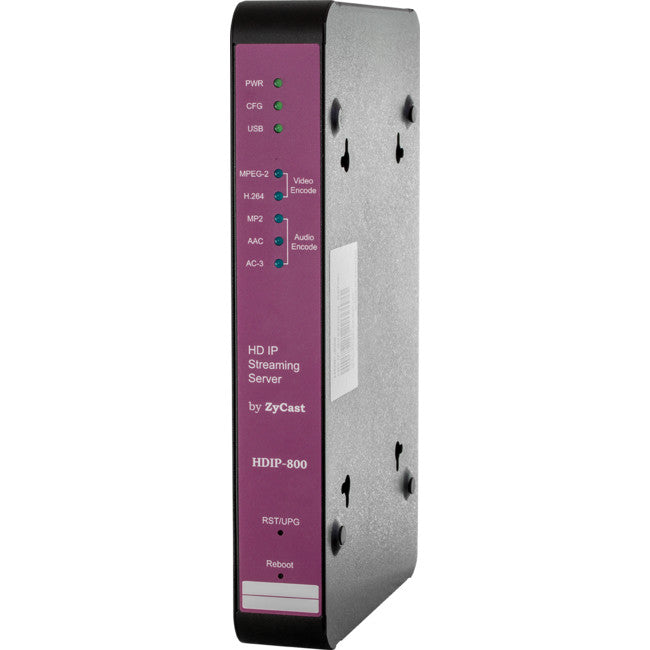

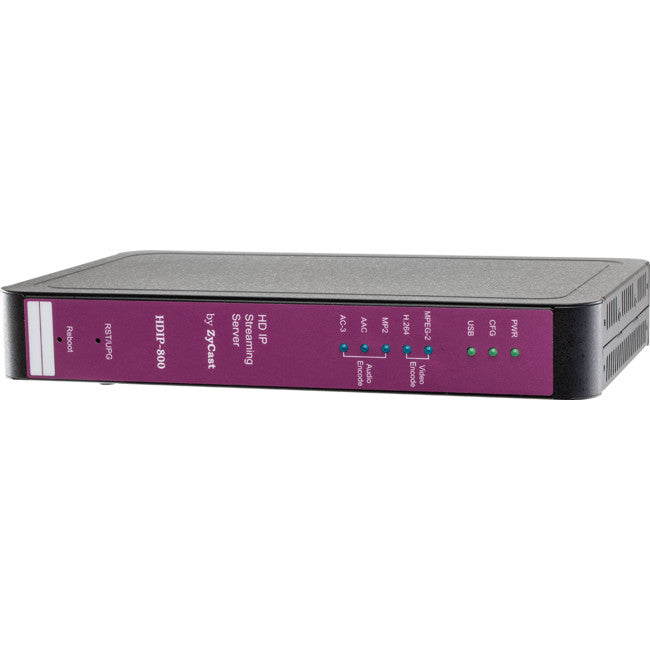

Resi-linx HDIP800 " digi-MOD IP " streaming server allows you to stream any AV source/s to multiple HD TV's or connected computers within the IP network with ease.
The digi-MOD IP HD streaming server is perfect for all media applications including Digital Signage, HD Classrooms,Pro AV systems, Homes, Corporate Board rooms, CCTV IP Streaming and HD distribution over IP networks
digi-MOD IP can even be connected directly to the following brand TV's without the requirement of IP-STB's making it an economical solution

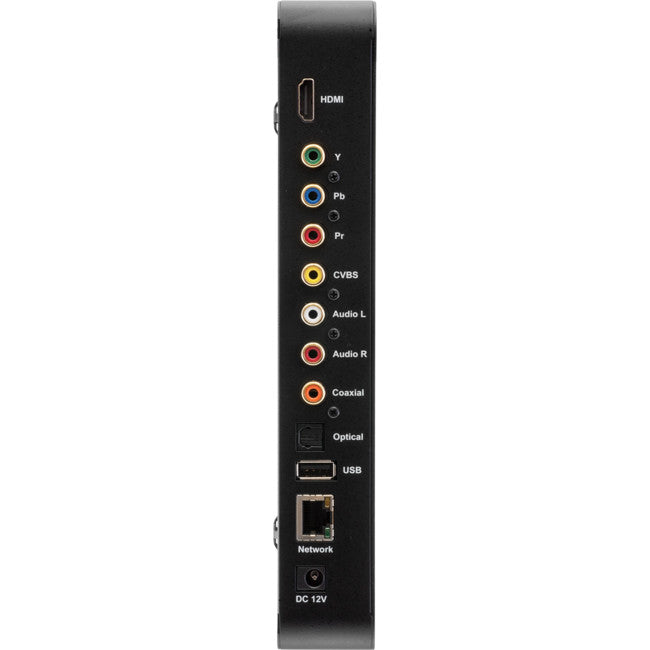

The IP streamer accepts a HDMI, component, composite video, USB and both Analogue and Digital audio inputs the HDIP800 can stream any content you require. More sources required? Simply buy a HDIP800 per source - it's that easy!
|
Ethernet Output | 1Gpbs - RJ-45 |
| USB ( optional ) | USB 2.0 | |
| Video Input | HDMI, YPbPr, CVBS | |
| Audio Input | Analogue, Coaxial, Optical | |
| Video Format | MPEG -2, AVC |
| Audio Format | MPEG 1 - Layer2 (MP2), AAC, AC-3 passthrough | |
| Resolution | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p | |
| Video Bitrate | MPEG-2 HD: 10 to 20Mbps, MPEG-2 SD: 2 to 8Mbps, AVC HD: 2 to 10 Mbps, AVC SD: 1 to 4 Mbps | |
| Audio Rate | 128, 256, 384, 448, 512Kbps | |
| Streaming Protocols | HTTP Server ( DLNA ) UDP/RTP multicasting, UDP/RTPunicasting, TCP unicast | |
| Digital Living Network alliance ( DLNA ) | Media Server 1.5 |
| Closed Caption | Yes | |
| Power Supply | 12V DC 1.5 amp | |
|
Consumption | 500mA | |
| Dimension | L- 236mm x W- 155mm x H- 35mm | |
| Weight | 940g |
