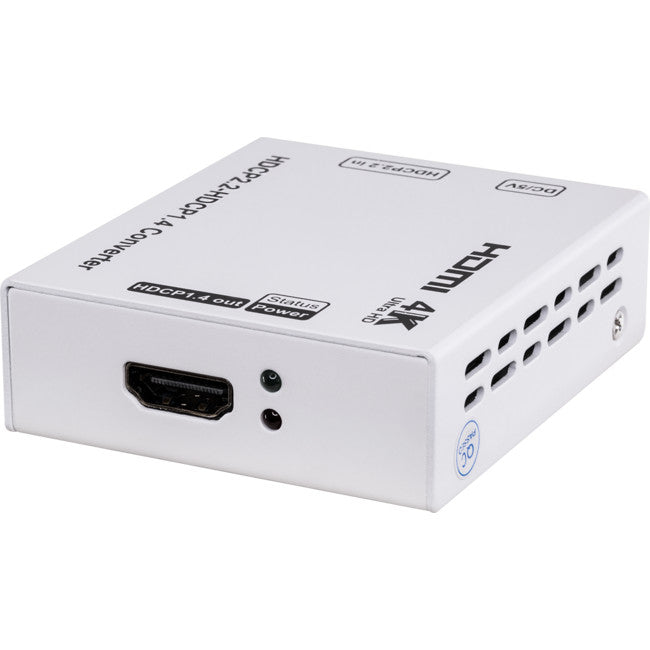

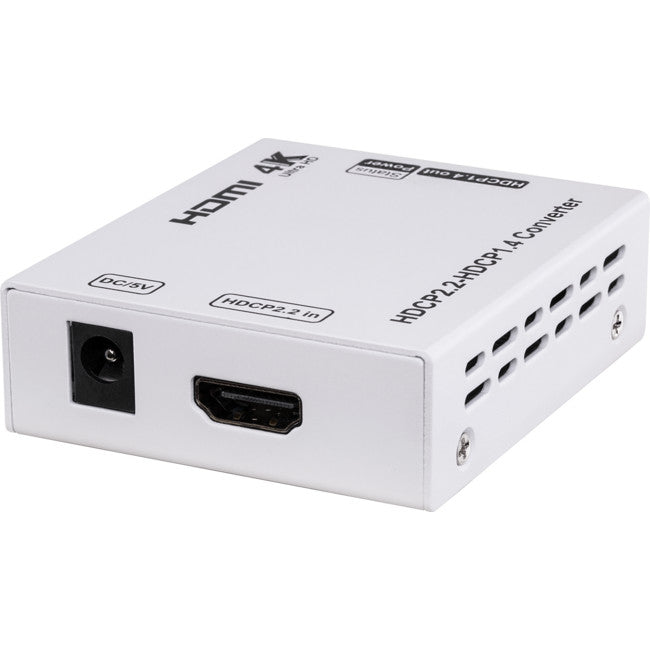

HDCP2214V2 HDCP2.2 TO HDCP1.4 CONVERTER 4K2K 3D COMPATIBLE WHITE PRO2 SX-HDCP01

Online Stock Only.

For "click and collect" orders at Lynbrook store the shipping fee will still apply on collection for items not stocked at the Lynbrook store.

Why do you need HDCP 2.2 to HDCP 1.4 converter?

HDCP 2.2 is the new copy-protection standard for many modern source devices and streaming services, such as Netflix. This box is perfect for playing your HDCP2.2 content through your HDCP1.4 equipment!

TVs must be HDCP 2.2 enabled to play content and everything in the video chain (including switches & receivers) must be compliant as well.

If you have HDCP 1.4 equipment, you'll need a HDCP 2.2 toHDCP 1.4 converter to display content!

Features

  • Compliant HDMI 1.4B.
  • Converts HDCP 2.2 to HDCP1.4
  • Supports 4Kx2K @ 60Hz / YUV 4: 2:0
  • Supports audio format Dolby / DTS / LPCM
  • Supports 3D / CEC
  • Power supply: 5V 1A (included)

Wiring diagram

Specifications

Operating Temperature Range −5 to +35 °C
Operating Humidity Range 5 to 90%RH (No Condensation)
HDMI Input HDCP 2.2
HDMI Output HDCP 1.4
Video Format Supported DTV/HDTV:480i/576i/480P/576P/720P/1080i/1080P/4Kx2K
3D video support
Maximum video Format 4Kx2K@60Hz, YUV 4:2:0
HDMI input 1xHDMI (Standard Type A connector)
HDMI output 1xHDMI (Standard Type A connector)
Support Video Color Format xv-YCC/deep color 36bit
Support Audio Format DTS-HD Master Audio, Dolby true-HD. LPCM
Power consumption 1.5 watts(Maximum)
Dimension (LxWxH) 70.2*60.2*21.1mm
Net Weight 120g
