Overview

Requires IEEE-568B cable termination standards and solid core cable. Use Solid/FTP CAT5/6 cables.

If you are running a cable 15 metres or more, make sure you use a SOLID CAT5/6 cable. This product may not work with standard stranded ethernet cable. See related items for cabling that will work this product. 60m distance has been tested fine on F/UTP solid cat6 cable.

FYI: Most of the pre-made cat5/6 leads on the market are stranded cables not solid.

HDC6M4KARC PRO2 70M HDMI OVER CAT6 EXTENDER

Foxtel iQ2 and iQ4 compatible 4K&IR

Compared with the HDC6M4K, this newer model offers extra features like CEC and ARC pass-through and Bi-directional IR.

Note: ARC needs to be enabled on both sides, the TV display and the AV Receiver, as these are disabled by default on devices.

HDMI2.0 18G 4K extender over single solid UTP cable with local loop out and CEC/ARC.

This compact and simple HDC6M4KARC is the easiest way to extend your 4K HDMI via a single solid CAT5e/6 cable up to 70m*.

Features

HDMI2.0 extender, bandwidth 18Gbps, deep color up to 4K @ 60Hz 4:4:4-8bit
Support HLG, HDR10+
ARC CEC pass-through
With the local HDMI loop out plus the IR, you can view and control your video source locally or remotely
Bi-directional power over cable feature, only one power supply is required on either the transmitter end or receiver end.
Supports S/PDIF Toslink and PCM2.0 analog audio extraction
HDCP2.2/1.4 compliant
Transmit up to 70m under 4K @ 60Hz YUV4:4:4 and 4K @ 30Hz/ 1080P over a single solid CAT5e/6 cable
EDID management
Wideband Bi-directional IR Pass-through, compatible with Foxtel IQ4
Support LPCM 7.1CH, Dolby True HD, DTS-X, DTS-HD master, and Dolby Atmos audio
Support 4K @ 60Hz downscale to 1080P
HDMI audio sampling rate up to 32-96KHz, 16-24bit
Support Micro USB port to upgrade new firmware for future
Compact size and easy mount with the rack mount ears supplied
ARC supports audio PCM/Dobly/DTS,48KHZ, supports up to 5.1CH audio

*NOTE: 70m distance is under perfect transmission conditions including straight cable runs with no bends, kinks, electrical interference, patch panels, or wall outlets. Use CAT6 shield solid core cable for the best results.

What's In The Box?

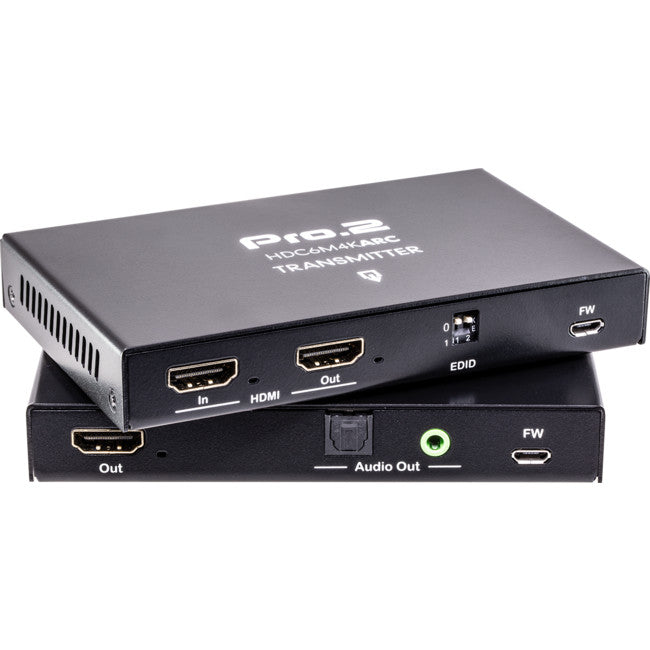

Transmitter × 1
Receiver × 1
IR emitter × 2
IR receiver × 2
24V DC 1A power supply × 1
Rack mount ears × 4
Manual × 1

Connection Diagram

Got The Right Cable?

Please note: IEEE-568B standard solid cables are recommended for this kit.

Specifications

Operating Temperature Range	−5°C to +40°C (+23°F to +104°F)
Operating Humidity Range	5 to 90%RH (No Condensation)

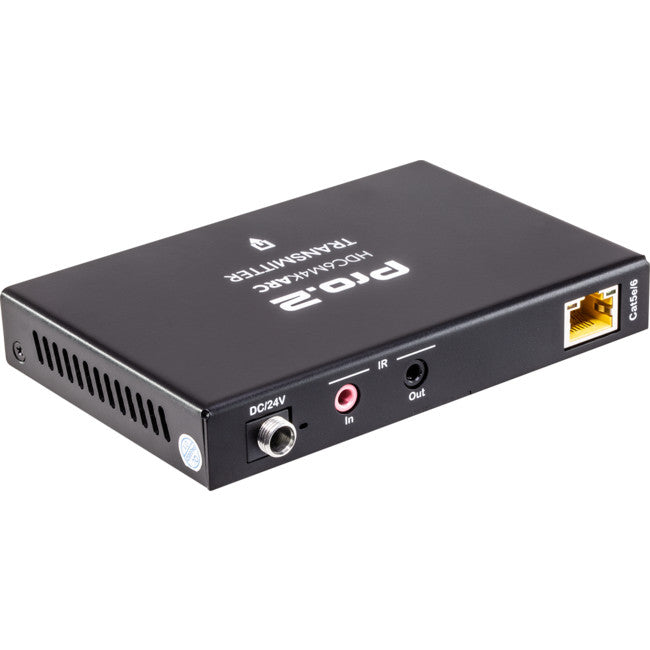

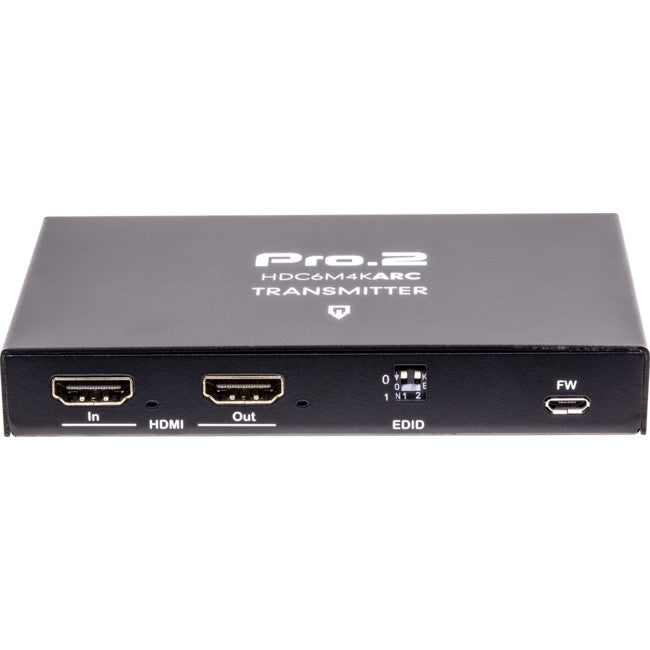

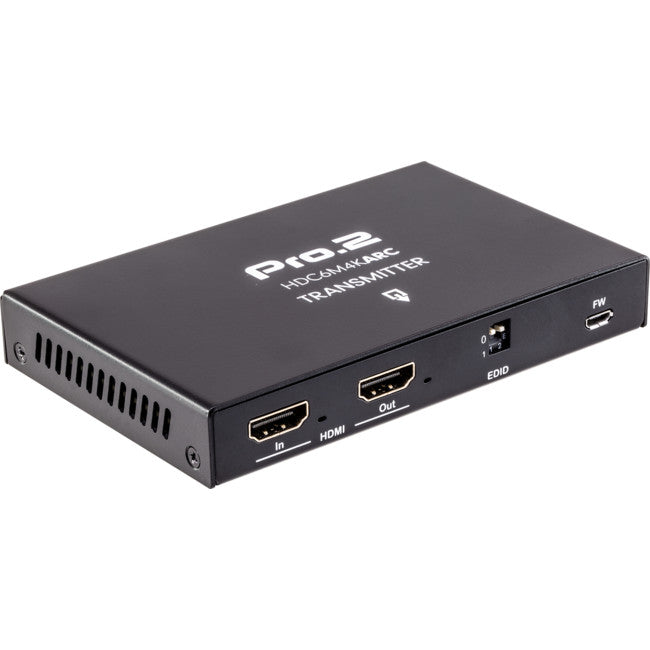

Transmitter Connections	1 × HDMI input 1 × HDMI loop out 1 × Power DC 1 × EDID 1 × 1IR TX input 1 × IR RX output 1 × Micro USB socket 1 × RJ45

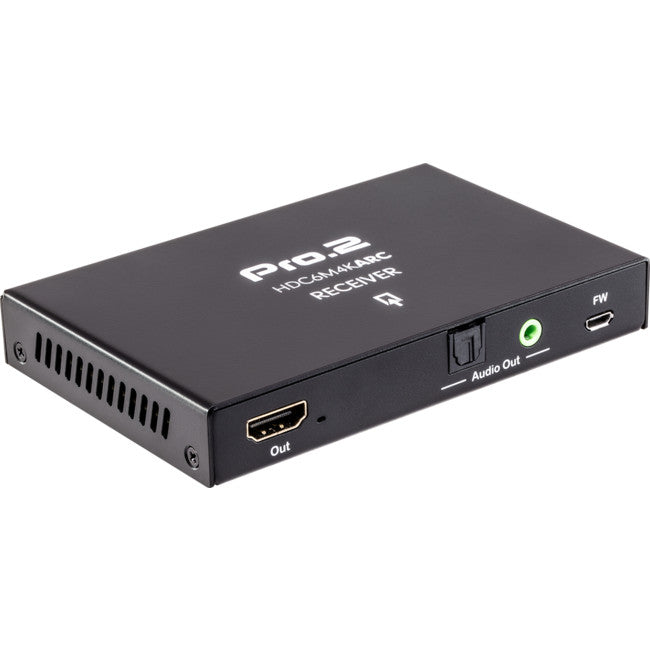

Receiver Connections	1 × HDMI output 1 × RJ45 1 × Micro USB socket 1 × Power DC 1 × IR RX input 1 × IR TX output 1 × Toslink 1 × 3.5mm Audio
Output Resolution	4K @ 60hz YUV 4:4:4 4K @ 30HZ/1080p/1080i/720p/576p/480p
Bandwidth	Up to 18Gbps 600MHz
Colour Space	RGB YUV 4:4:4, 4:2:2, 4:2:0
HDCP	1.4/2.2
Deep Colour	8-bit, 10-bit, 12-bit
Audio Format Supported	DTS-HD Master Audio, Dolby True HD, PCM etc.
Output Video Signal	HDMI
HDMI Cable Length to TX/RX	4K @ 60Hz: input/output 5M Max 4K @ 30Hz: input/output 8M Max 1080P: input/output 10m Max
Dimension (L×W×H)	TX: 120.2mm × 78.3mm × 18mm RX: 120.2mm × 78.3mm × 18mm
Power Supply	24V DC 1A power supply
Power Consumption	12W (Max)
Transmission Distance	Up to 70m under 4K @ 60 Hz YUV 4:4:4 and 4K @ 30Hz/1080P
Net Weight	TX: 240g RX: 240g

EDID 2 Pin Dip Switch on the Transmitter

00	Default 4K60-YUV420-2CH	01	Copy EDID from the far-end display
10	Copy EDID from the loop out display	11	Default 4K60-YUV444-5.1CH

FAQ

Q: Does this unit work with the new Foxtel iQ3?
A: Yes. Just make sure your IR emitter is placed in the correct location. See the image below.

Also, note that the new Foxtel IQ boxes only come with a Bluetooth remote. You will need to acquire a Foxtel-compatible IR remote.

Q: What happens if the product is not working?
A: Please check your cable, and make sure IEEE-568B type solid cable is being used.
