HDC6M4K HDMI OVER CAT6 EXTENDER [70M] 4K EDID POC LOOP OPTICAL PRO2 EX-63

HDC6M4K HDMI OVER CAT6 EXTENDER [70M] 4K EDID POC LOOP OPTICAL PRO2 EX-63

$219.00

Overview

Requires IEEE-568B cable termination standards and solid core cable. Use Solid/FTP CAT5/6 cables.

If you are running a cable 15 metres or more, make sure you use a SOLID CAT5/6 cable. This product may not work with standard stranded ethernet cable. See related items for cabling that will work with this product. 60m distance has been tested fine on F/UTP solid CAT6 cable.

Note: Most of the pre-made CAT5/6 leads on the market are stranded cable not solid.

HDMI2.0 18G 4K Extender Over Single Solid UTP Cable with Local Loop Output

This compact and simple HDC6M4K is the easiest way to extend your 4K HDMI via a single solid CAT5e/6 cable up to 70m*

Foxtel iQ2 and iQ4 compatible 4K&IR

Features

HDMI2.0 extender, bandwidth 18Gbps, HLG, HDR10
With the local HDMI loop out plus the IR, you can view and control your video source locally or remotely.
Bi-directional power over cable feature, only one power supply required on either the transmitter end or receiver end
Supports S/PDIF and PCM2.0 analogue audio extraction
HDCP2.2/1.4 compliant
Transmit up to 70m under 4K @ 60Hz YUV4:4:4, or 90m under 4K @ 30Hz/l080P over a single solid CAT5e/6 cable
EDID management
Wideband IR Pass-through, compatible with Foxtel IQ4
HDMI audio sampling rate up to 192KHz, max LPCM 7.1 channel
Supports Dolby True HD, PCM, and DTS-HD master audio
Supports Micro USB port to upgrade firmware
Compact size and easy mount with the rack mount ears supplied

*PLEASE NOTE: 70m distance is under perfect transmission conditions including straight cable runs with no bends, kinks, electrical interference, patch panels or wall outlets. Use CAT6 solid core cable for the best results.

What's In The Box?

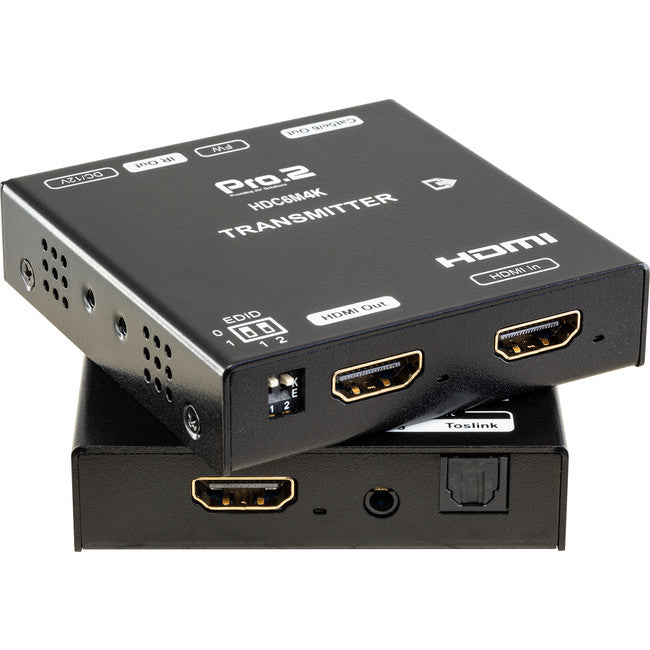

Transmitter × 1
Receiver × 1
IR emitter × 1
IR receiver × 1
DC12V 1A power supply × 1
Rack mount ears × 4
Manual × 1

Connection Diagram

Got The Right Cable?

Please note: IEEE-568B standard solid cables are recommended for this kit.

Specifications

Operating Temperature Range	−5°C to +40°C (+23°F to +104°F)
Operating Humidity Range	5 to 90%RH (No Condensation)

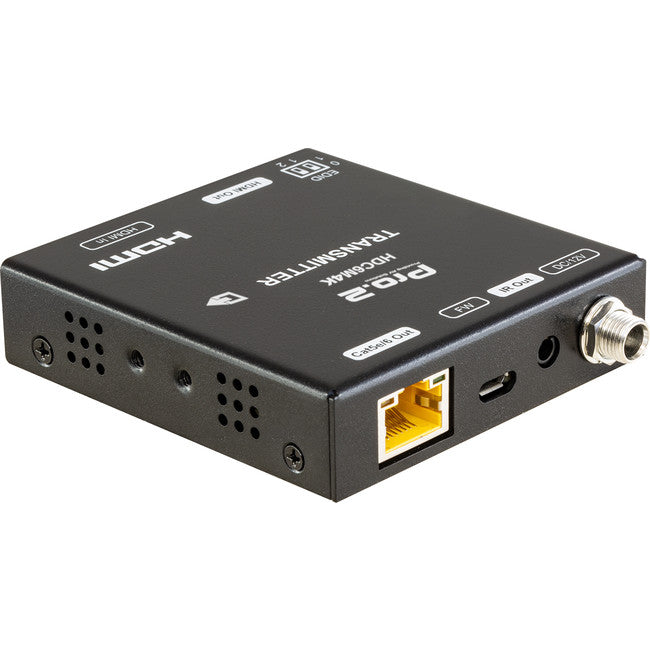

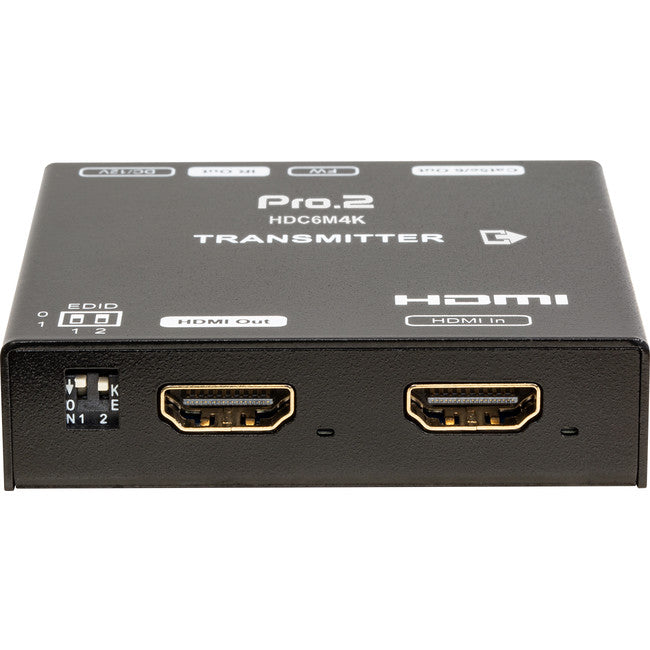

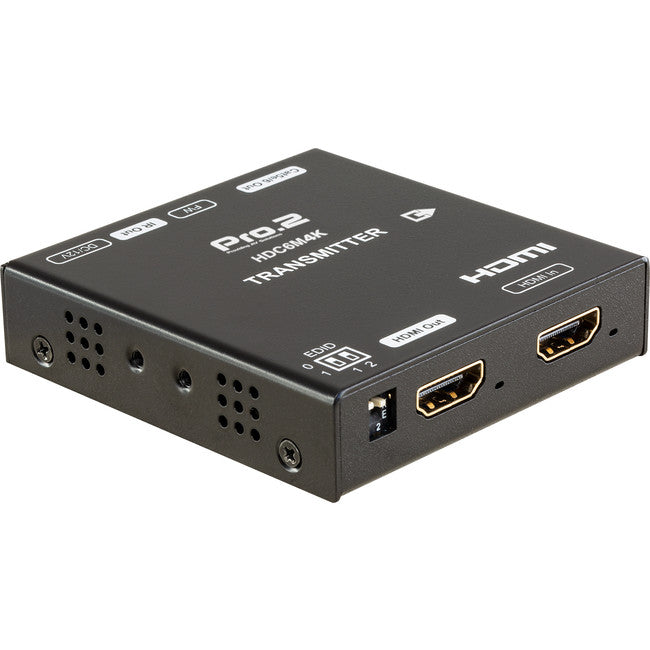

Transmitter Connections	1 × HDMI input 1 × HDMI loop out 1 × Power DC input 1 × IR TX input

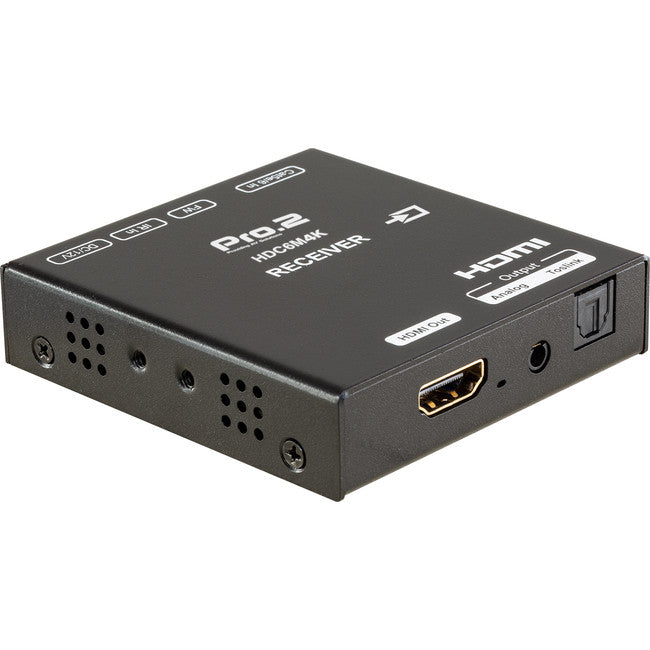

Receiver Connections	1 × HDMI output 1 × IR RX input
Output Resolutions	4K @ 60hz YUV4:4:4 4K @ 30Hz/1080p/1080i/720p/576p/480p
Supported Audio Formats	DTS-HD Master Audio, Dolby True HD, LPCM7. 1, PCM
Output Video Signal	HDMI
Dimensions (L×W×H)	TX: 75.8mm × 72.2mm × 18mm RX: 75.8mm × 72.2mm × 18mm
Power Supply	12V DC 1A power supply
Power Consumption	3.8W (Maximum)
Transmission Distance	Up to 70m under 4K @ 60 Hz YUV 4:4:4, 90m under 4K @ 30Hz/1080p
Net Weight	TX: 150g RX: 150g

FAQ

Q: Does this unit work with the new Foxtel iQ3?
A: Yes. Just make sure your IR emitter is placed in the correct location. See the image below.

Also note that the new Foxtel IQ boxes only come with a Bluetooth® remote. You will need to acquire a Foxtel compatible IR remote.

Q: What happens if the product is not working?
A: Please check your cable, make sure IEEE-568B type solid cable is being used.
