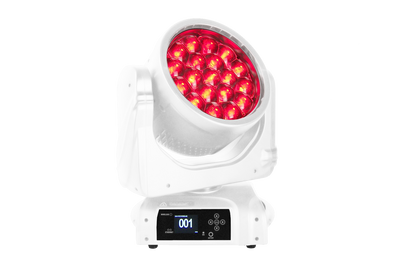

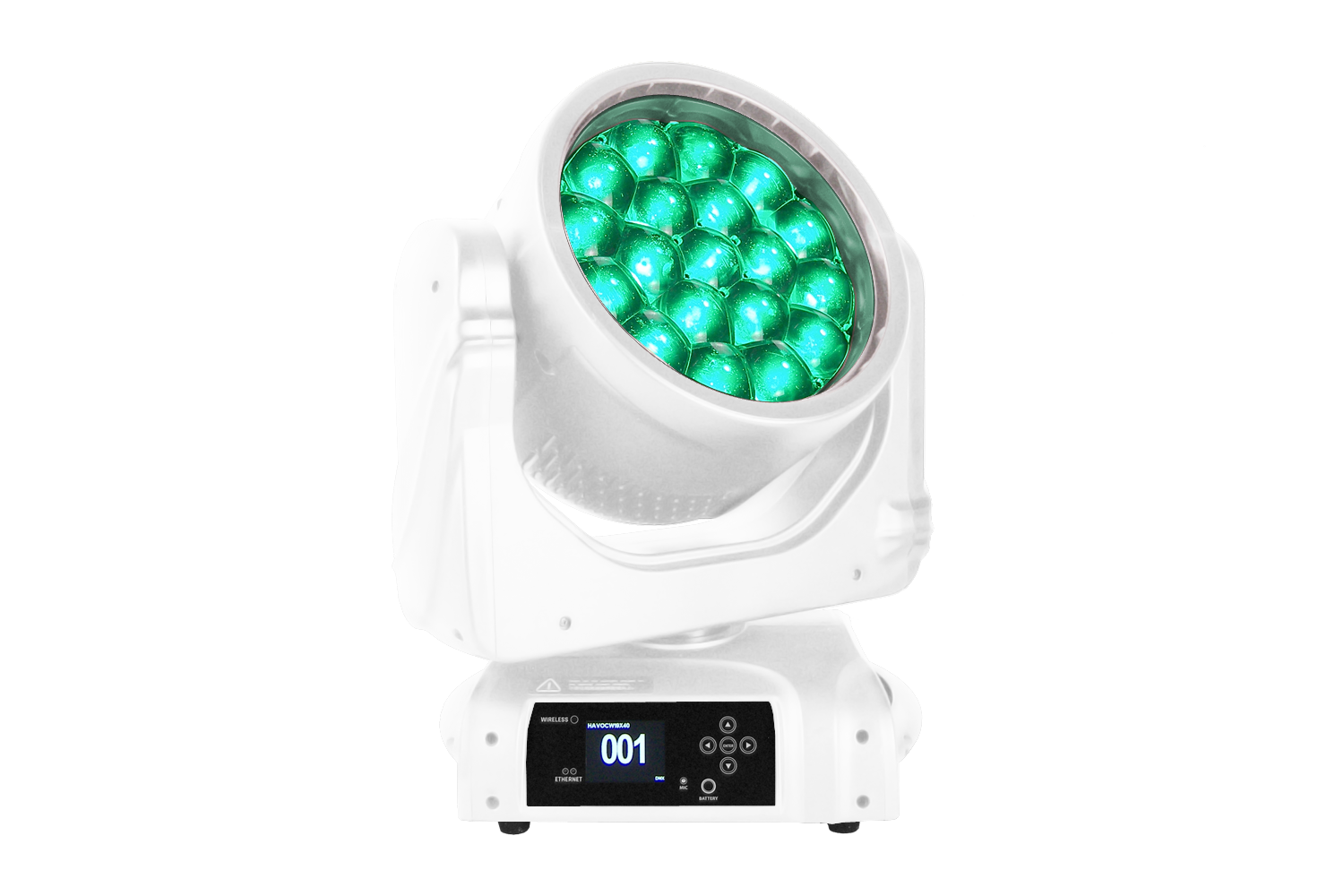

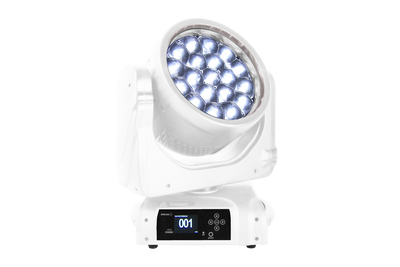

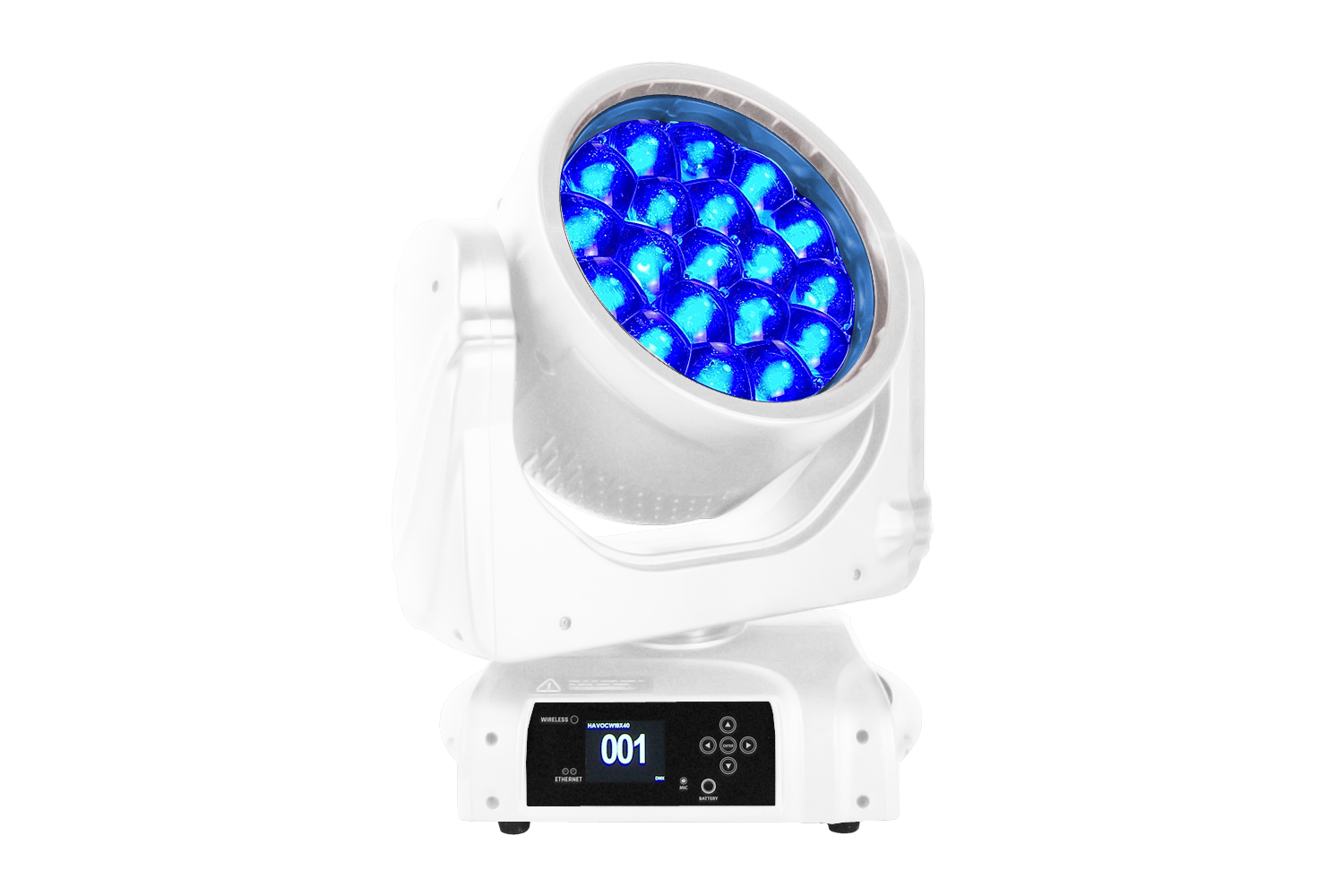

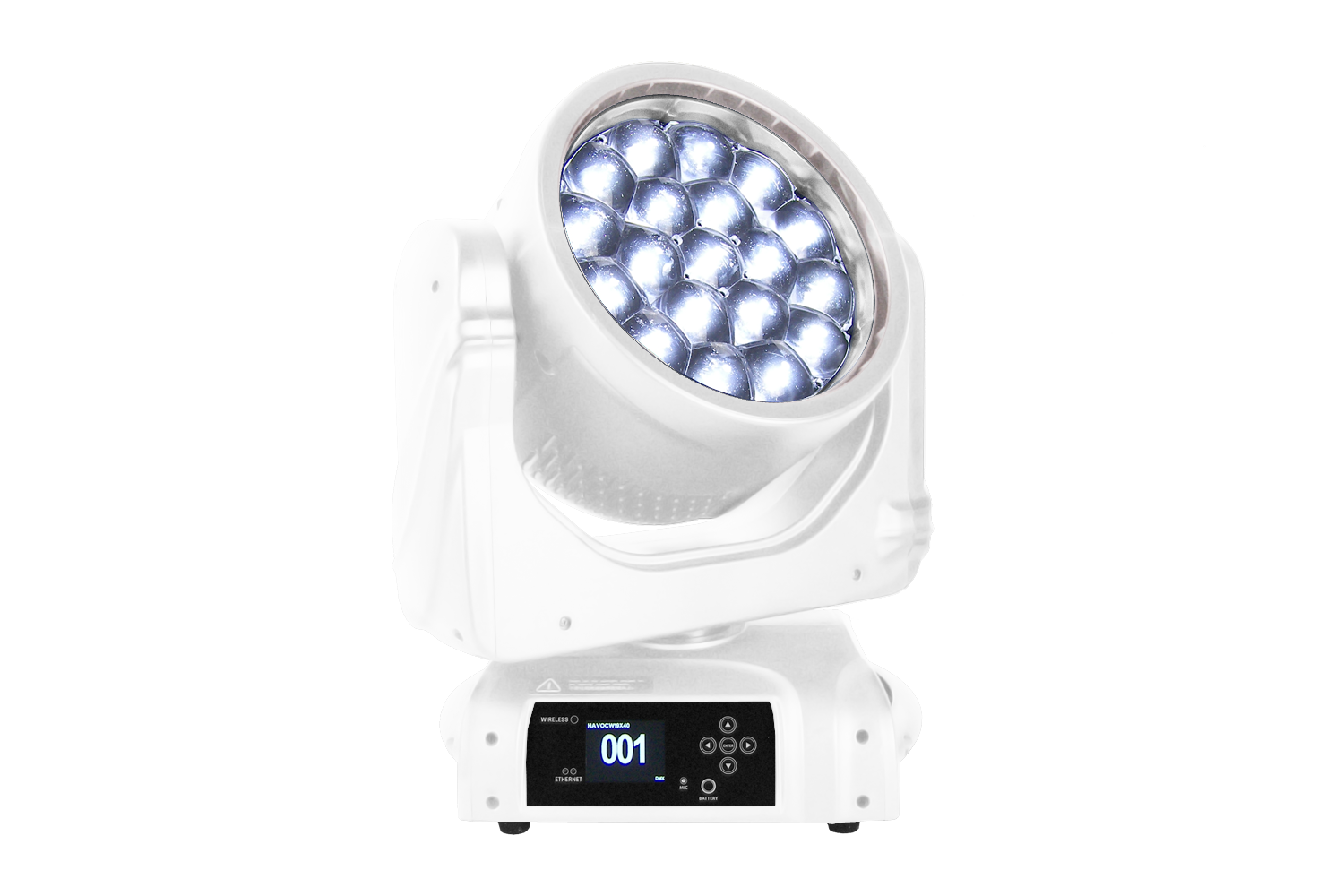

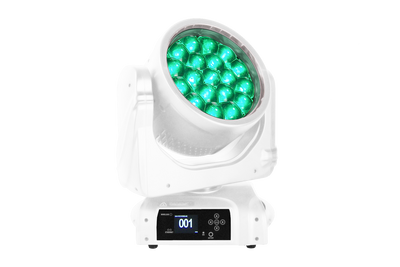

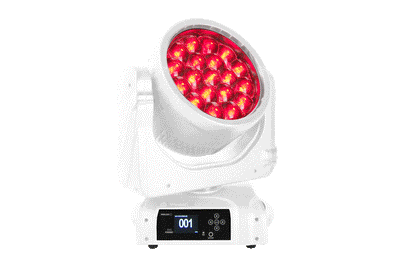

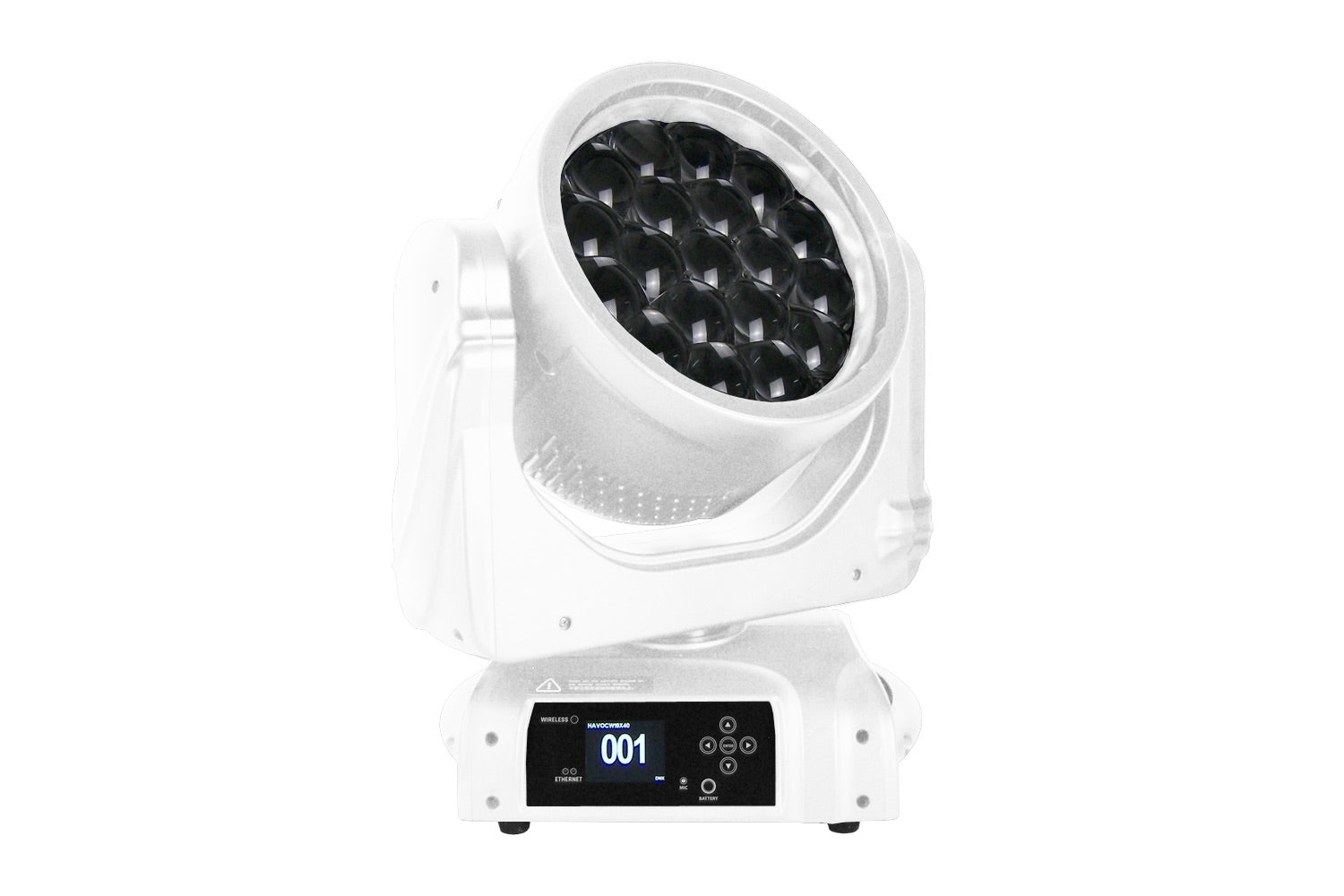

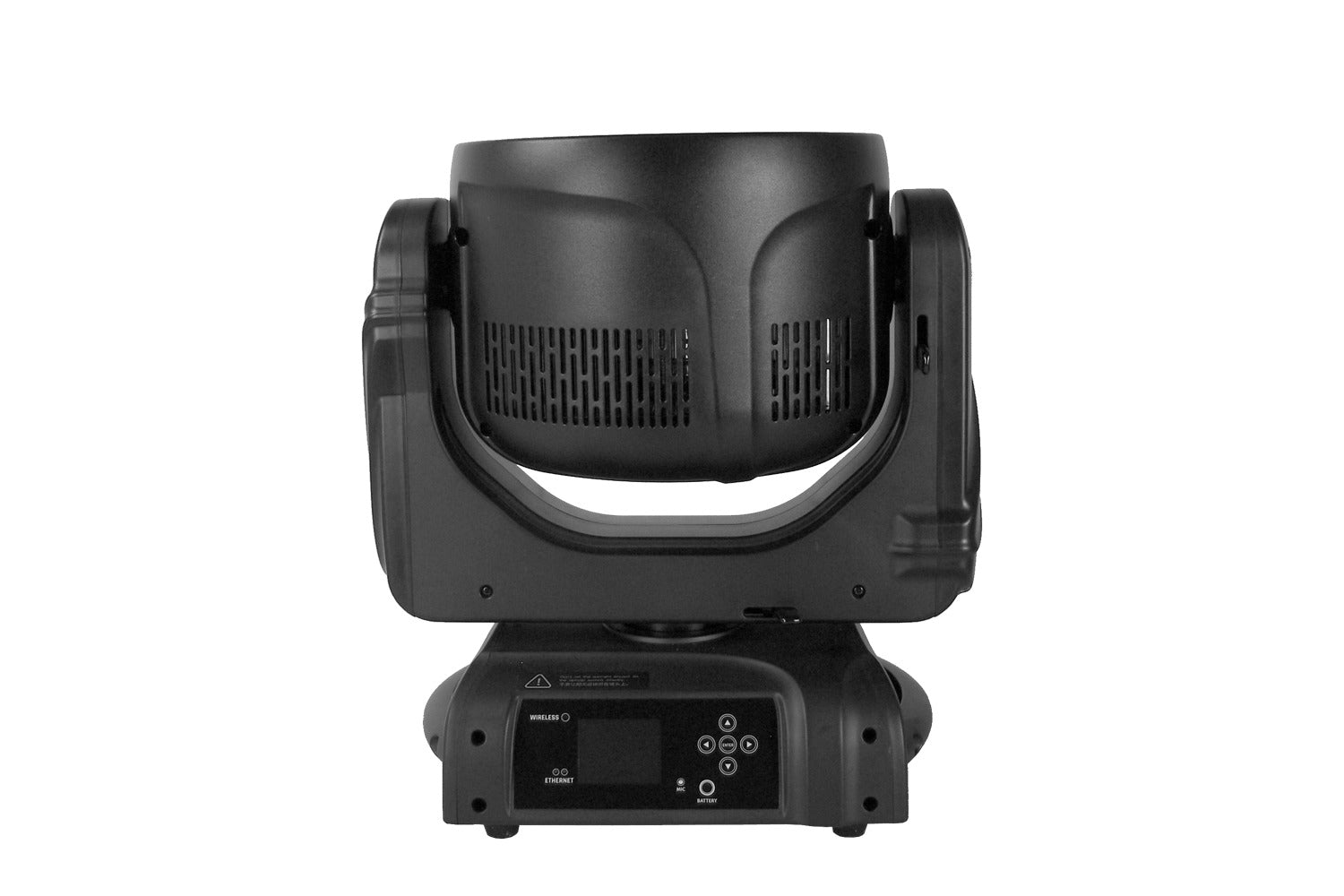

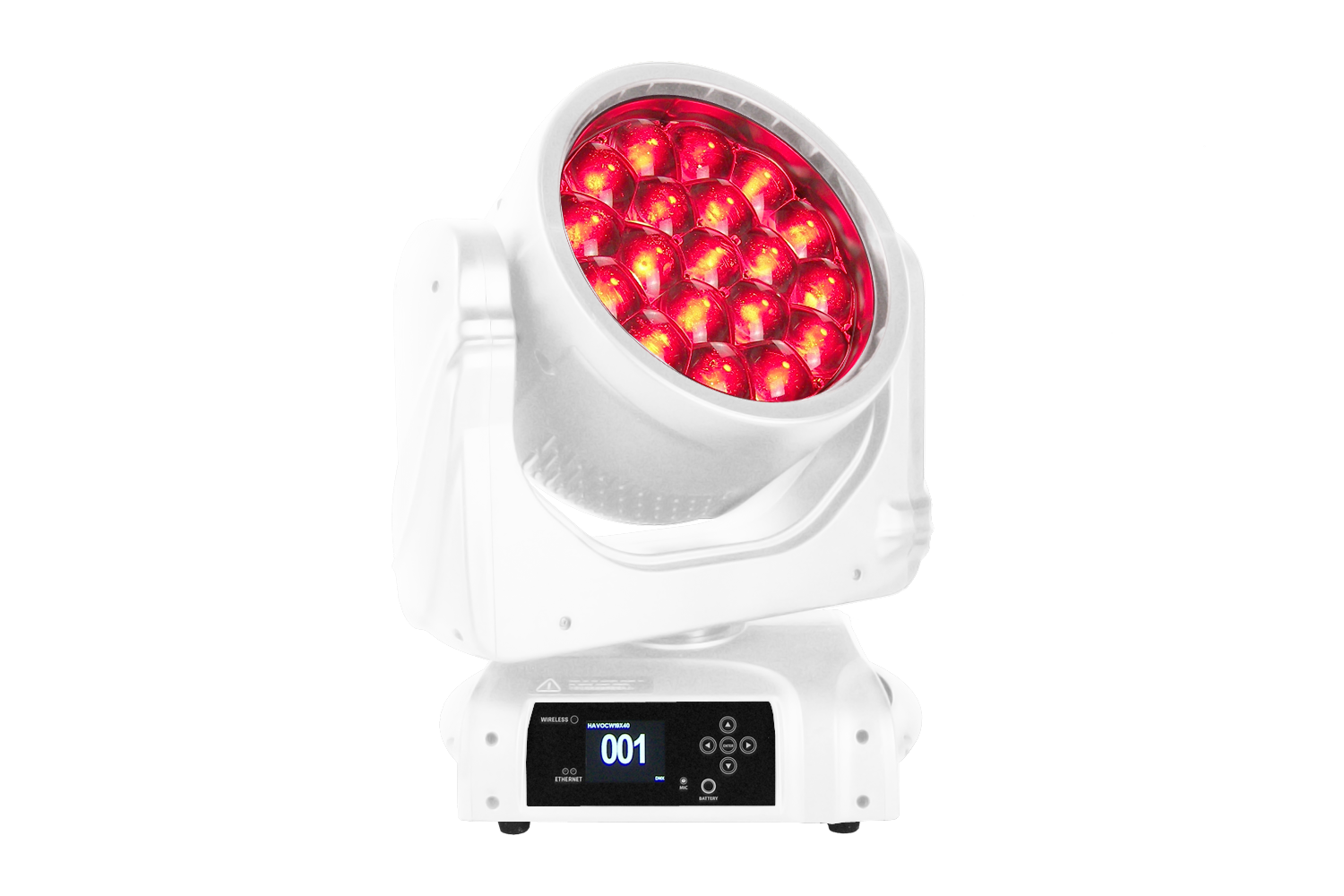

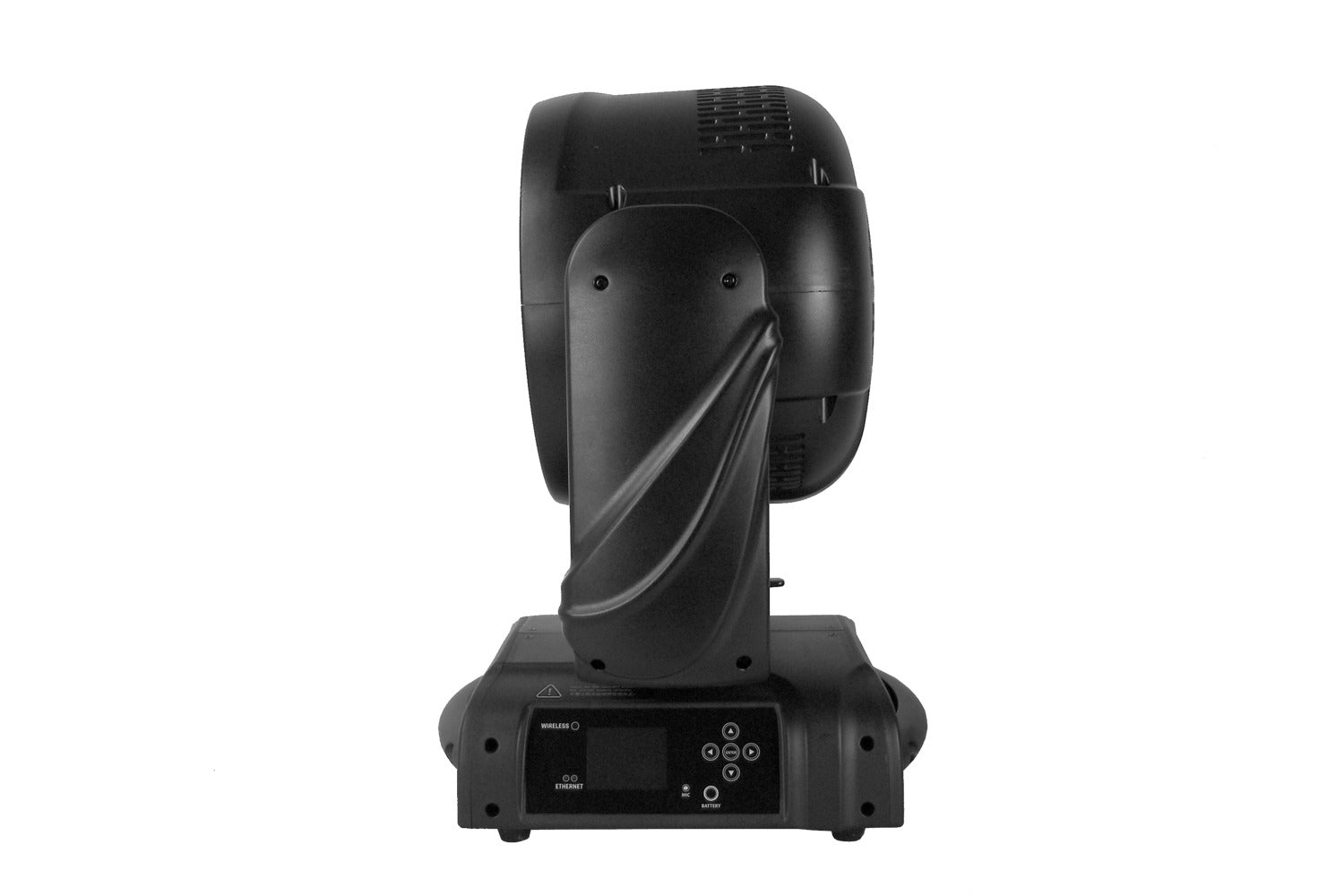

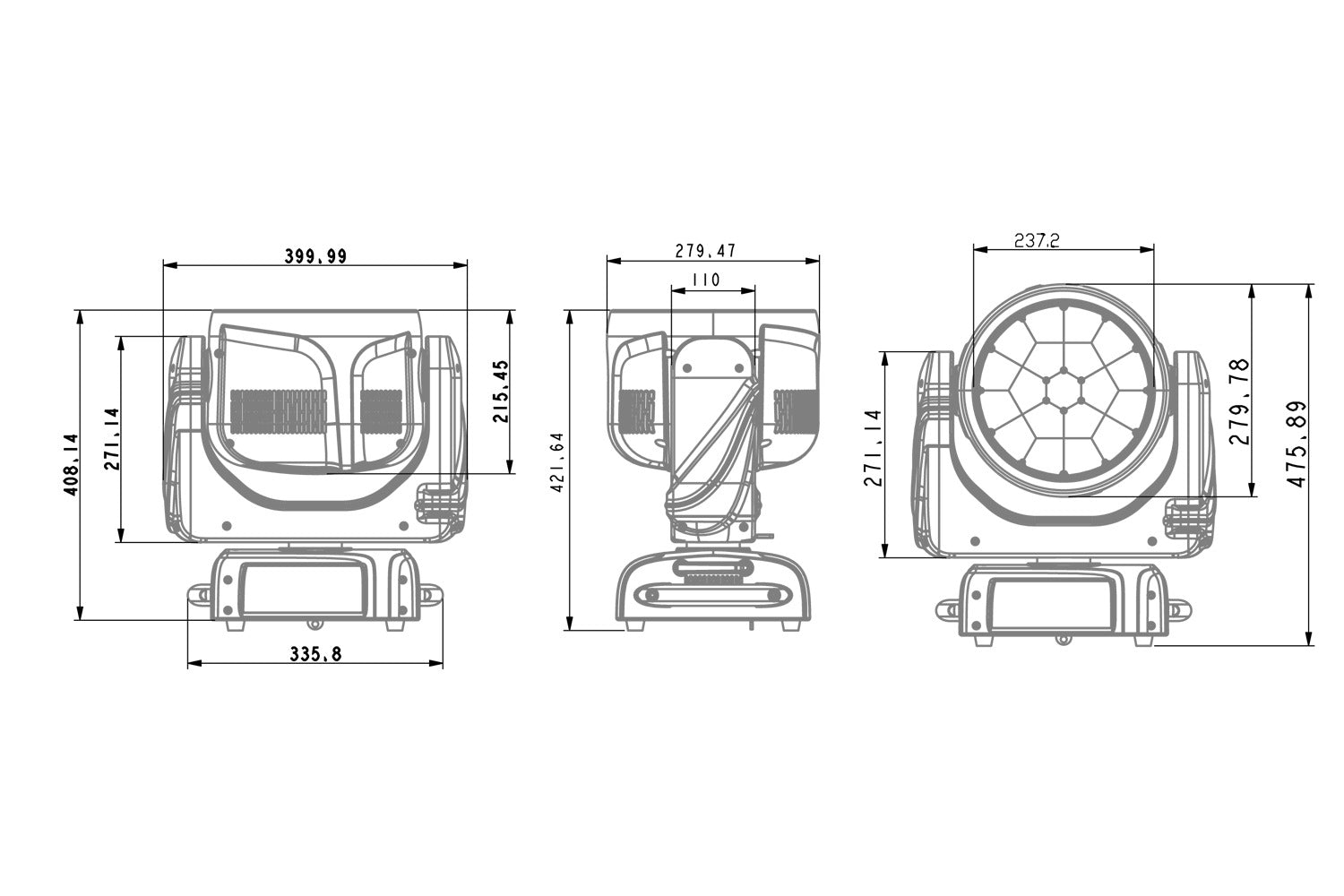

HAVOCW19X40-WH - 19 x 40W Zoom Wash Moving Head (White)

Online Stock Only. Local pickup may be available on some items with prior arrangement. We Price Match please call in or text 04 5555 1974.


The Event Lighting HAVOCW19X40-WH is a powerhouse Zoom Wash Moving Head designed to transform any event or production. Boasting 19 x OSRAM 40W 4-in-1 LEDs, it delivers a stunning spectrum of colours and precise illumination. With a versatile beam angle ranging from 6° to 50°, you can effortlessly tailor the coverage to suit any venue or stage.


With advanced features like 16-bit auto repositioning, pixel control, and motorised zoom from 6° to 50°, you have complete control over your lighting effects and beam shaping.


With flexible operational modes including DMX, auto, and sound active, navigation is intuitive via the 2.4" colour LCD control panel with battery backup. Upgradeable via DMX, the HAVOCW19X40-WH ensures your lighting capabilities stay cutting-edge. Crafted with durability in mind, the matte white ABS and steel housing contains a sensor-controlled fan, ensuring efficient cooling in a robust and reliable form-factor.


The HAVOCW19X40-WH comes with True1 in/out, 3/5 pin in/out and includes 2 x omega brackets for quick and easy installation.





Specifications:


Photometrics



  • Light Source: 19 x OSRAM 40W RGBW 4-in-1 LEDs

  • Beam Angle: 5°-45°

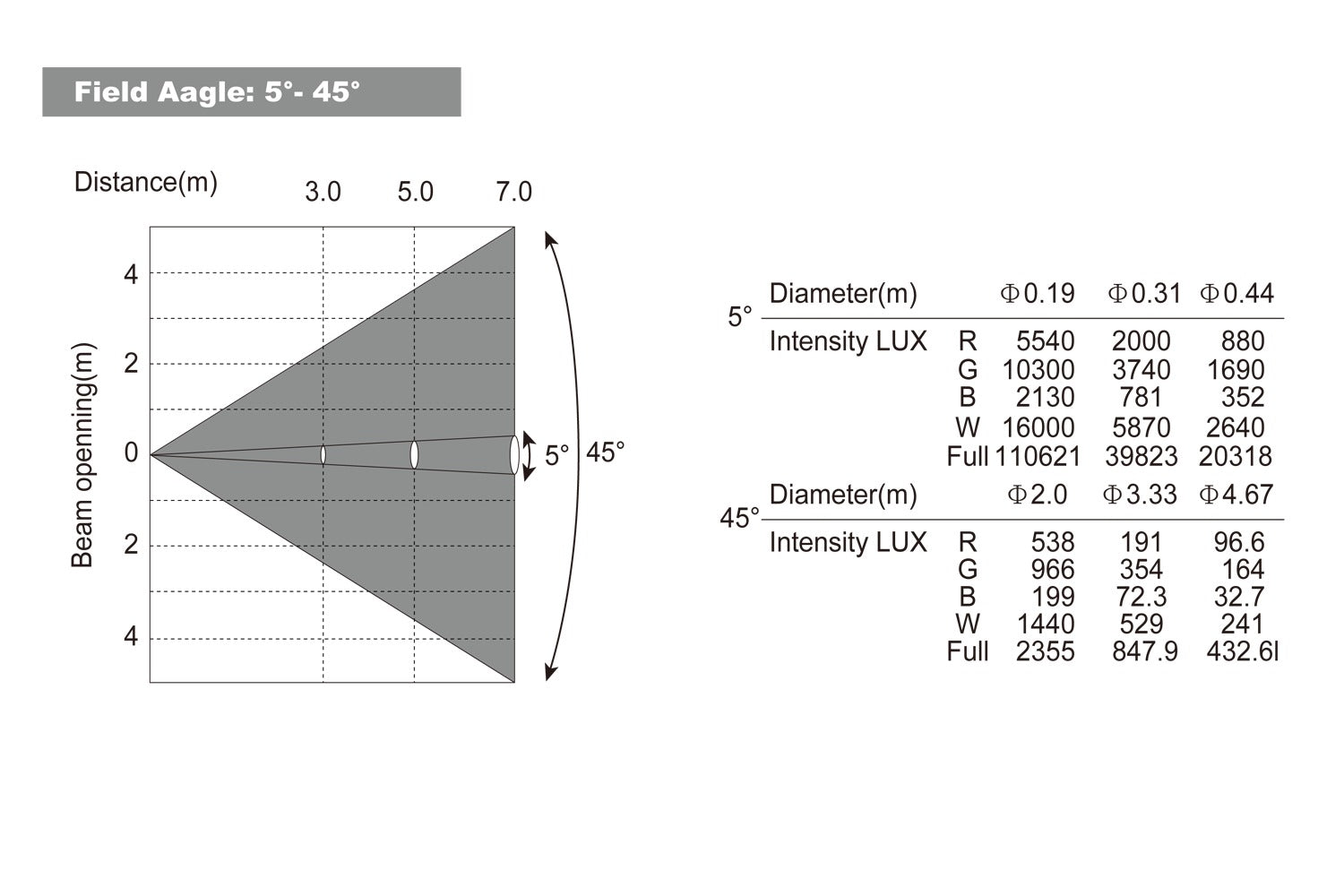

  • Output: 4,303 lumen, 107,431 lux @ 5°, 3m; 2,355 lux@ 3m @ 45°

  • LED Lifespan: 60,000 hours


Effects



  • Dimming: 0-100%

  • Pixel Control: Yes

  • Strobe: Yes

  • Zoom: Motorised, 5°-45°


Movement



  • 16-bit auto reposition

  • Pan: 630° (2.2s) / 540° (2.0s)

  • Tilt: 265° (0.85s)


Power



  • Input Voltage: 100-240V AC, 50/60Hz

  • Max power consumption: 589W

  • Connection: True1 in/out


Control



  • Control Protocol: DMX512, RDM


  • DMX Channels: 19 / 98 / 18 / 20

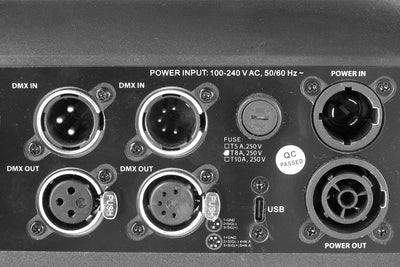

  • Control Interface: 3-pin DMX in/out, 5-pin DMX in/out

  • Display: 2.4" colour LCD control panel with battery backup

  • Software: Upgradeable via DMX


Housing

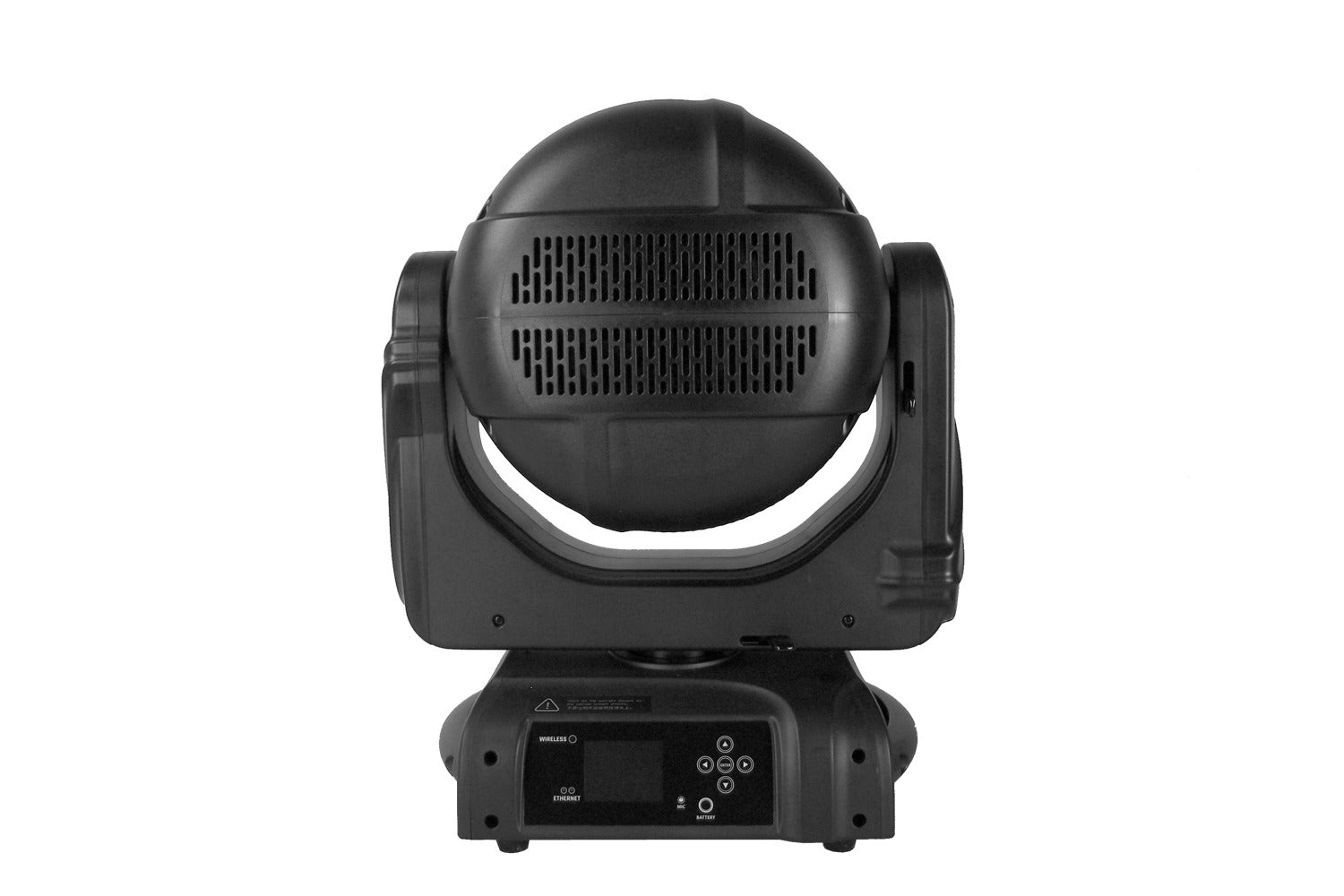

  • Housing Materials: ABS and steel, matte white finish

  • Cooling: Sensor controlled fan

  • Net Weight: 20.9kg

  • Rigging: 2 x Omega bracket with 1/4 turn quick locks


Misc







Download product datasheet


Download DMX Chart


Download user manual


Warranty: 3 years
