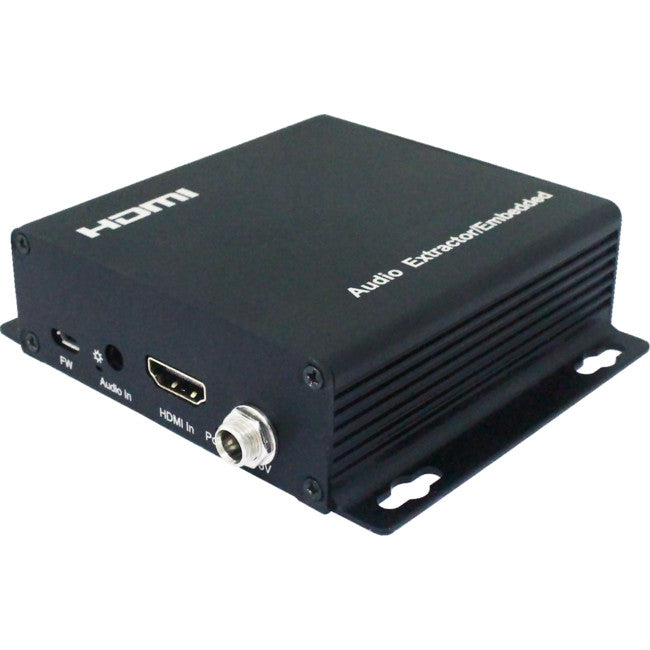

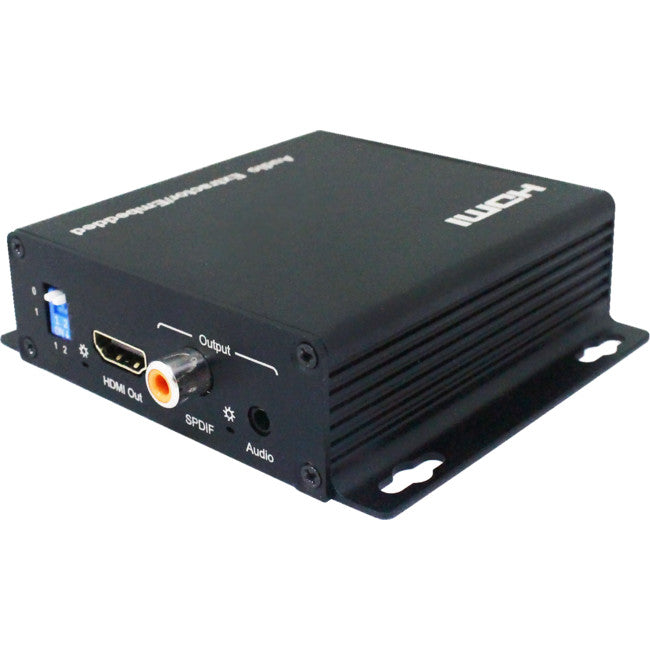

Insert the HA03 between your source and display, embed orextract the audio to 2 ch or 5.1 ch via dip switch on the side.
Features
- Support audio embedding, AUTO, SPDIF5.1, Analog Audio PCM2.0 output
- Support 2 DIP switch to extract the digital HDMI audiosignal from the HDMI input to 2 channel analog stereo outputor 5.1 channel audio output
- Support audio uncompressed PCM, Dolby, DTS
- Supports resolution up to 4K2K60HZ, bandwidth 18Gbps
- HDCP2.2/1.4 Compliant
- Support CEC
- Support firmware updating through the USB port
Specifications
- Operating Temperature Range: -5°C to +40°C(+23°F to +104°F)
- Operating Humidity Range 5 to 90%RH (No Condensation)
- Input Video Signal 0.5-1.0 Volts P-P
- Input DDC Signal 5 volts p-p(TTL)
- Support Video format
- 4Kx2K/1080P/1080i/720P/576P/576i/480P/480i
- 3D video
- Support Video Color Format xv-YCC/deep color 36bit
- Support Audio Format PCM, DTS-HD Master Audio, Dolby true-HD, etc.
- Data transfer speed rate 18Gbps (Maximum)
- HDCP Compliant HDCP2.2/1.4
- Power consumption: 5V 1.5watts(Maximum)
- Dimension (LxWxH) 104.4x89x28.3mm
- Net Weight 155g
