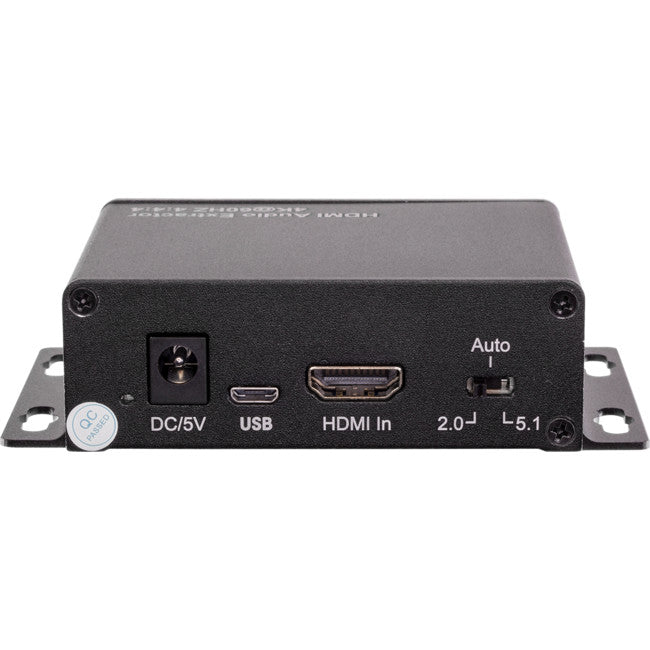

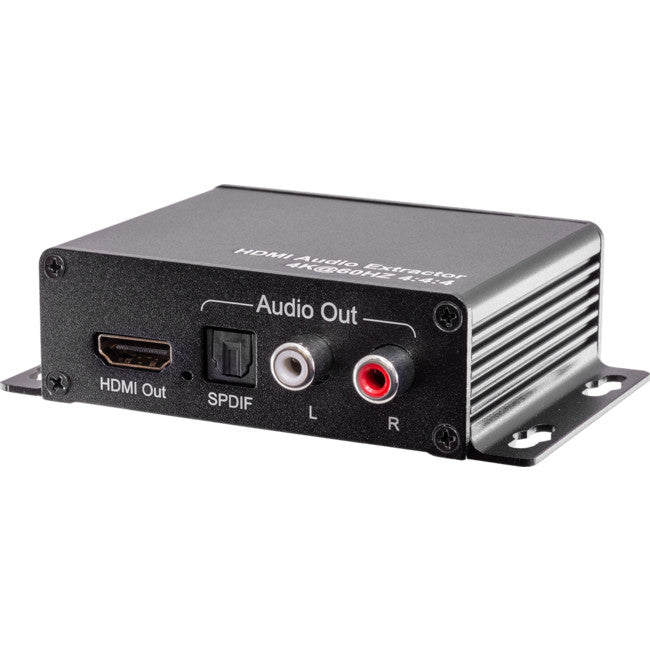

HA02 HDMI AUDIO EXTRACTOR 18G PRO2 SX-HC03

FEATURES

• Three Audio EDID Settings: Auto/2.0 CH/5.1CH
• Extract the digital HDMI audio signal from the HDMI input to 2 channel analog stereo output or 5.1 channel Audio output
• Support PCM and Dolby DTS
• Supports resolution up to 4K@60Hz YUV4:4:4
• Supports deep colour up to 36bit
• HDCP2.2/1.4 Compliant
• Support CEC
• Support firmware updating through USB port

SPECIFICATIONS

Operating Temperature Range	-5 to +35
Operating Humidity Range	5 to 90%RH (No Condensation)
Input Video Signal	0.5-1.0 Volts P-P
Input DDC Signal	5 volts p-p(TTL)
Support Video format	4Kx2K/1080P/1080i/720P/576P/576i/480P/480i 3D video
Support Video Colour Format	xv-YCC/deep colour 36bit
Support Audio Format	PCM / DTS-HD Master Audio / Dolbytrue-HD etc.
Data transfer speed rate	18Gbps (Maximum)
Power consumption	2watts(Maximum)
Dimension (LxWxH)	104.4x64x28.3mm
Net Weight	175g

Note: Specifications are subject to change without notice. Mass and dimensions are approximate.

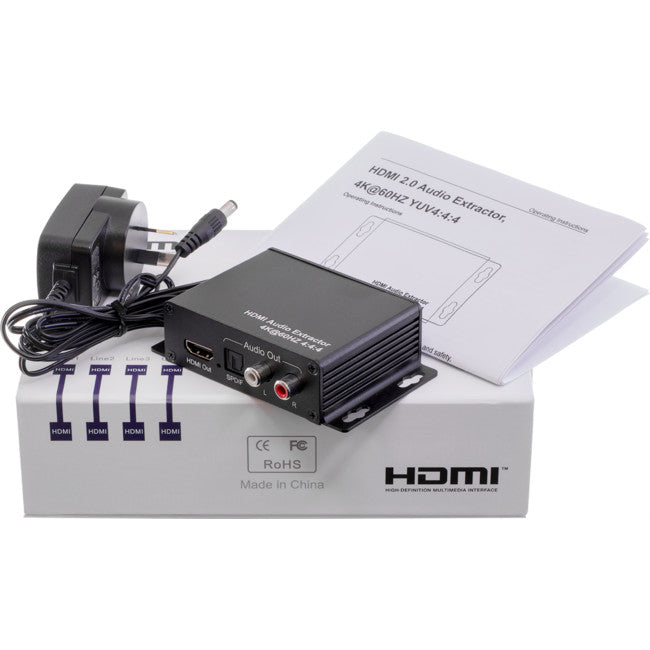

PACKING CONTENTS

1. Main Unit. Mini 4K HDMI Audio Extractor
2. DC 5V Power Supply
3. Operating Instructions
