GS1008PHV2 8 PORT GIGA SWITCH WITH 4 POE+ PORTS & DIP SWITCH EDIMAX 09051639

Sold Out $99.00

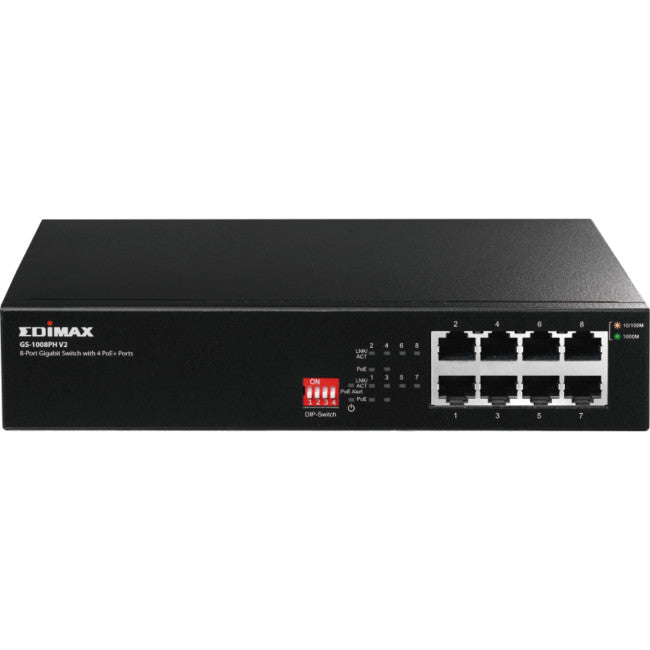

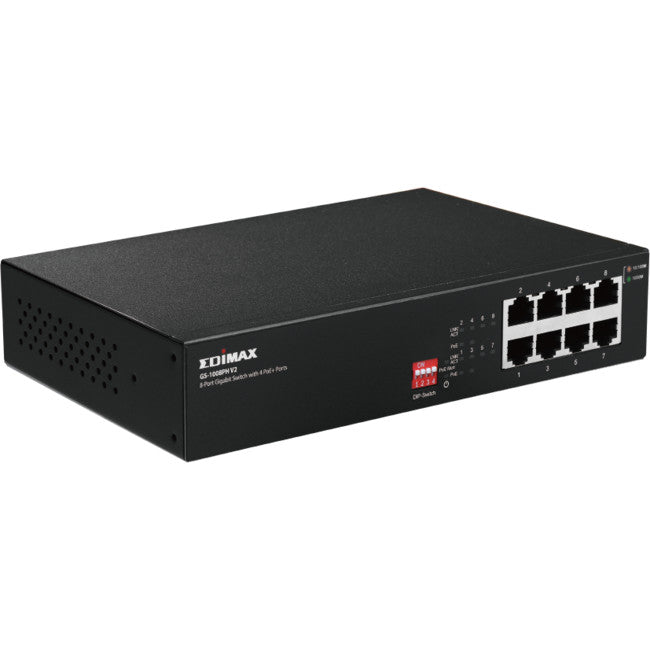

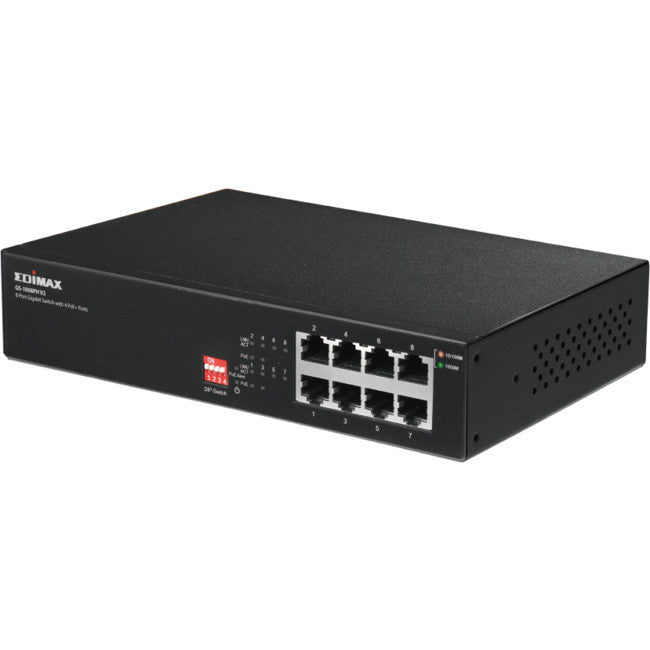

8-Port Gigabit Ethernet Switch With 4 PoE+ Ports and DIP Switch

Eight 10/100/1000Mbps Gigabit ports and four PoE+ ports.
IEEE 802.3af/at PoE compliant (ports 1 - 4) for simplified deployment and installation.
Up to 30W per PoE port (total power budget: 70W) for powering PoE-enabled devices.
Auto-detection of powered devices (PD) and power consumption levels.
Hardware DIP switch for “Standard” and “Extend” mode selection; the “Extend” mode features 30-watt PoE transmit distance of 200m at speed of 10Mbps.
Port-based VLAN and Loop Protection features.
Supports 802.1p Quality of Service (QoS).

SPECIFICATIONS

Hardware
Ports	8 RJ-45 10/100/1000Base-T ports 4 RJ-45 10/100/1000Base-T PoE+ ports
Transmission Method	Store and forward
LED Indicators	Power: Green LED LNK/ACT: Green LED (Port 1 – Port 8) PoE: Green LED (Port 1 – Port 4) PoE Alert: Green LED (PoE overload alarm)
Fan	Fan-less
DIP Switch	PoE Extend, VLAN, QoS

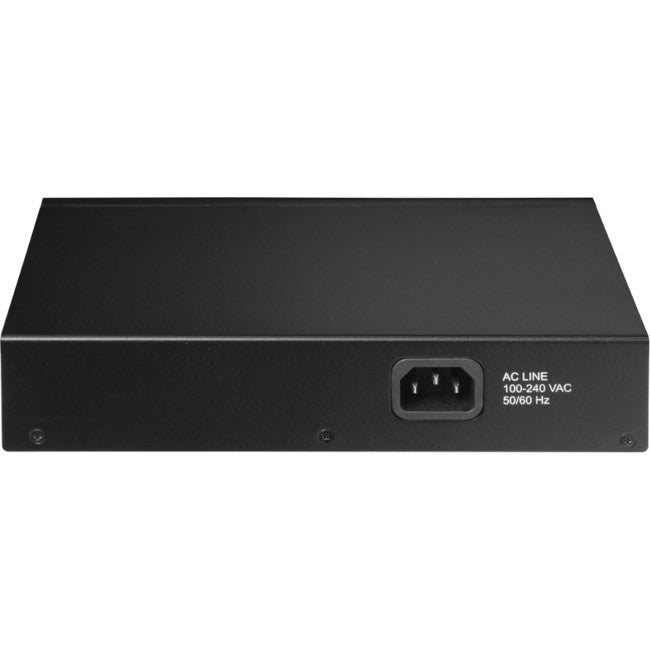

Power Requirements	Input: 100-240V AC Power Supply: 80W
Power Consumption	5W
Dimensions (L x W x H)	215.5mm x133mm x 42mm
Weight	927g
Performance
Switching Capacity	16G
MAC Address	8K
Buffer Memory	128Kb
Jumbo Frames	9KB
Filtering / Forwarding Rates	1000Mbps port - 1488,000pps 100Mbps port - 148,800pps 10Mbps port - 14,880pps
Power over Ethernet
Standard	IEEE 802.3af IEEE 802.3at
Power Output	Up to 30W per port
Pin Assignment	1/2(+), 3/6(-)
PoE Power Budget	70W
Environment
Temperature	Operating: 0 ~ 40 °C Storage: -40 ~ 70 °C
Humidity (Non-condensing)	Operating: 10 ~ 90% Storage: 5 ~ 90%
Standards Compliance
Standards	IEEE 802.3 10BaseT Ethernet IEEE 802.3u 100BaseTX Fast Ethernet IEEE802.3ab 1000BASE-T IEEE 802.3af Power over Ethernet (PoE) IEEE 802.3at Power over Ethernet Plus (PoE+) IEEE 802.3x Full-duplex and flow control IEEE 802.3az Energy efficient Ethernet
Certifications	FCC, CE, LVD
