Features:
- Automatically adapt input voltage DC12V-24V
- Input standard DMX512 signal, 3-digital-display shows DMX address code.
- 4 channels output: 4096 greyscales each: logarithmic dimming, lamplight soft and stable without strobe flash.
- DMX Master mode, Slave mode available
- 8 colour changing modes and 10-speed scales in master mode.
- Indicator of the DMX512 signal receiving status.
- Wrong wiring protection at DMX port. Over-current protection and short circuit protection.
- Power loss memory function.
Specifications:
- Input Voltage: DC12V - DC24V
- Max Load Current:
- RGB: 3Ax3CH
- W: 9Ax1CH
- RGBW: 5Ax4CH
- Max Output Power:
12V -> RGB 36Wx3CH; W 108W; RGBW 240W
24V -> RGB 72Wx3CH; W 216W; RGBW 480W
- Grey Scale: 4096 levels x4
- Input Signal: DMX512/1990
- Output Signal: Constant Voltage PWM x4
- Decode Channel: 4CH

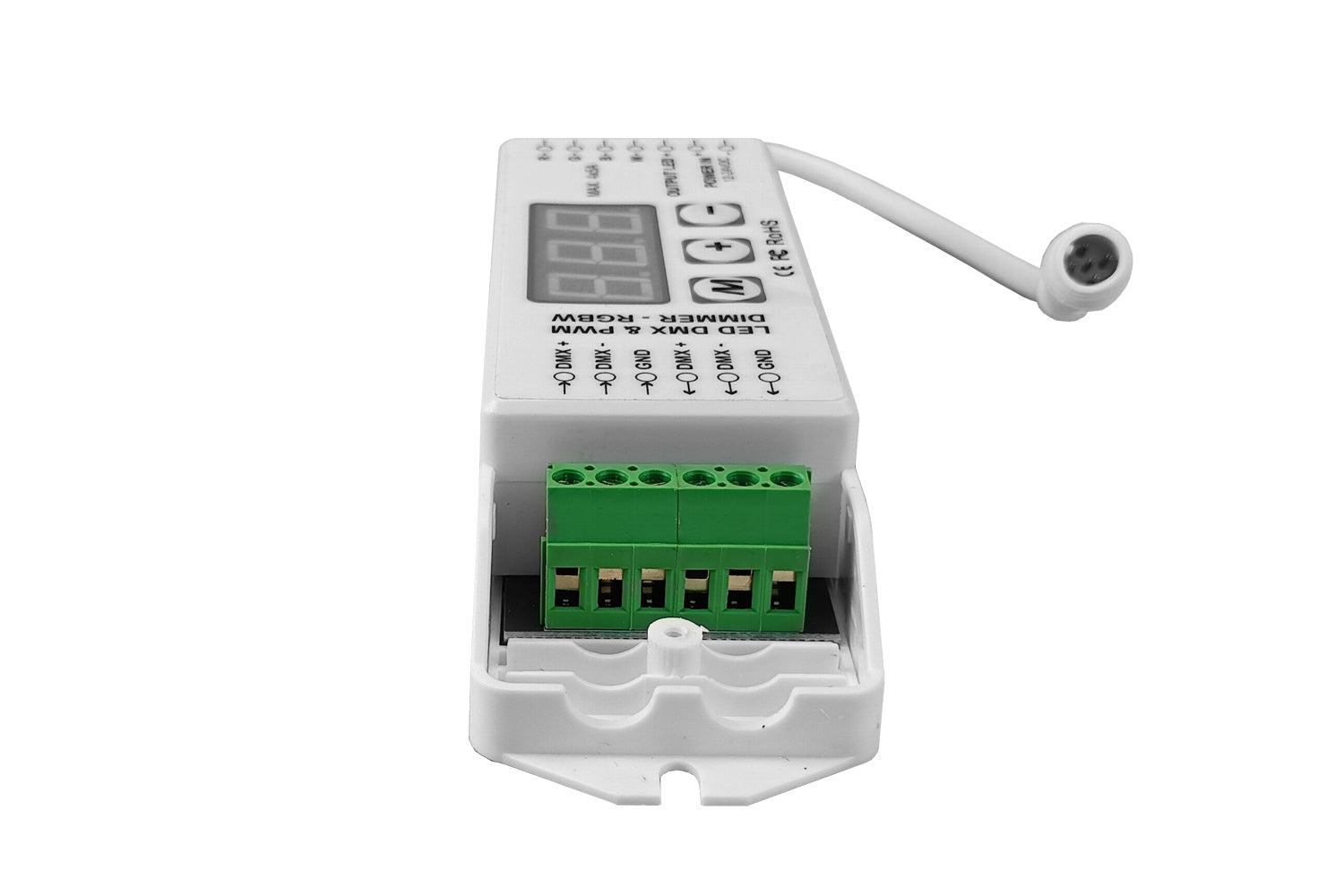

- DMX512 Socket: Terminal Block

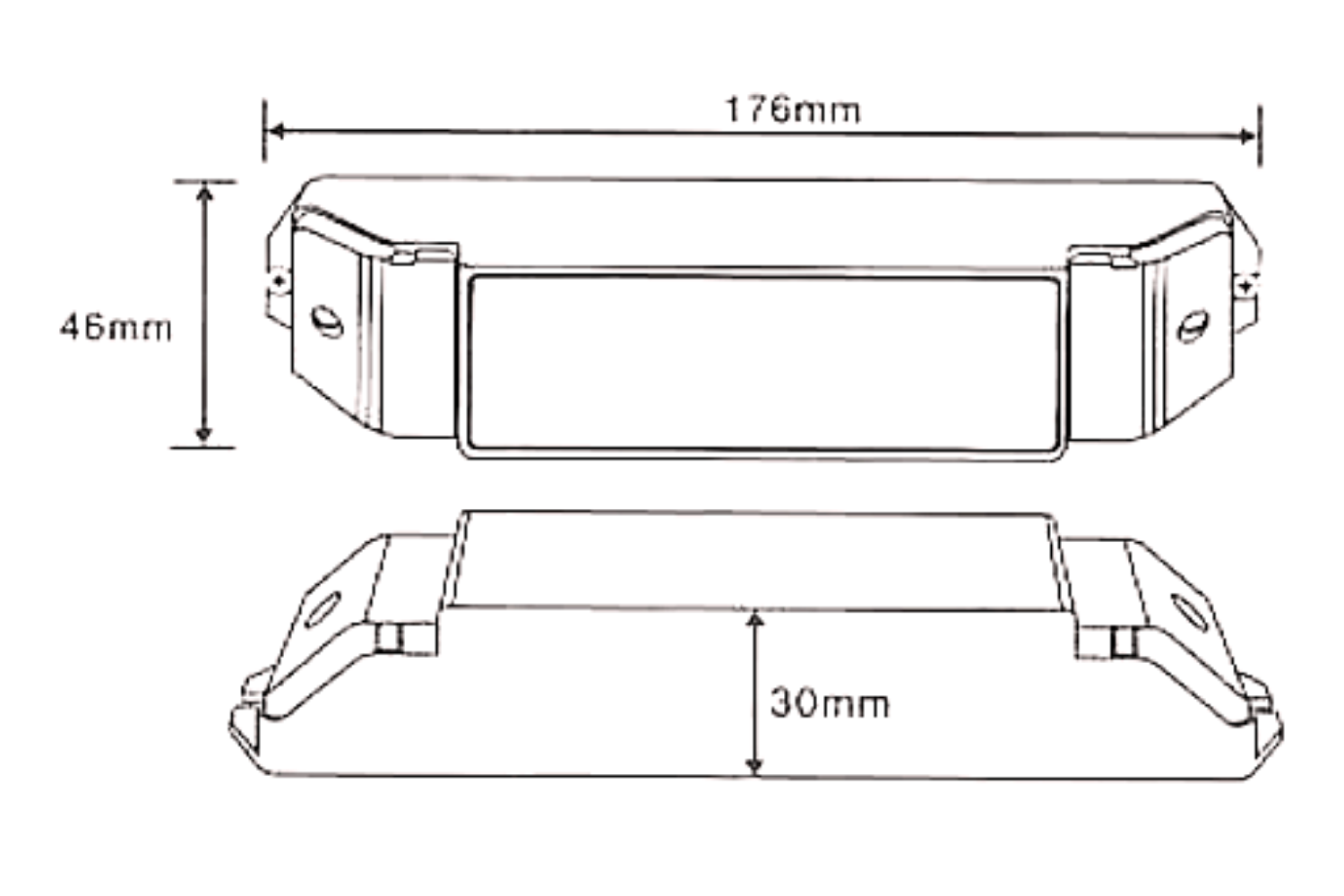

- Dimension: L176 x W46 x H30mm
- Weight: 175g
Download User Manual
Warranty: 1 year
