Event Lighting XLR5M5F5 - 5-pin DMX Cable (5m)

Online Stock Only. Local pickup may be available on some items with prior arrangement. We Price Match please call in or text 04 5555 1974.

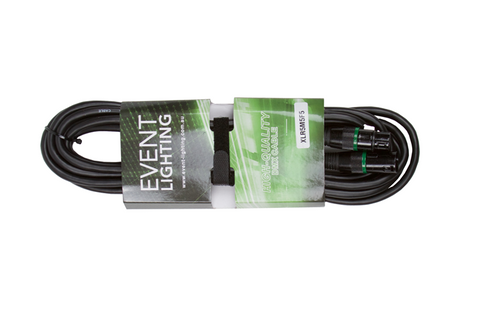

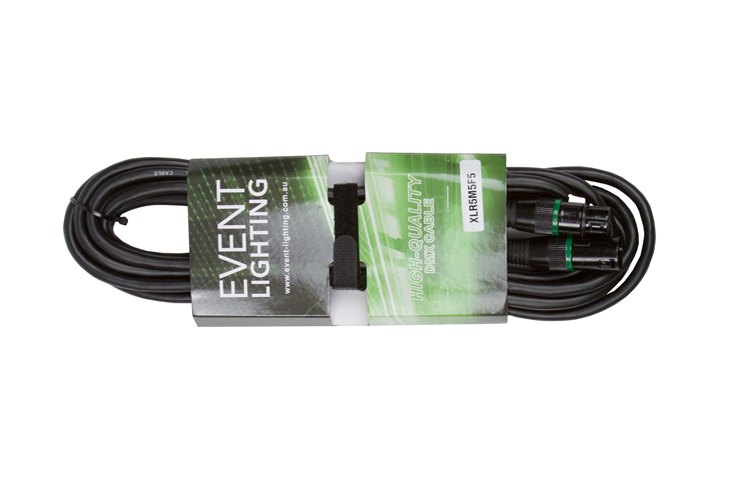

Event Lighting XLR5M5F5 is a 5-pin DMX Cable with a length of 5 metres and a green ring.


  • Length: 5 metres
  • Conductor: 0.34 mm2
  • Insulation: PE
  • Core arrangement: 4 cores, twisted
  • Shielding: AL/PET + Braided
  • Outer Jacket: PVC ф7.5 mm
  • Cable Material: 19x0.15mm core, 16x16x0.12 cotton, aluminium foil shield and 20x0.12 drain
  • 5 Pin XLR connector: Black metal connector with metal boot and rubber gland
  • The colour coding and clear heat shrink on the end of each cable indicates your DMX cables
  • 5m length, green ring.
  • Shipping Weight: 0.65 kg
  • Dimensions: 310 x 120 x 50 mm

Product Specification Sheet Download
