Wharfedale Pro
The WLA-1 Hybrid Curvature Array system…..is now…..ACTIVE.
The WLA-1A active system incorporates all the incredible hardware features of its passive brother – the WLA-1 System.
The EVO-Fold waveguides, the drivers created by Beyma in Europe and the Hybrid Curvature Array configuration are all included….but the new WLA-1A Active now brings powerful internal amplification and refined internal DSP processing to the party.
It has never been this easy to achieve stunning sonic results in a huge variety of venues.
Around the back of WLA-112A and WLA-115A are all the connections and control interfaces needed for a tidy system.
Select between 8 DSP presets with FIR filters and control the system remotely with the RS485 network facility.
The 12” and 15” elements use coaxial drivers from Beyma – which are manufactured in Europe.
This coaxial design gives consistent coverage on both Horizontal and Vertical planes – while competitive traditional two-way line arrays do not have consistent coverage in one axis at least by design.
WLA-112A and WLA-115A coaxial design gives consistent coverage and is unique. (Well, except for our own Wharfedale Pro WLA-1 passive models)
WLA-1A System gives constant coverage on both Horizontal and Vertical planes
Competitive traditional constant curvature two way systems do not have consistent coverage in one axis at least by design.
With a traditional 2-way array….arrays of 6 elements or more are simply not practical.
With the WLA-1 Hybrid Curvature design, arrays of up to 6 elements can be configured.

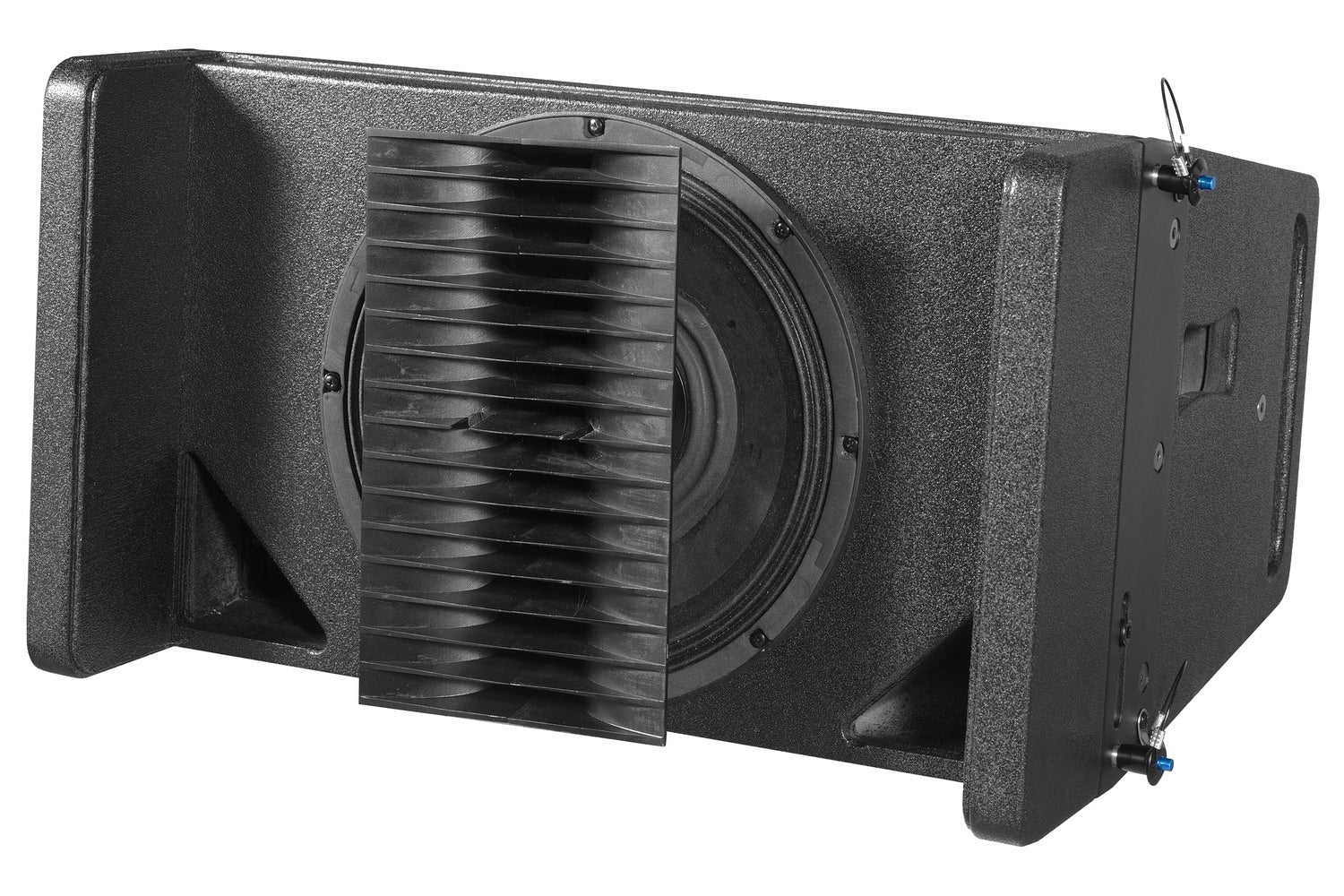

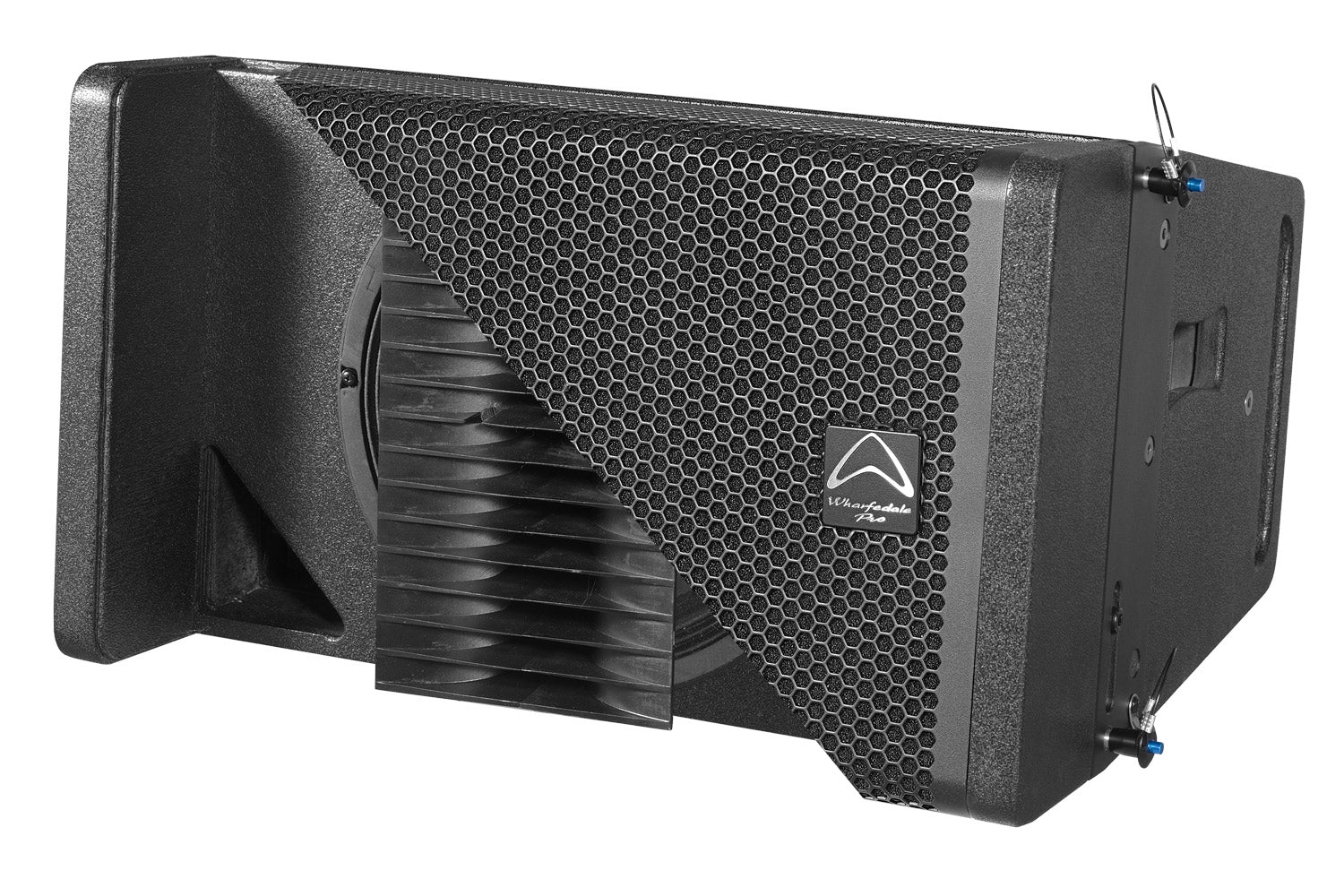

EVO-Fold reduces the usual phase issues that traditional 2-way line arrays have due to them having the drive units physically some distance apart in the array. One specially-designed coaxial mid-high frequency driver is loaded to a unique EVO-Fold horn. The EVO-Fold horn combines a unique folded and manifold design. The most advanced FEM technology has been used to create this.
The high-mid energy exits produce a uniphasic sound in the widest range of frequencies. And visually, the detail of the EVO-Fold waveguide is a work of art.
The 21″ subwoofer driver is manufactured by Beyma in Europe.
Extreme features… for extreme (and controllable) sub sound pressure levels.
Configure vertically and deploy as a ‘traditional’ flying array.
The optional WLA-1 Common Fly Frame ensures stability and that flying is easy.
Configure on the ground.
The optional SP-4 pole easily connects the 21″ sub to the tops. Dual angle 35 mm pole sockets in the full range elements makes angle adjustments safe and easy.
Configure a horizontal flying array.
The optional WLA-1 Link hardware connects three elements of either WLA-112A or WLA-115A to create a 3 unit horizontal array with 60 H x 100 V dispersion
When interconnecting WLA series active line array elements, quality, certified power cabling should be used.
Wharfedale Pro distributors also can supply Neutrik ™ powerCON cables as an accessory for sale.
These certified AC interconnecting cables use genuine Neutrik ™ NAC3FCA and NAC3FCB connectors for the ultimate in reliability and safety.
2 meters in length allows for system configuration flexibility while keeping excess cabling to a minimum.
A tidy solution for any Wharfedale Pro Active Line Array.
WLA-1A introduces a new Hybrid concept giving variable angles of 0, 5, 10 and 15 degrees.
Easily adjusted using the integral rigging brackets.
Configure the system how you like with the WLA-1 Common Fly Frame.
Subs at the top ? WLA-115A’s or WLA-112A’s. The Common Fly Frame supports all the different models in the WLA-1A series.
| Model Name | WLA-112A |
|---|---|
| System Typology | Hybrid Curvature Array |
| System Type | Active 12″ coaxial Bi-Amplified |
| Configuration | two-way |
| Frequency Response (+/-3 dB) | 55 Hz – 20 KHz |
| Frequency Range (- 10 dB) | 35 Hz – 25 KHz |
| Sensitivity 2.83 V/1 m | 101 dB |
| Calculated Maximum SPL @ 1 m | 133 dB |
| System Peak SPL | 139 dB** |
| * | |
| ** | level at 1 m under free field conditions using pink noise with crest factor 4, with dedicated preset. |
| Waveguide Type | EVO-Fold® |
| Nominal Coverage (H x V) | 100° x 20° |
| Signal Processing | DSP based, 8 FIR presets |
| Preset list | A) 1 to 2 SPKR 100 Hz HPF B) 3 to 4 SPKR 100 Hz HPF C) 5 to 6 SPKR 100 Hz HPF D) 1 SPKR E) 2 SPKR F) 3 to 4 SPKR G) 5 to 6 SPKR H) CUSTOM |
| Amplifiers | |
| Amplifier Design | Class D |
| Power Rating: | 1360 W Peak (1200 W LF + 160 W HF), 680 W Continuous (600 W LF + 80 W HF) |
| Thermal Protection | Amplifier Shut Down. Auto Reset |
| Low Line Voltage Shut Down | 60% Nominal Line Voltage |
| Driver Protection | Independent LF/ HF RMS and Peak Limiters |
| DC and Short Protection | Yes |
| Clip Limiter | Yes |
| Limiter Indicator | Red LED |
| Signal Indicator | Green LED |
| Power/Active Indicator | White LED |
| Find Function Indicator | Blue LED |
| Input Sensitivity | +4 dBu |
| Maximum Input Level | +18 dBu |
| Input Impedance | Balanced:10 KΩ |
| AC Power details – Power Supply | High Efficiency Dual Switching Mode Power Supply |
| Connectors | |
| Input Connector | Balanced socket XLR |
| Link Connector | Balanced pin XLR |
| UPDATE | USB Type B |
| NETWORK (RS485) | RJ45 |
| AC Power Options | AC 100-120 V~ and 220-240 V~, 50/60 Hz Automatic |
| Special Features | Copper Demodulating rings in both LF and HF units |
| Waterproof LF cone | |
| Shared High performing Ferrite magnet system design | |
| Rigging & Hardware: | 3 points for rigging |
| Vertical Splay angle range: | 0°- 5° – 10° – 15° |
| Horizontal Splay angle | 15° |
| Accessories: | WLA-1 FLY FRAME |
| Stand pole: | Dual Angle -2.5° / +7.5° |
| Handles: | 2 side / 2 back |
| Enclosure | |
| Cabinet Type | Trapezoid |
| Enclosure Material and finish | 15 mm plywood / Rhino Rock |
| Colour | Black paint |
| Grille Material & Finish | Powder coated perforated steel |
| Dimensions – Unpacked: | |
| Height Front | 332 mm / 13.1″. |
| Height Rear | 246.4 mm / 9.7″. |
| Width | 566 mm / 22.3″ |
| Depth | 465 mm / 18.3″ |
| Dimensions – Packed: | |
| Height | 661 mm / 26.0″ |
| Width Front | 550 mm / 21.7″ |
| Width Rear | 550 mm / 21.7″ |
| Depth | 410 mm / 16.7″ |
| Weight | |
| Net Weight | 30.4 kg / 66.9 lbs |
| Gross Weight | 32.8 kg / 72.2 lbs |
