TITAN PASSIVES
VERSATILE LEGENDS

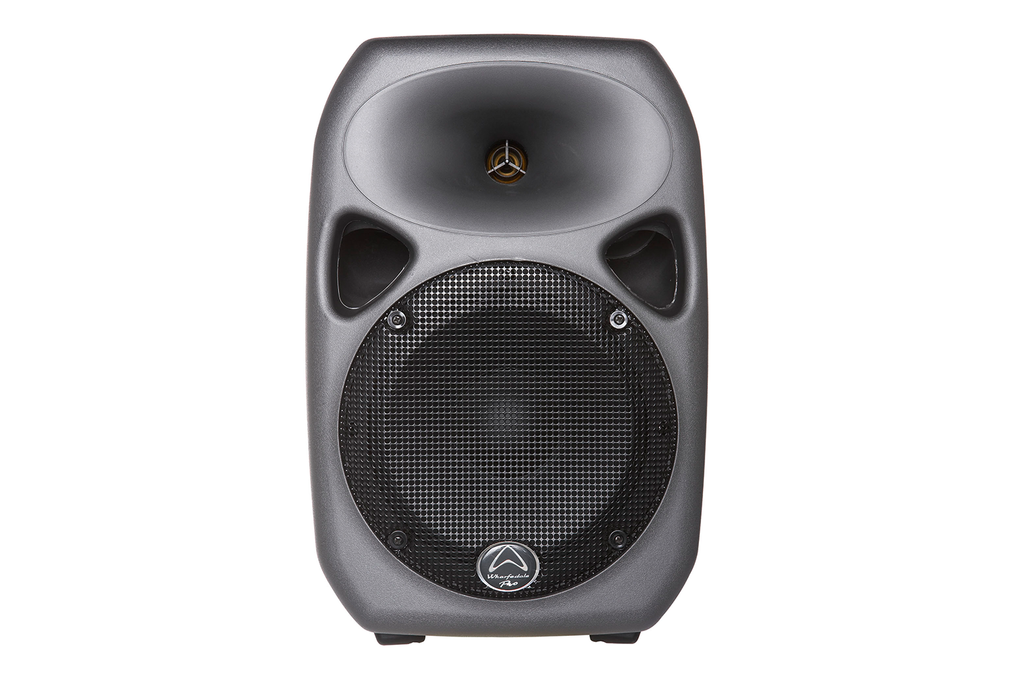

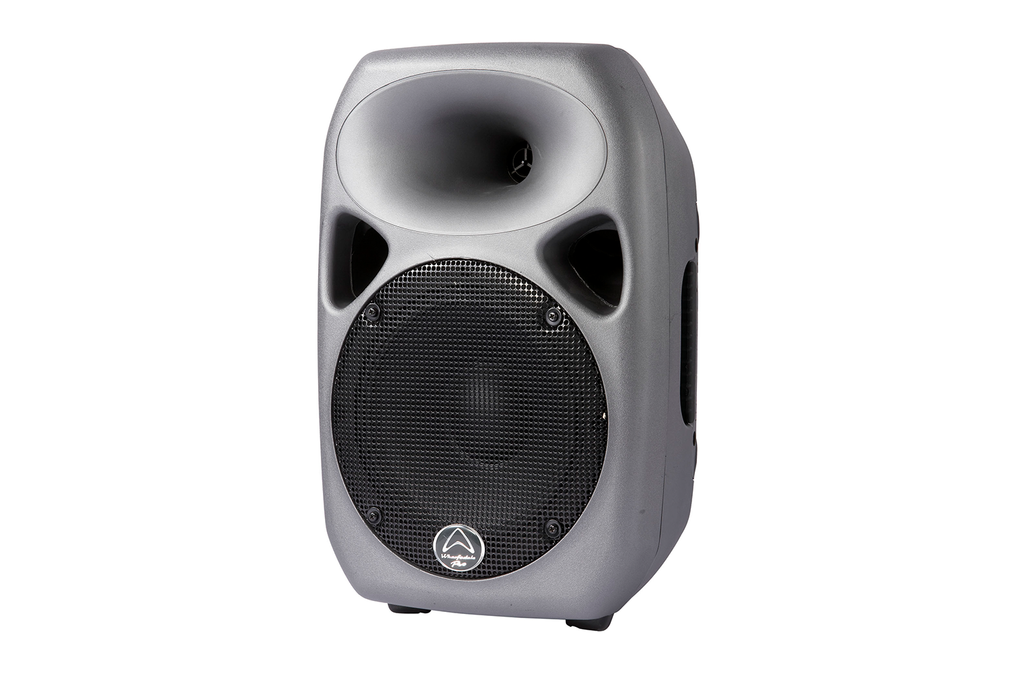

TITAN 8
LETS LOOK INSIDE
Titan loudspeakers pride themselves on custom Wharfedale Pro drivers. The IRIS-X HF compression driver used in Titan-X12, Titan-12Z and Titan-X15 feature a 1.75″ voice coil and is unique at this price point.
IRIS-X
The coil size and electrical sensitivity of a loudspeaker transducer is critical to its performance. Titan AX loudspeakers now include our proprietary IRIS X design which delivers Increased coil Radius and Increased electrical Sensitivity. The radius of the coil ensures smooth heat dissipation during prolonged high volume use, while the increased electrical sensitivity ensures that the transducer converts as much electrical power into sound output as the laws of physics allow.
A hot transducer wastes energy, risks damage and distorts. IRIS X reduces this through improved heat dissipation and improved efficiency.
In real-world terms, IRIS X transducers deliver higher SPL with less distortion. They lead the market with specifications and are designed and built entirely within Wharfedale Pro.
Increased Radius Increased Sensitivity
IP54 CERTIFIED
IP54 certification assures that the product has
WHAT GOES ON TOUR...
Protect a Titan in an optional padded tourbag.
Wharfedale Pro Titan Tourbags add exceptional protection for Active or Passive Titans, and to keep the same ergonomics and convenience the bag has been conveniently designed with removable front covers, rear panels, side panels and speaker pole sections so you can move and install your speaker without ever having to take the tourbags off.
The front cover removes to show a unique mesh material, which adds additional protection and leaves the sound unfettered.

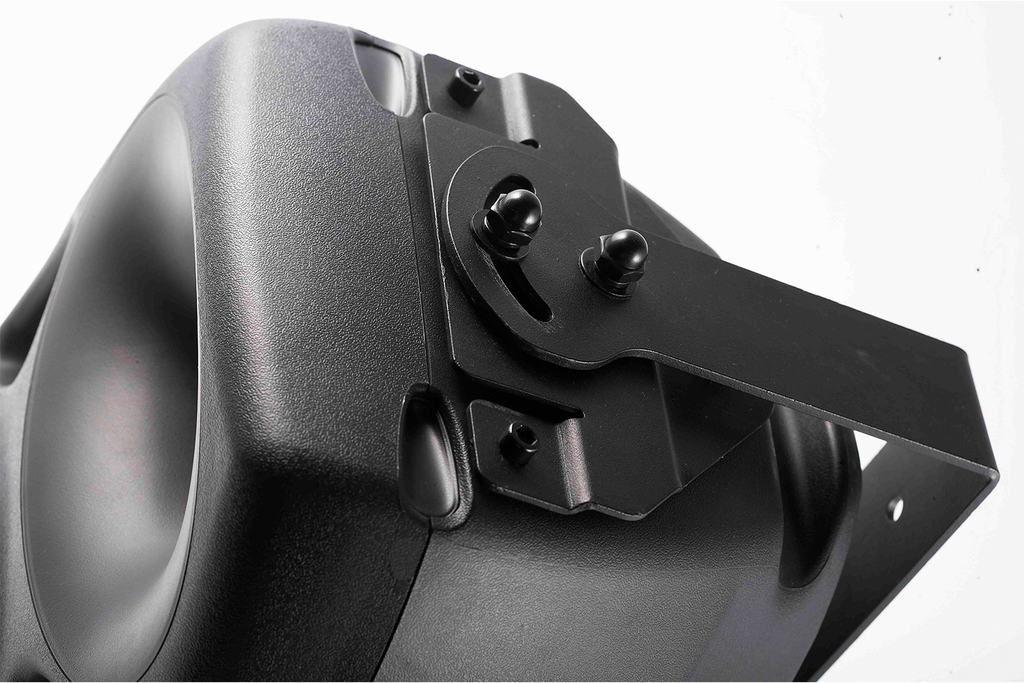

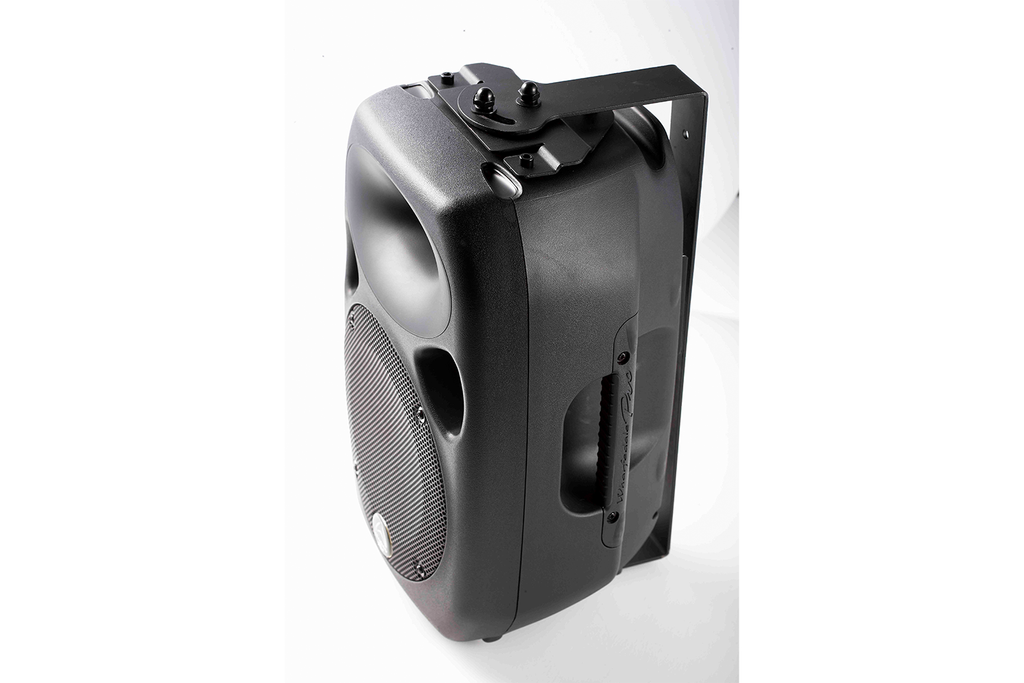

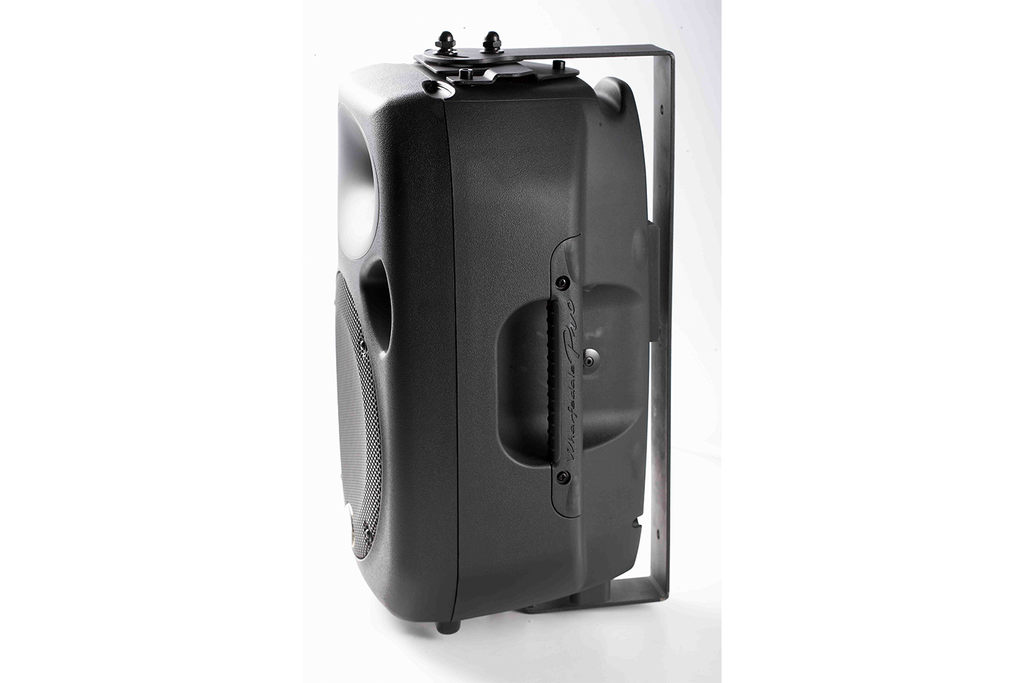

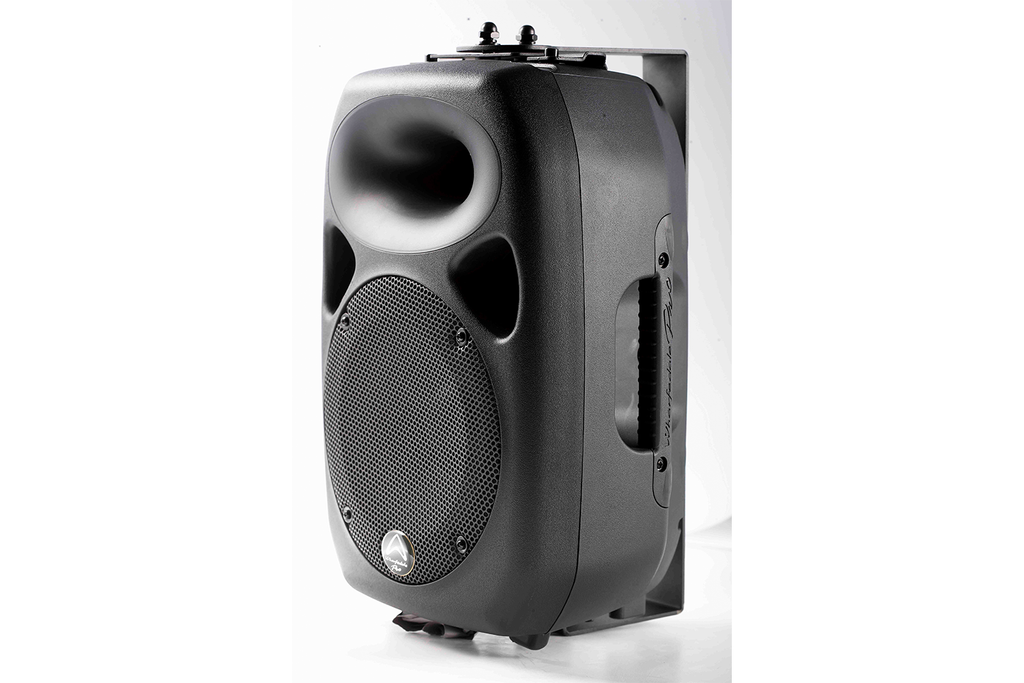

EASY INSTALL
All Titan loudspeakers are versatile. For on stage, or for an installation, there are fixtures and fittings to suit.
WPB-2, WPB-3, WPB-T8 are compatible with TITAN8.
| Model Name | Titan 8 |
| System Type | Passive |
| Configuration | 8″ 2-way |
| Frequency Response (+/-3 dB) | 70 – 20 KHz |
| Frequency Range (-10 dB) | 65 – 20 KHz |
| Sensitivity (2.83 v / 1 m) | 96 dB |
| Calculated Maximum SPL @1 m | 124 dB |
| System Rated Impedance | 8 Ω |
| Low Frequency Transducer | |
| Size | 203 mm / 8″ |
| Voice Coil Size | 38.86 mm / 1.53″ |
| Rated Impedance | 8 Ω |
| LF Power (re:AES2-2012) | 150 w |
| High Frequency Transducer | |
| HF Driver Type | Compression Driver |
| Voice Coil Size | 25 mm / 1″ |
| Exit Size | 30 mm / 1.2″ |
| Diaphragm Material | Mylar |
| Rated Impedance | 8 Ω |
| HF Power (re:AES2-2012) | 20 w |
| Nominal Coverage (H x V) | Elliptical waveguide 90° x 60° |
| Power | |
| System Power AES (RMS) | 150 w |
| System Programme Power | 300 w |
| System Peak Power | 600 w |
| Crossover frequency | 2-way 2.4 KHz / Linkwitz-Riley |

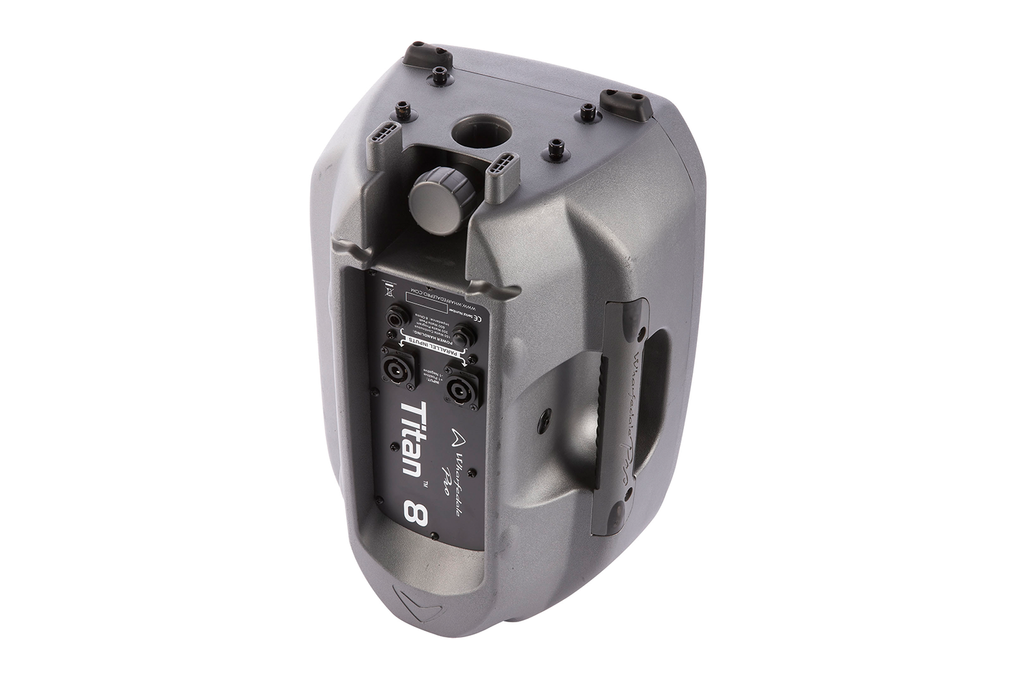

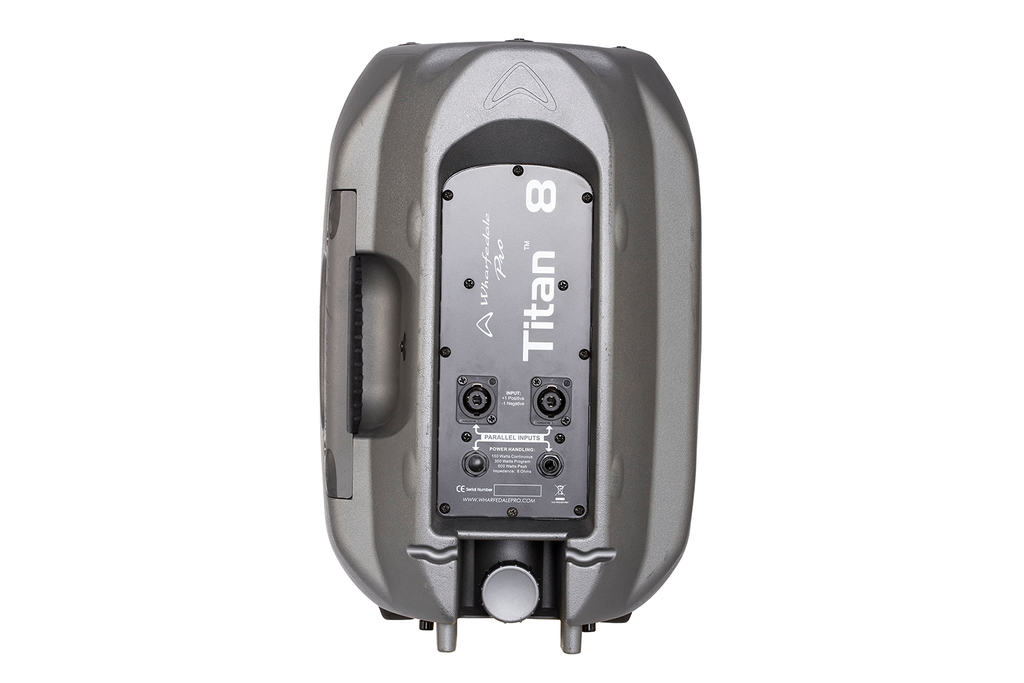

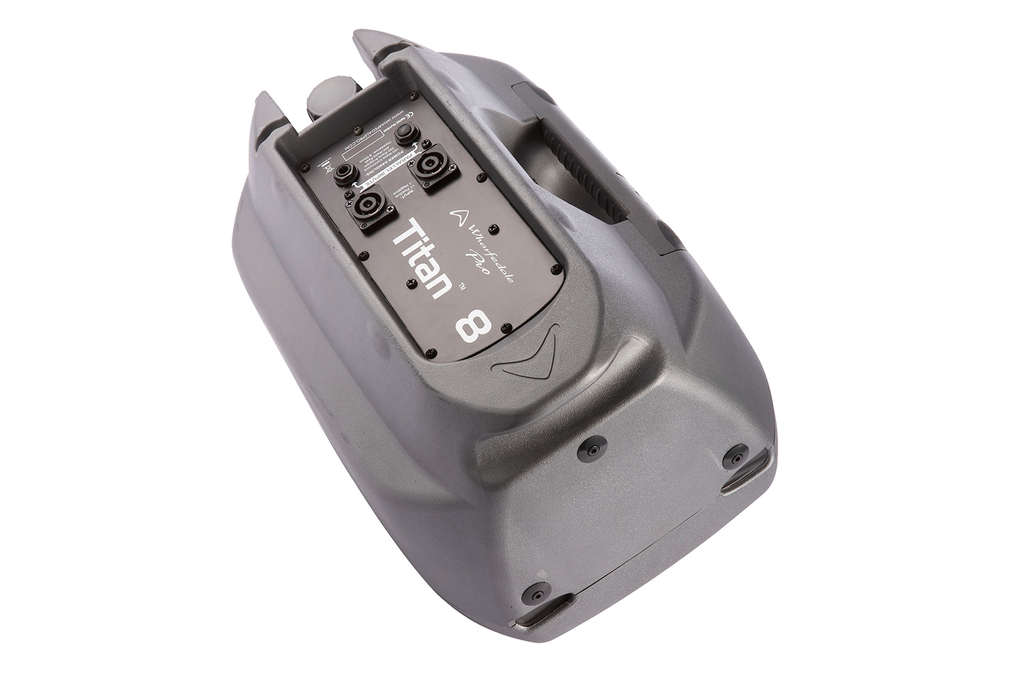

| Input Connector | 2 x NL4 (speakON compatible) |
| 2 x 1/4″ Jack | 2 x NL4 (speakON compatible) |
| Hardware | |
| Pole Mount | 35 mm with lock screw |
| Handles | 1 on side |
| Mounting points | M6 * 8 |
| Enclosure | |
| Enclosure Material | Trapezoidal / Polypropylene |
| Finish | Grey, Black, White |
| Grille Material & Finish | 1.2 steel |
| Dimensions – Unpacked | |
| Height | 396 mm / 15.59″ |
| Width Front | 266 mm / 10.47″ |
| Width Rear | 266 mm / 10.47″ |
| Depth | 221 mm / 8.7″ |
| Dimensions – Packed | |
| Height | 463 mm / 18.2″ |
| Width Front | 325 mm / 12.8″ |
| Width Rear | 325 mm / 12.8″ |
| Depth | 282 mm / 11.1” |
| Weight | |
| Net Weight (kg / lbs) | 5.5 kg / 12.1 lbs |
| Gross Weight (kg / lbs) | 7.5 kg / 16.5 lbs |
-
