PROGRAMME-X
LETS CHANGE THE PROGRAMME

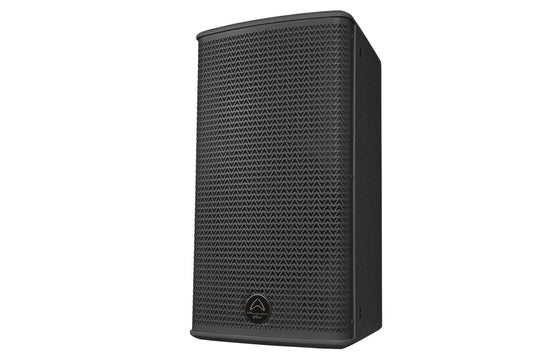

PROGRAMME-X108T
FIR PRESET LIBRARY
Download the FIR presets to get the most from your Programme-X system when using with the SC-48 FIR or DP-F / N series amplifiers.
LOW -Z
Standard Programme-X models are 8 Ohm and many models feature both Barrier strip and NL4 (speakON compatible) connectors
HI -Z
All Programme-X models are available with quality, specifically selected low distortion internal transformers. The ‘T’ models allow for easy installation into any 70 V / 100 V system. T Models can also operate at 8 Ohms.
EASY 4-U TO INSTALL
All Programme-X models are supplied with U-brackets for easy, quick and tidy installation.
SPECIFICATIONS
| Model Name | Programme-X108 / X108T |
|---|---|
| System Type | 8″ Passive |
| Configuration | Two-way |
| Frequency Response (+/-3 dB) | 60 Hz – 20 KHz |
| Frequency Range (- 10 dB) |
55 Hz – 20 KHz |
| Sensitivity (2.83v/1m) | 94 dB |
| Calculated Maximum SPL @1 m | 122 dB |
| System Rated Impedance | 8 Ω |
| Low Frequency Transducer | |
| Size | 203.2 mm / 8″ |
| Voice Coil Size | 51.5 mm / 2″ |
| Rated Impedance | 8 Ω |
| LF Power (re:AES2-2012) |
150 W |
| High Frequency Transducer | |
| HF Driver Type | Compression Driver |
| Voice Coil Size | 25.4 mm / 1″ |
| Exit Size | 25.4 mm / 1″ |
| Diaphragm Material | Rugged Phenolic |
| Rated Impedance | 8Ω |
| HF Power (re:AES2-2012) |
20 W |
| Nominal Coverage (H x V) |
90˚x 60˚ |
| Power | |
| System Continuous Power | 150 W |
| System Programme Power | 300 W |
| System Peak Power | 600 W |
| Crossover frequency | 2.0 KHz |
| Recommended HPF = BW 18 dB/oct. | 38 Hz |
| Input Connector | 2 x NL4 (speakON Compatible) + Barrier Strip |
| Input Connectors (T) | Barrier Strip |
| Transformer (T) | 100 V / 70 V |
| Transformer Taps (70 V) |
10,20,40,80 W |
| Transformer Taps (100 V) |
20,40,80 W |
| Hardware | |
| Rigging | M8 x 18 |
| Pole Mount | N/A |
| Enclosure | |
| Enclosure Material | MDF |
| Finish | Black / White Paint |
| Grille Material & Finish | Black / White Full (Steel) |
| Dimensions – Unpacked | |
| Height | 458 mm / 18.03″ |
| Width Front | 248 mm / 9.76″ |
| Width Rear | 173 mm / 6.8 “ |
| Depth | 275 mm / 10.83″ |
| Dimensions – Packed | |
| Height | 533 mm / 21.0″ |
| Width Front | 324 mm / 12.8″ |
| Width Rear | 324 mm / 12.8″ |
| Depth | 345 mm / 13.6″ |
| Weight | |
| Net Weight : Regular / T-Version | 10.02 Kg / 12.94 Kg |
| Gross Weight : Regular / T-Version | 11.8 Kg / 14.54 Kg |
| Included accessory | black/white U bracket |
