PROGRAMME-X
LETS CHANGE THE PROGRAMME

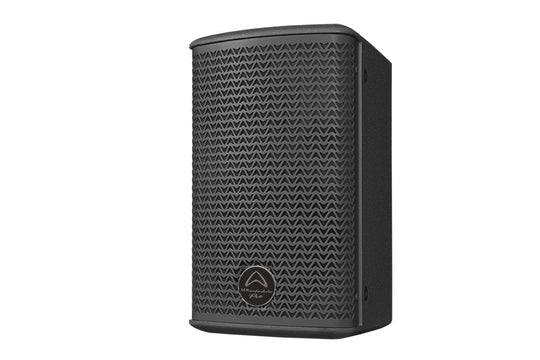

PROGRAMME-X105T
FIR PRESET LIBRARY
Download the FIR presets to get the most from your Programme-X system when using with the SC-48 FIR or DP-F / N series amplifiers.
LOW -Z
Standard Programme-X models are 8 Ohm and many models feature both Barrier strip and NL4 (speakON compatible) connectors
HI -Z
All Programme-X models are available with quality, specifically selected low distortion internal transformers. The ‘T’ models allow for easy installation into any 70 V / 100 V system. T Models can also operate at 8 Ohms.
EASY 4-U TO INSTALL
All Programme-X models are supplied with U-brackets for easy, quick and tidy installation.
SPECIFICATIONS
| Model Name | Programme-X105 / X105T |
|---|---|
| System Type | 5″ Passive |
| Configuration | Two-way |
| Frequency Response (+/-3 dB) | 75 Hz – 20 KHz |
| Frequency Range (- 10 dB) |
70 Hz – 20 KHz |
| Sensitivity (2.83v/1m) | 91 dB |
| Calculated Maximum SPL @1 m | 116 dB |
| System Rated Impedance | 8 Ω |
| Low Frequency Transducer | |
| Size | 127 mm / 5″ |
| Voice Coil Size | 25.5 mm / 1″ |
| Rated Impedance | 8 Ω |
| LF Power (re:AES2-2012) |
65 W |
| High Frequency Transducer | |
| HF Driver Type | Dome Tweeter |
| Voice Coil Size | 25.4 mm / 1″ |
| Exit Size | 25.4 mm / 1″ |
| Diaphragm Material | Titanium |
| Rated Impedance | 8Ω |
| HF Power (re:AES2-2012) |
15 W |
| Nominal Coverage (H x V) |
60˚ x 60˚ |
| Power | |
| System Continuous Power | 80 W |
| System Programme Power | 160 W |
| System Peak Power | 320 W |
| Crossover frequency | 2.3 KHz |
| Recommended HPF = BW 18 dB/oct. | 58 Hz |
| Input Connector | Barrier Strip |
| Input Connectors (T) | Barrier Strip |
| Transformer (T) | 100 V / 70 V |
| Transformer Taps (70 V) |
7.5,15,30,60 W |
| Transformer Taps (100 V) |
15,30,60 W |
| Hardware | |
| Rigging | M8 x 14 |
| Pole Mount | N/A |
| Enclosure | |
| Enclosure Material | MDF |
| Finish | Black / White Paint |
| Grille Material & Finish | Black / White Full (Steel) |
| Dimensions – Unpacked | |
| Height | 304 mm / 11.97″ |
| Width Front | 184 mm / 7.24″ |
| Width Rear | 130 mm / 5.12″ |
| Depth | 205 mm / 8.07″ |
| Dimensions – Packed | |
| Height | 379 mm / 14.9″ |
| Width Front | 250 mm / 9.8″ |
| Width Rear | 250 mm / 9.8″ |
| Depth | 274 mm / 10.8″ |
| Weight | |
| Net Weight : Regular / T-Version | 5.22 Kg / 6.42 Kg |
| Gross Weight : Regular / T-Version | 6.59 Kg / 7.14 Kg |
| Included accessory | black/white U bracket |
