Event Lighting T3B5L1BK - 290mm 5 chord Spigot box truss black (1m)

Event Lighting T3B5L1BK - 290mm 5 chord Spigot box truss black (1m)

Event Lighting T3B5L1BK - 290mm 5 chord Spigot box truss black (1m)

Event Lighting T3B5L1BK - 290mm 5 chord Spigot box truss black (1m)

Event Lighting T3B5L1BK - 290mm 5 chord Spigot box truss black (1m)

Event Lighting T3B5L1BK - 290mm 5 chord Spigot box truss black (1m)

Event Lighting T3B5L1BK - 290mm 5 chord Spigot box truss black (1m)

Event Lighting T3B5L1BK - 290mm 5 chord Spigot box truss black (1m)

Event Lighting T3B5L1BK - 290mm 5 chord Spigot box truss black (1m)

$303.00

Online Stock Only. Local pickup may be available on some items with prior arrangement. We Price Match please call in or text 04 5555 1974.

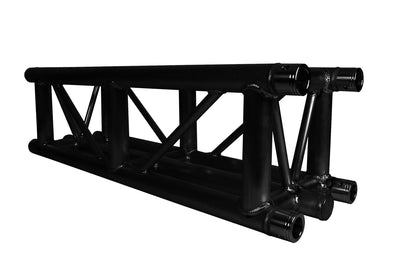

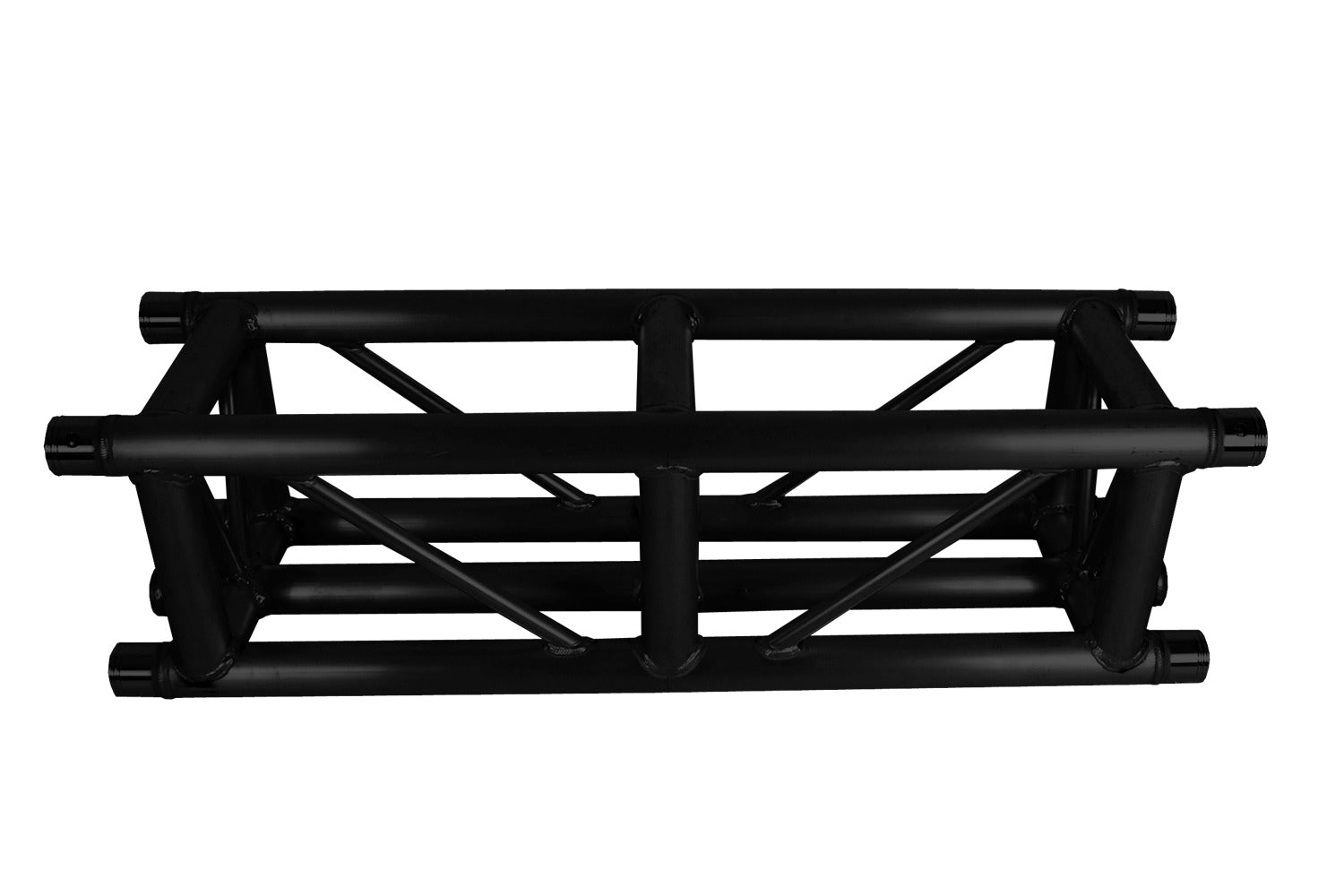

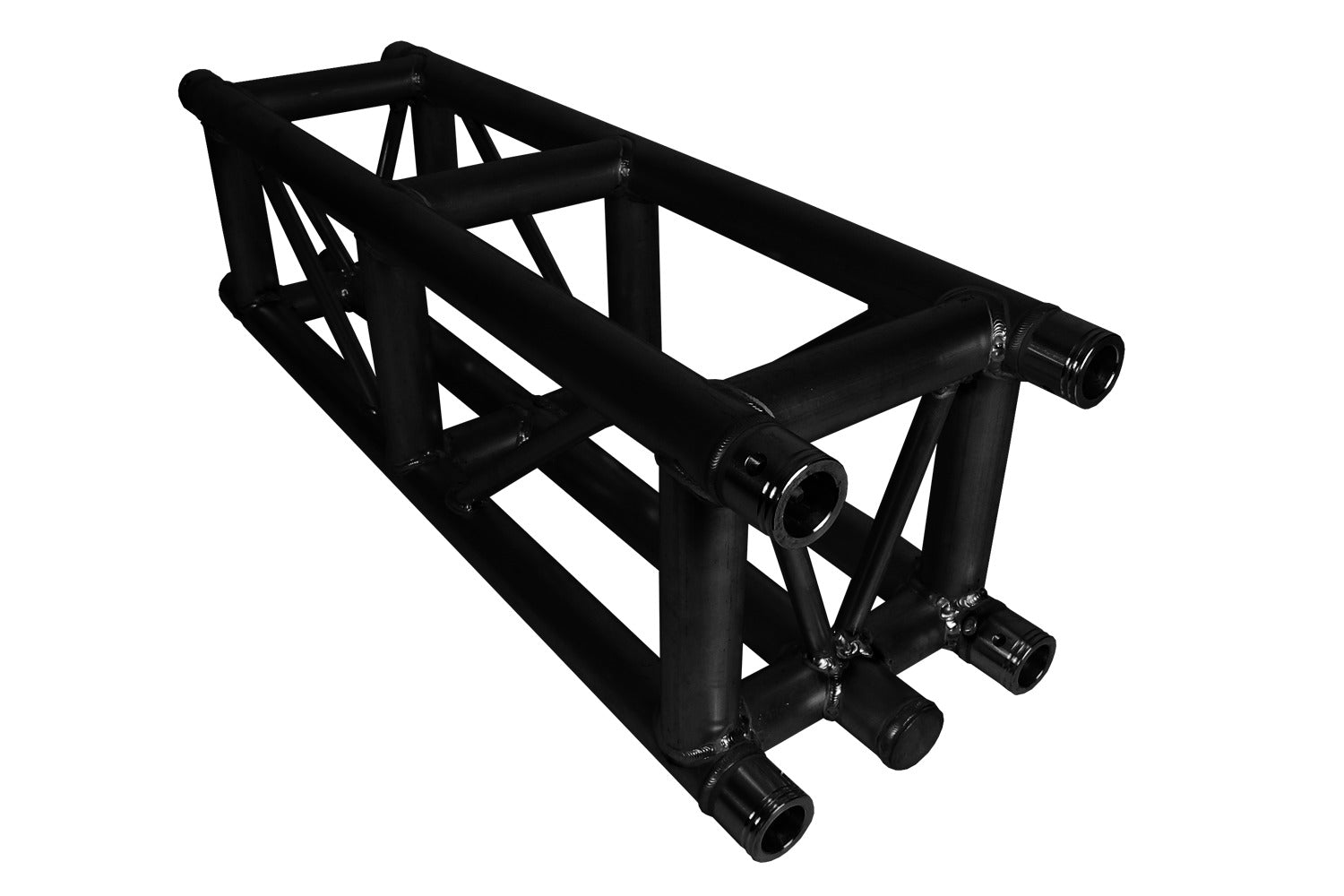

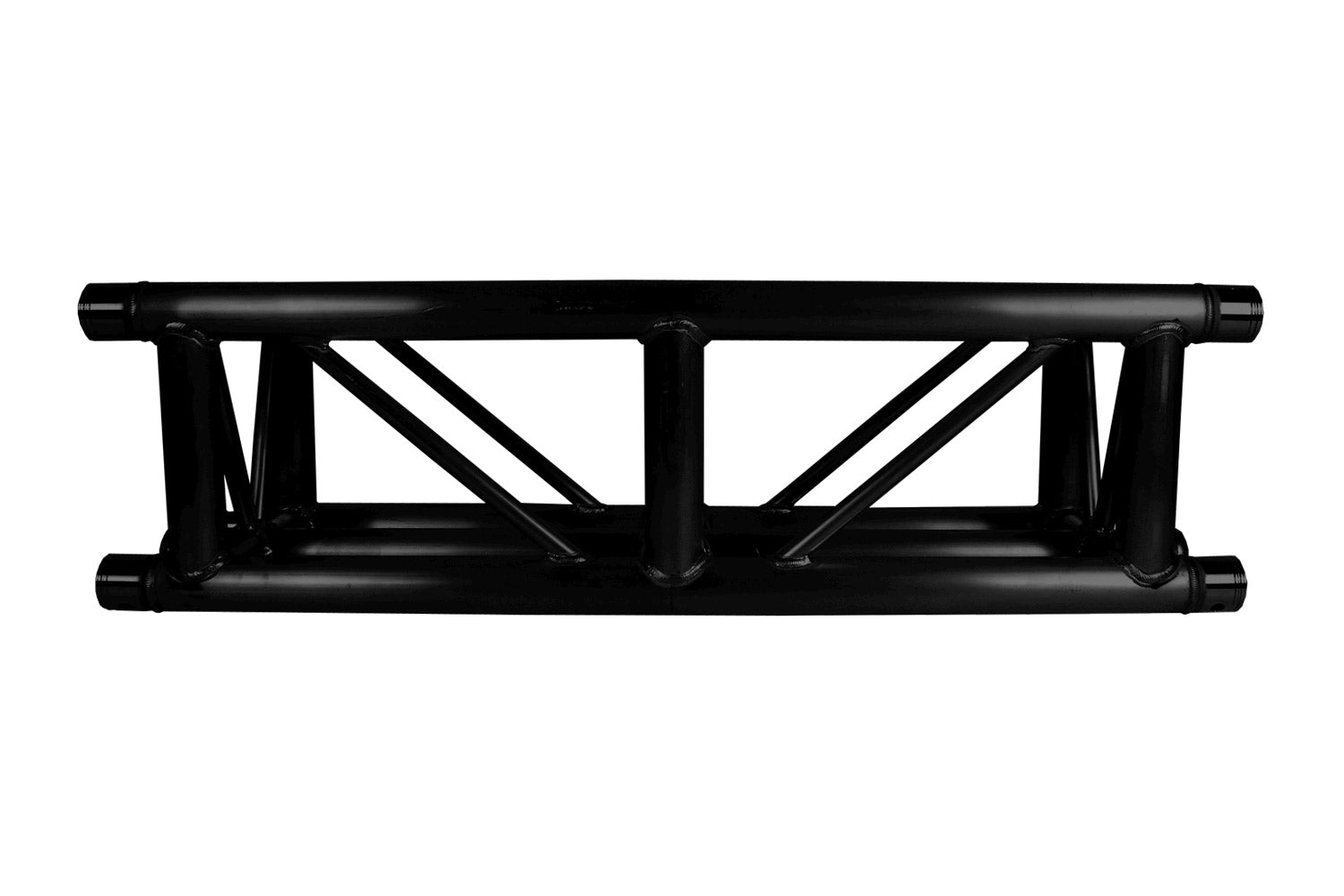

290mm 5 chord Spigot box truss, black (1m)

Main Tube: 50mm x 2mm
Vice Brace: 50mm x 2mm
Diagonal Brace: 25mm x 2mm
Materials: Aluminium alloy 6061-T6
Finishing: Black, powder coated
Rating: TUV
Dimensions (LxWxH): 290 x 290 x 1000mm

Span (m)	Centre Point Load (kg)	Deflection (mm)	Uniform Load (kg)	Deflection (mm)
2	1311	2	1403	2
3	1000	7	1286	5
4	683	10	1103	11
5	620	18	1000	13
6	478	26	786	18
7	410	39	621	24
8	401	46	605	36
9	300	50	558	45
10	286	59	480	49
11	213	66	423	56
12	207	68	364	68
