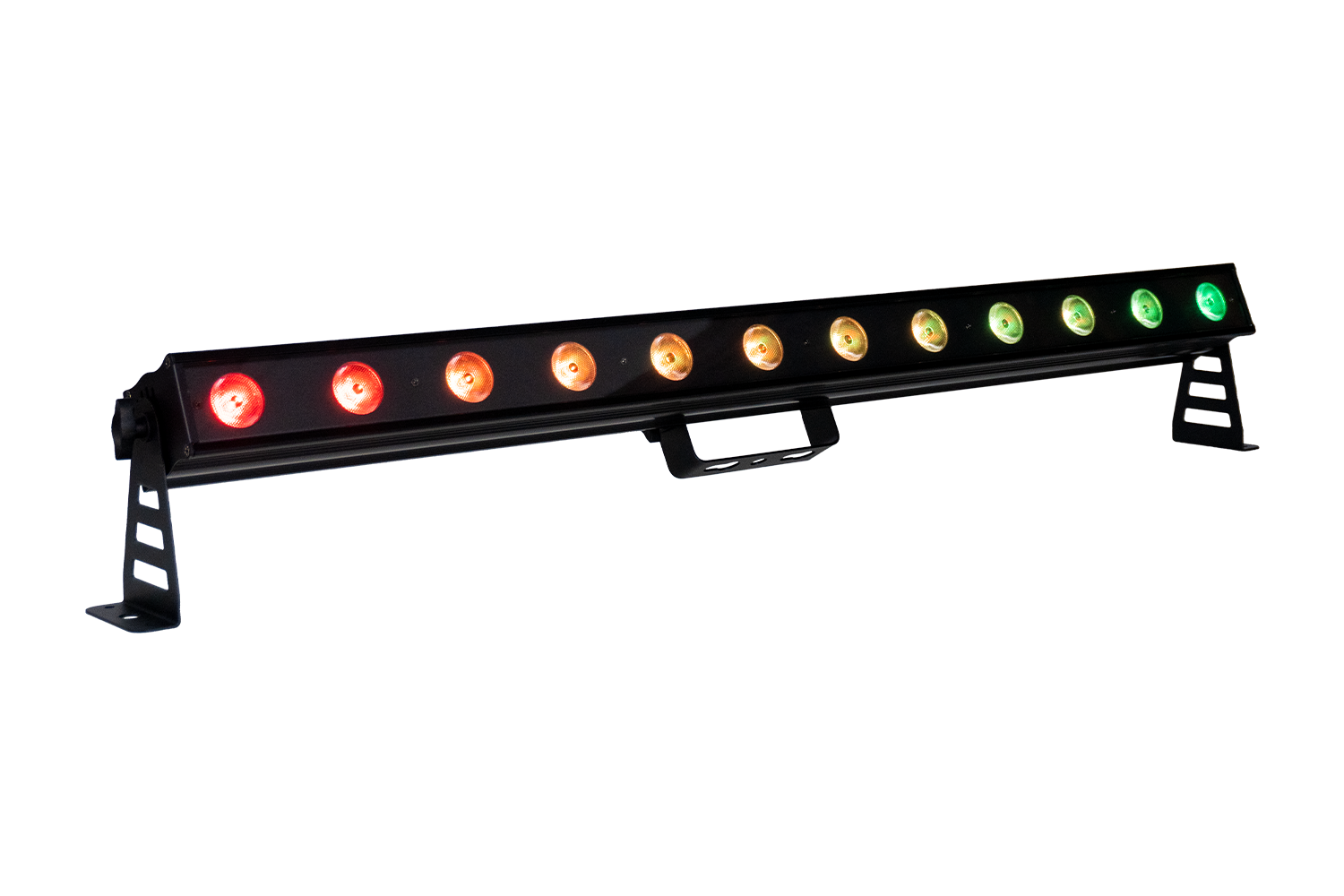

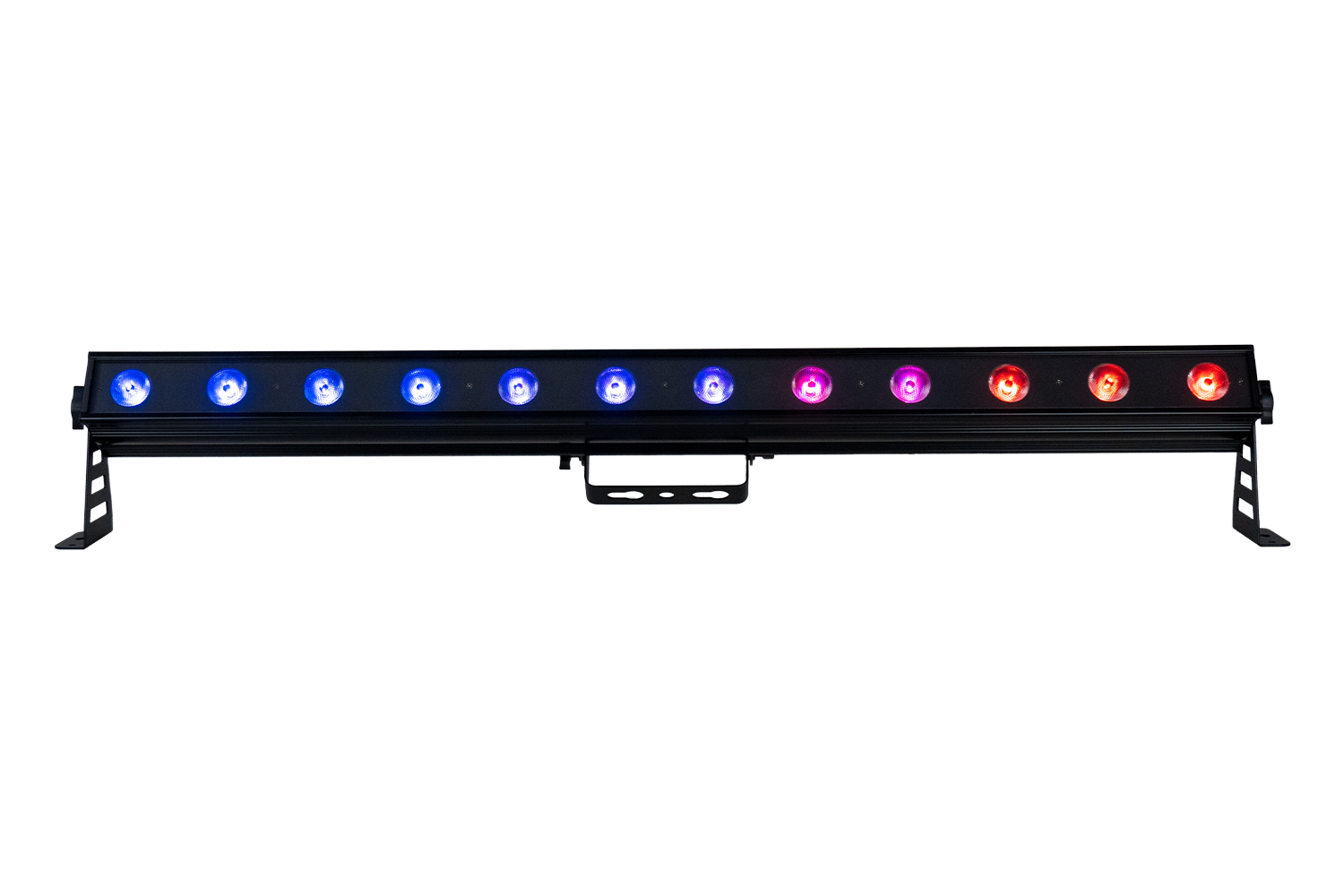

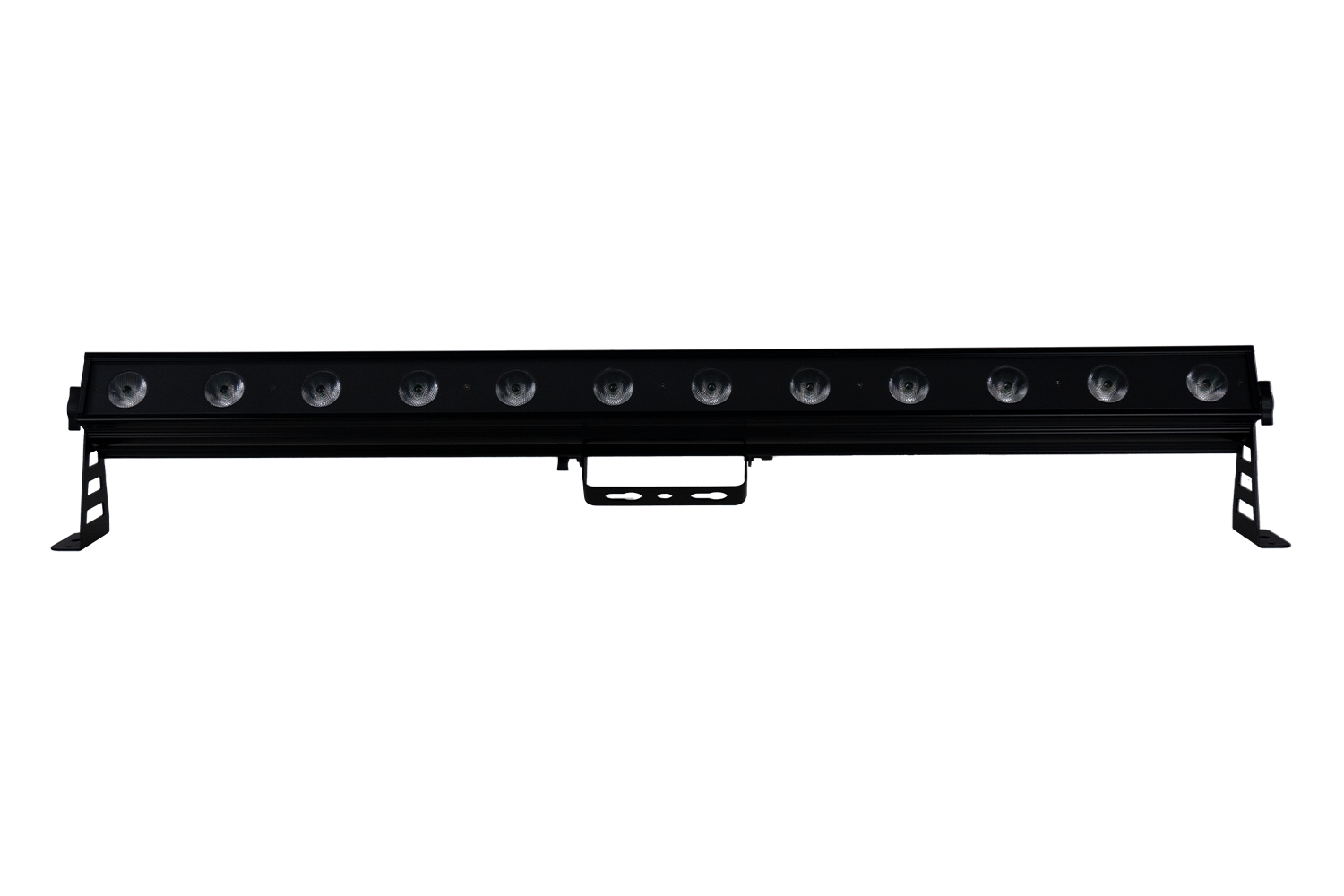

Event Lighting PIXBAR12X3 - 12x 3 W RGB Pixel Control Bar

Online Stock Only. Local pickup may be available on some items with prior arrangement. We Price Match please call in or text 04 5555 1974.

This product is discontinued.

Event Lighting PIXBARs are perfect for fixed installations and productions. All models feature pixel control, an aluminium housing and fanless operation, making them silent and virtually maintenance free.

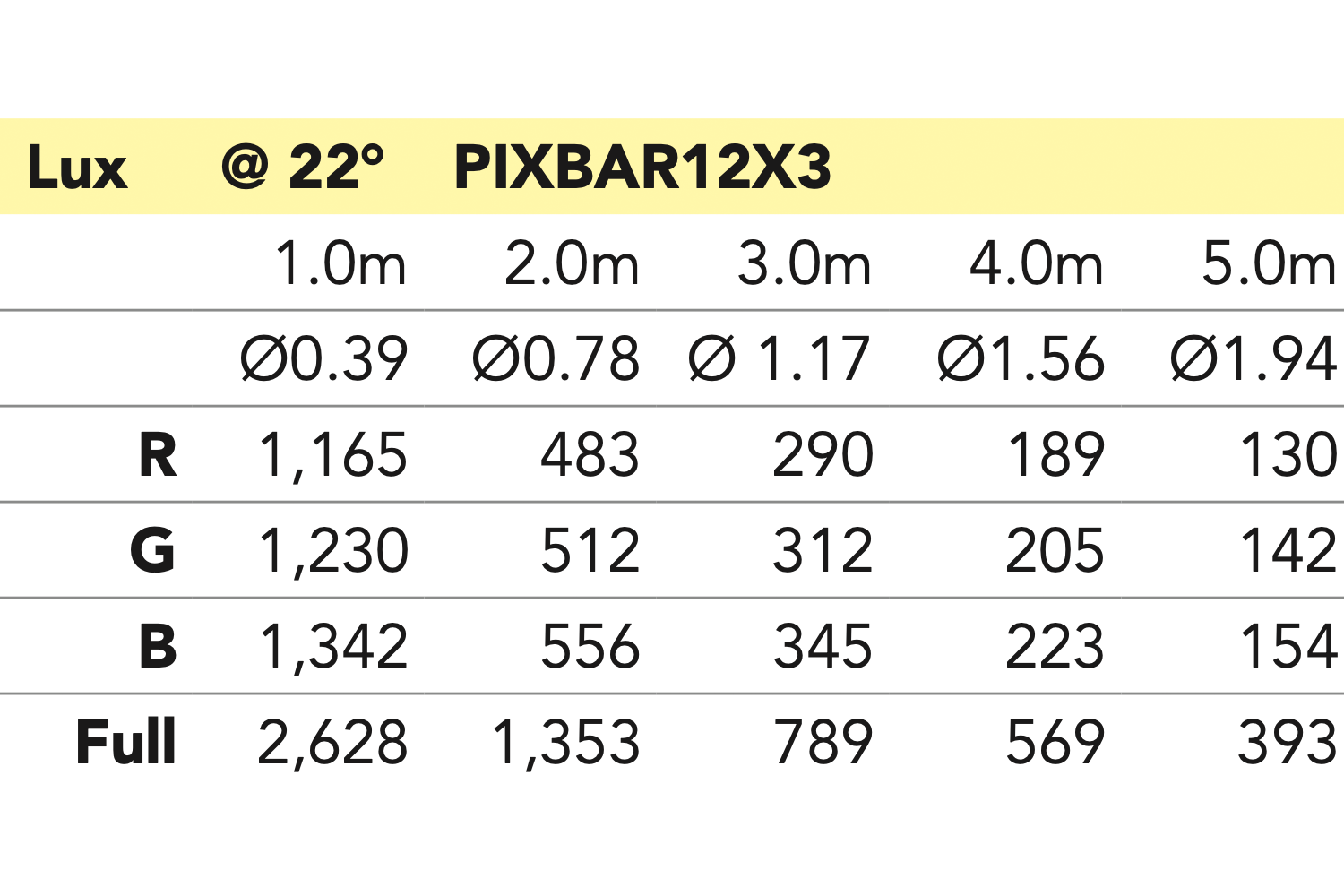

Photometrics

• Light Source: 12x 3 W RGB LEDs

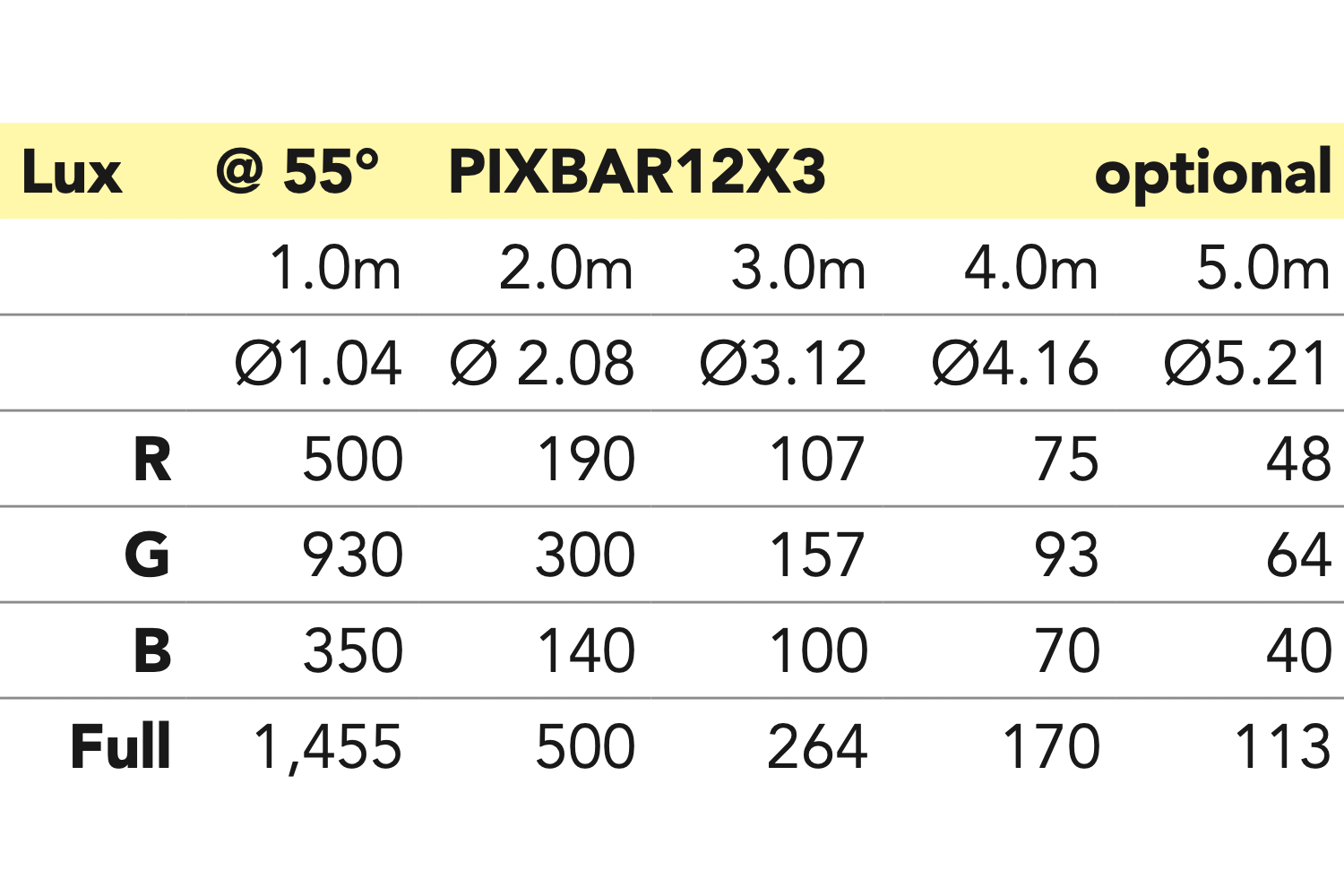

• Beam Angle: 22° (optional: 55°)

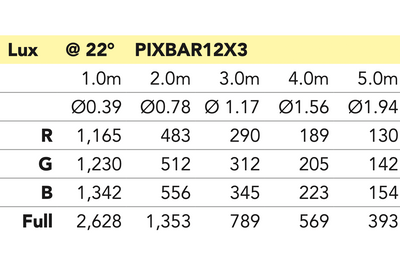

• Output: 1,353 lux @ 2 m RGB full on
• PWM: 16,000 Hz
• LED Life: 50,000 hours

Effects

• Dimming: 0~100%, 8-bit
• Strobe: 1~30 Hz

 Power

• Input Voltages: 100~240 V AC,50/60 Hz, 60 W

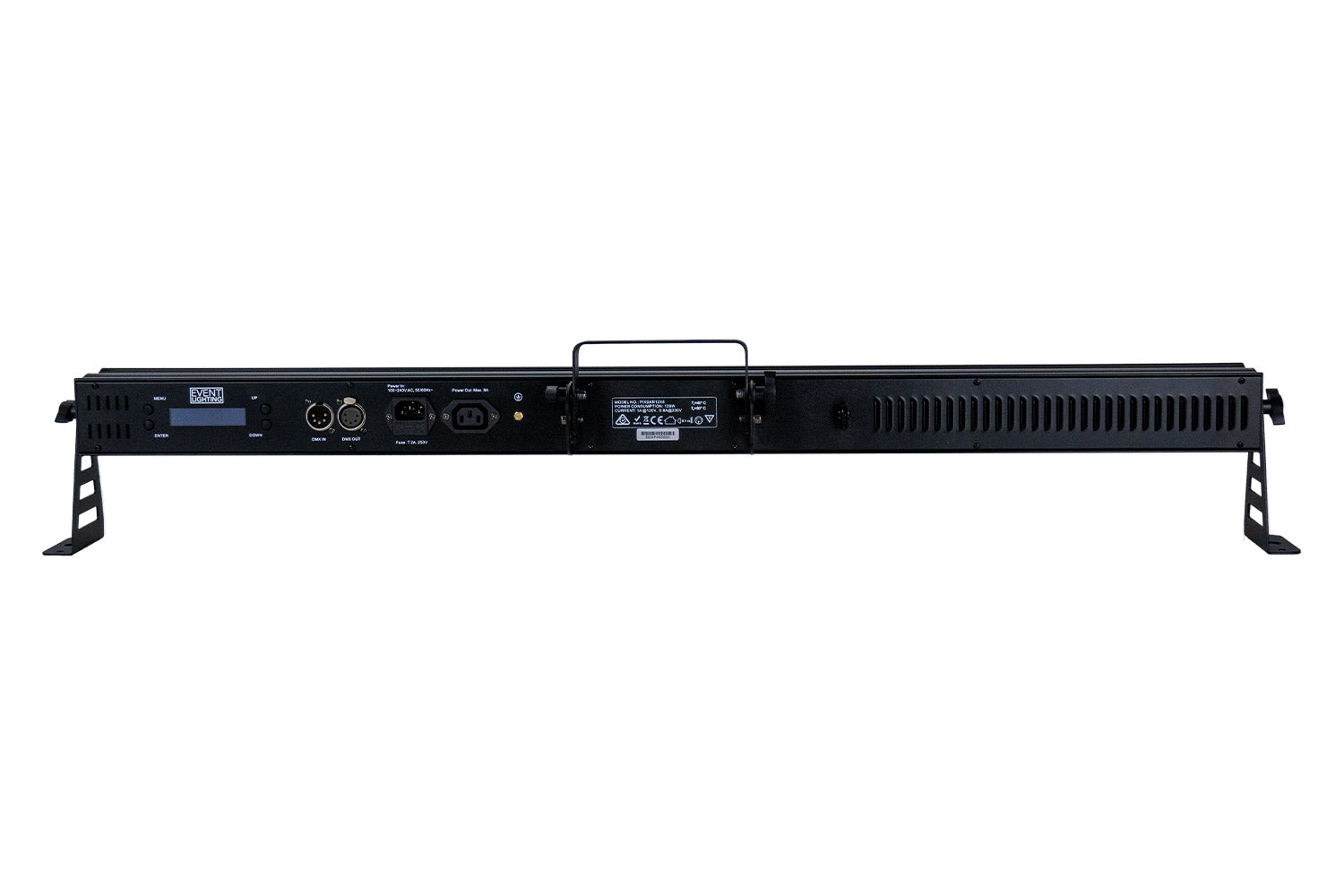

• Power Connection: IEC in/out

Control

• Operation Modes: DMX, manual, auto, sound active, master/slave, multi fixture chase
• Display: 4-button LCD control panel
• Control Protocol: DMX512
• DMX Channels: 3 / 5 / 6 / 7 / 9 / 12 / 18 / 36
• Control Interface: 5-pin XLR
• Software Upgrade via DMX: Yes

Housing

• Housing Materials: Aluminium, matte black finish
• Cooling: Fanless Cooling

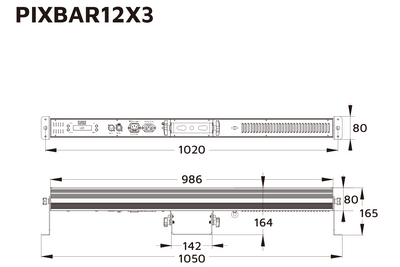

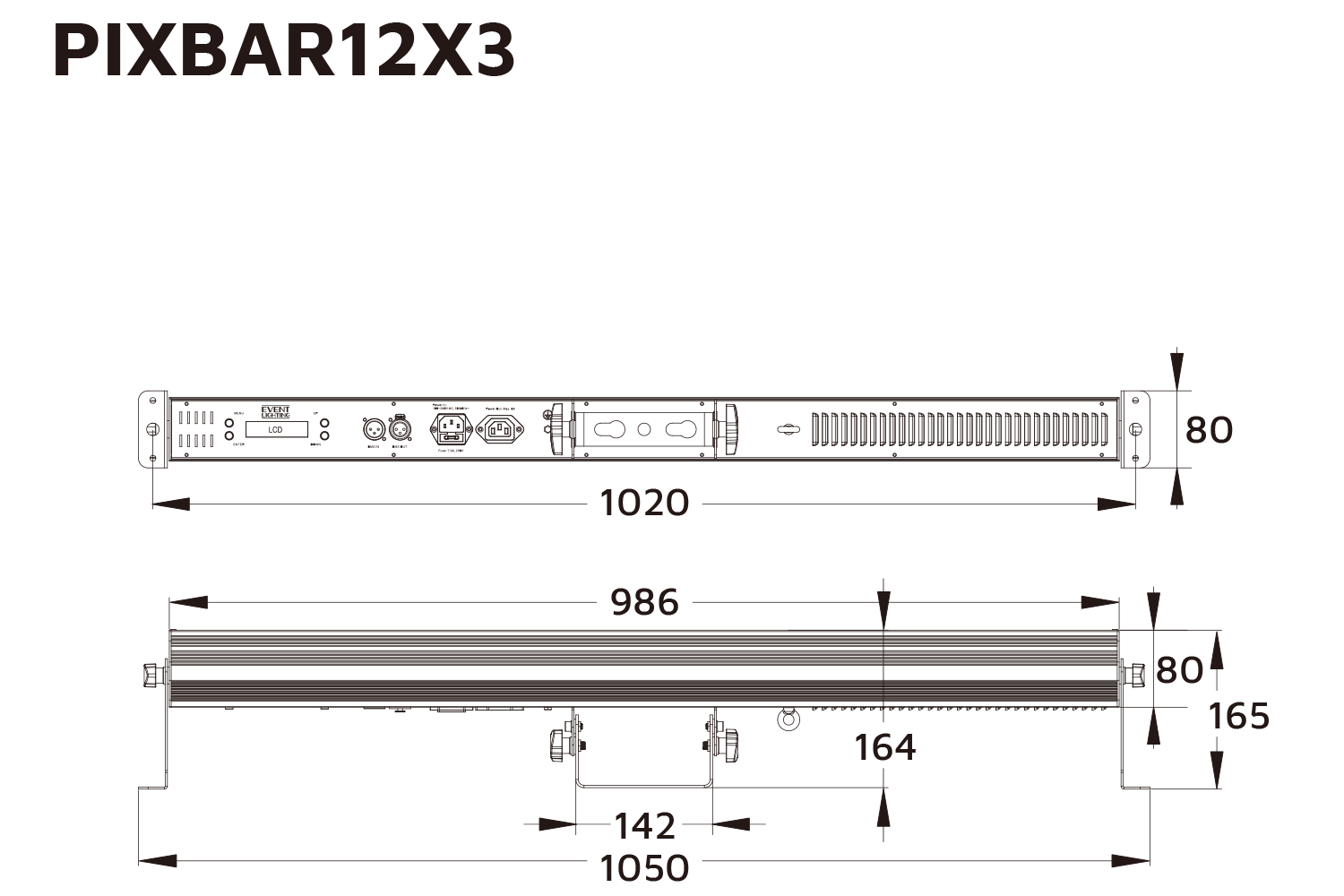

• Dimension: 1050 x 165 x 80 mm
• Net Weight: 4 kg

Accessories

• Road case: PIXBAR12CASE6WC

Product Specification Sheet Download

User Manual Ver3.2.Download

User Manual Ver3.1 Download

User Manual Ver3.0 Download

Spare Parts

Warranty: 3 years
