Event Lighting M7W40RGBW - 7x 40 W RGBW LED Pixel Control Wash Zoom Head

Notify me when this product is available:

Indent Only item (Lead time of 6 to 12 weeks may apply) Please check stock availability before purchase.

Online Stock Only. Local pickup may be available on some items with prior arrangement. We Price Match please call in or text 04 5555 1974.

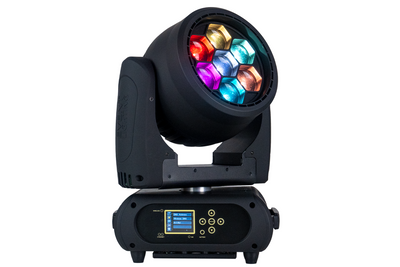

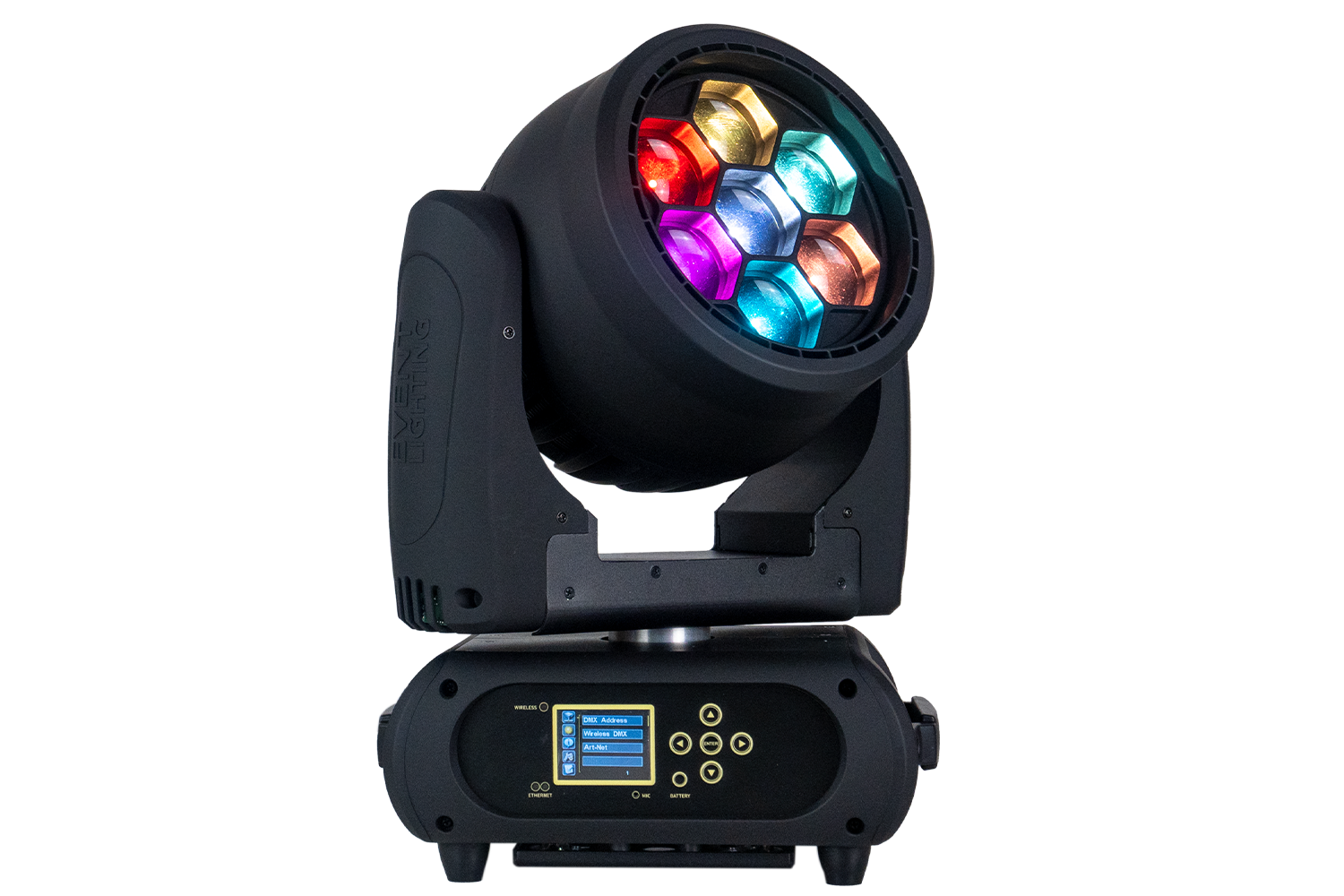

The M7W40RGBW moving head zoom wash uses 7x 40 W RGBW and features LED pixel control and 4~36° zoom with 5-pin DMX in/out, RDM and optional wireless DMX.

    Photometrics

    • Light Source: 7x Osram® 40W 4-in-1 RGBW LED
    • Beam Angle: 4°~36°

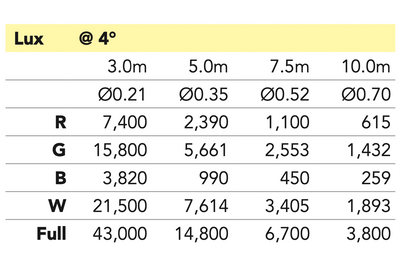

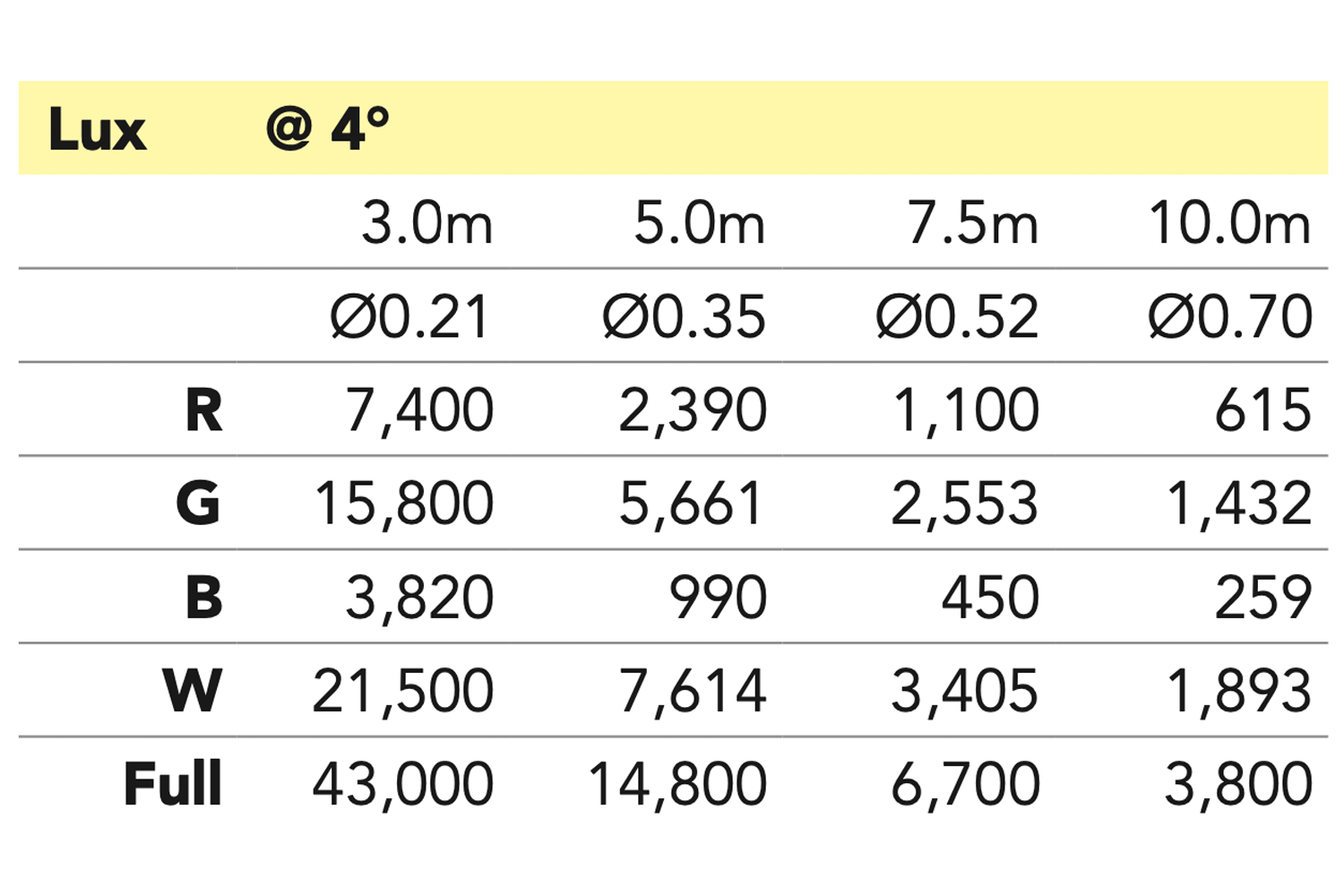

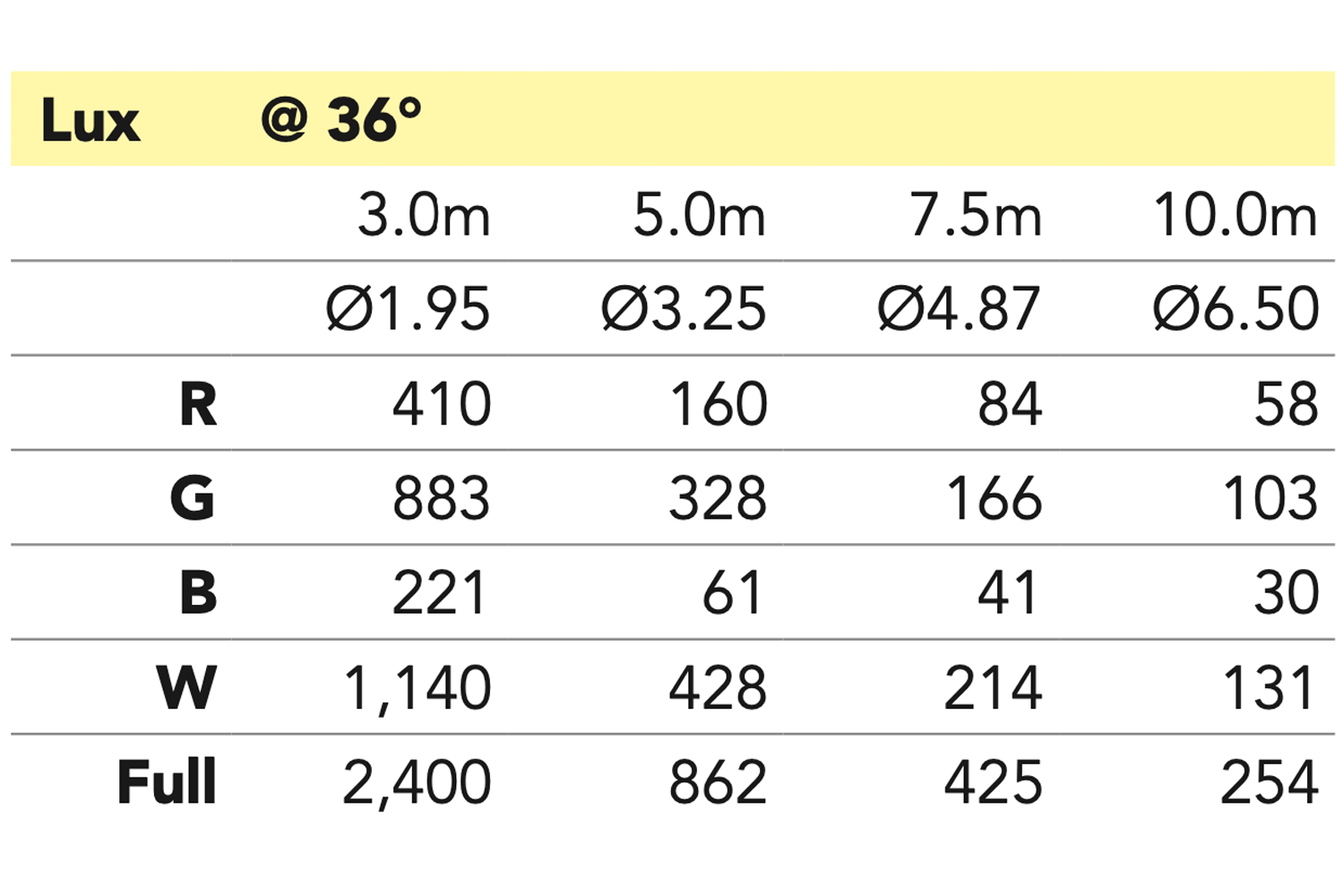

    • Output: 7,000 lumen 43,000 lux @ 3 m RGBW at 4°, 2,400 lux @ 3 m RGBW at 36°
    • PWM: 1,200 Hz
    • LED Lifespan: 60,000 hours

    Effects

    • Dimming: 0 ~ 100%
    • Pixel Control: Yes
    • Strobe: 0.5 ~26 Hz
    • Zoom: Motorised, 4°~36°
    Movement 16-bit auto reposition
    • Pan: 630° (1.56 sec) / 540° (1.3 sec)
    • Tilt: 265° (0.85 sec)

    Power

    • Input Voltage: 100~240 V AC, 50/60 Hz, 265 W
    • Connection: Neutrik® PowerCON in/out

    Control

    • Operation Modes: DMX, auto, sound active, master/slave
    • Control Protocol: DMX512, RDM, Art-Net (optional: W-DMX™)
    • DMX Channels: 22 / 51 / 19 / 21

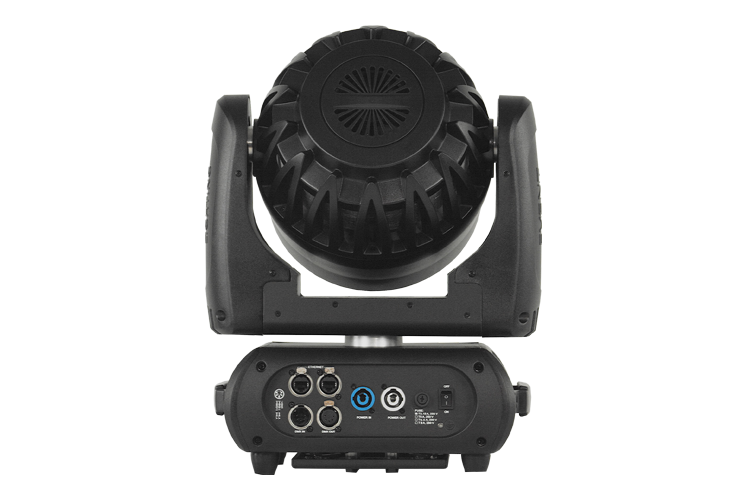

    • Control Interface: 5-Pin XLR in/out, Ethernet in/out
    • Display: 2.4″ colour LCD control panel with battery power.
    • Software Upgrade via DMX: Yes

    Housing

    • Materials: ABS & Steel, matte black finish
    • Cooling: Multi sensor thermostat controlled variable speed fan
    • IP rating: IP20
    • Net Weight: 12 kg
    • Rigging: 2x Omega Brackets with 1/4-turn Quick Locks

    Product Specification Sheet Download
