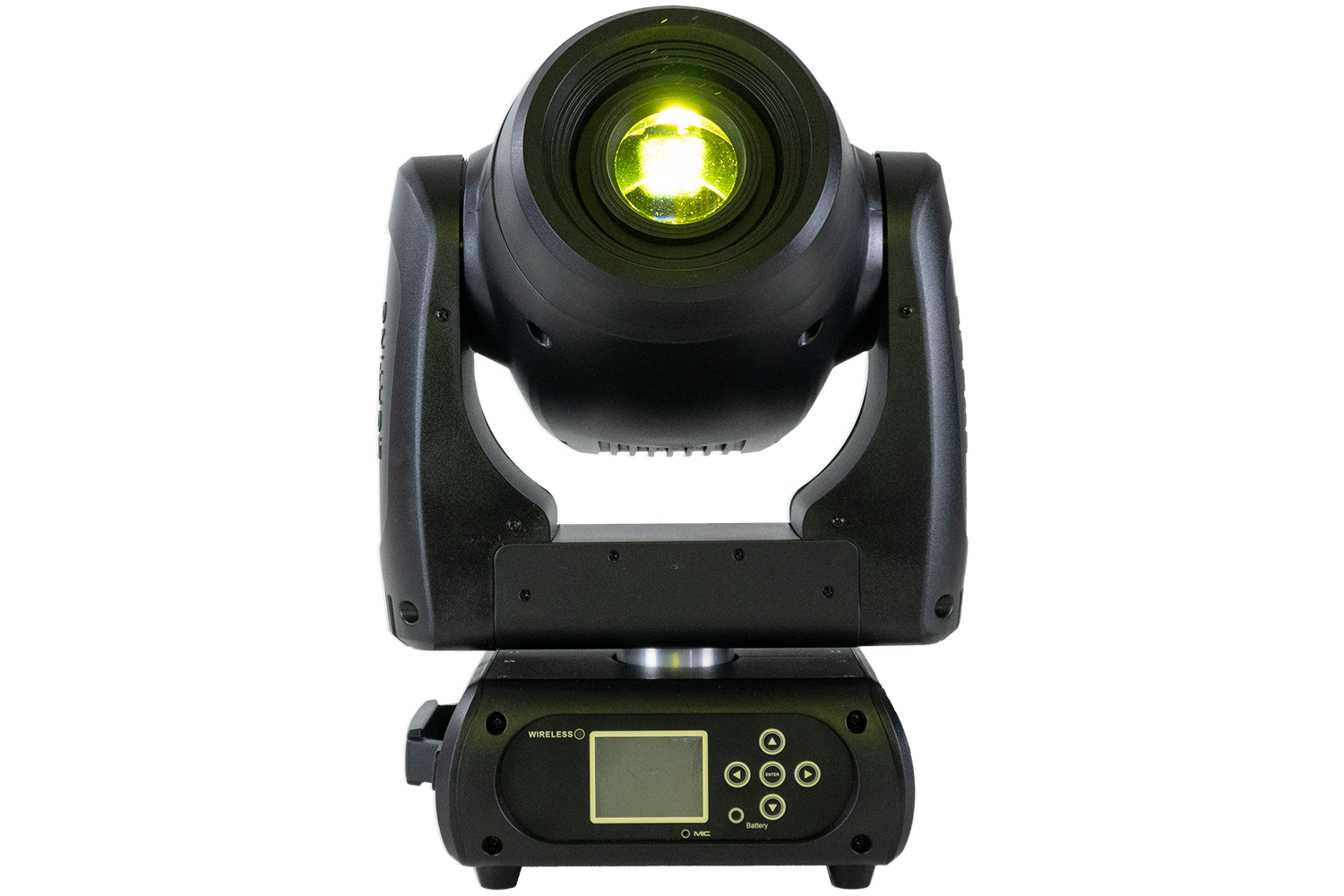

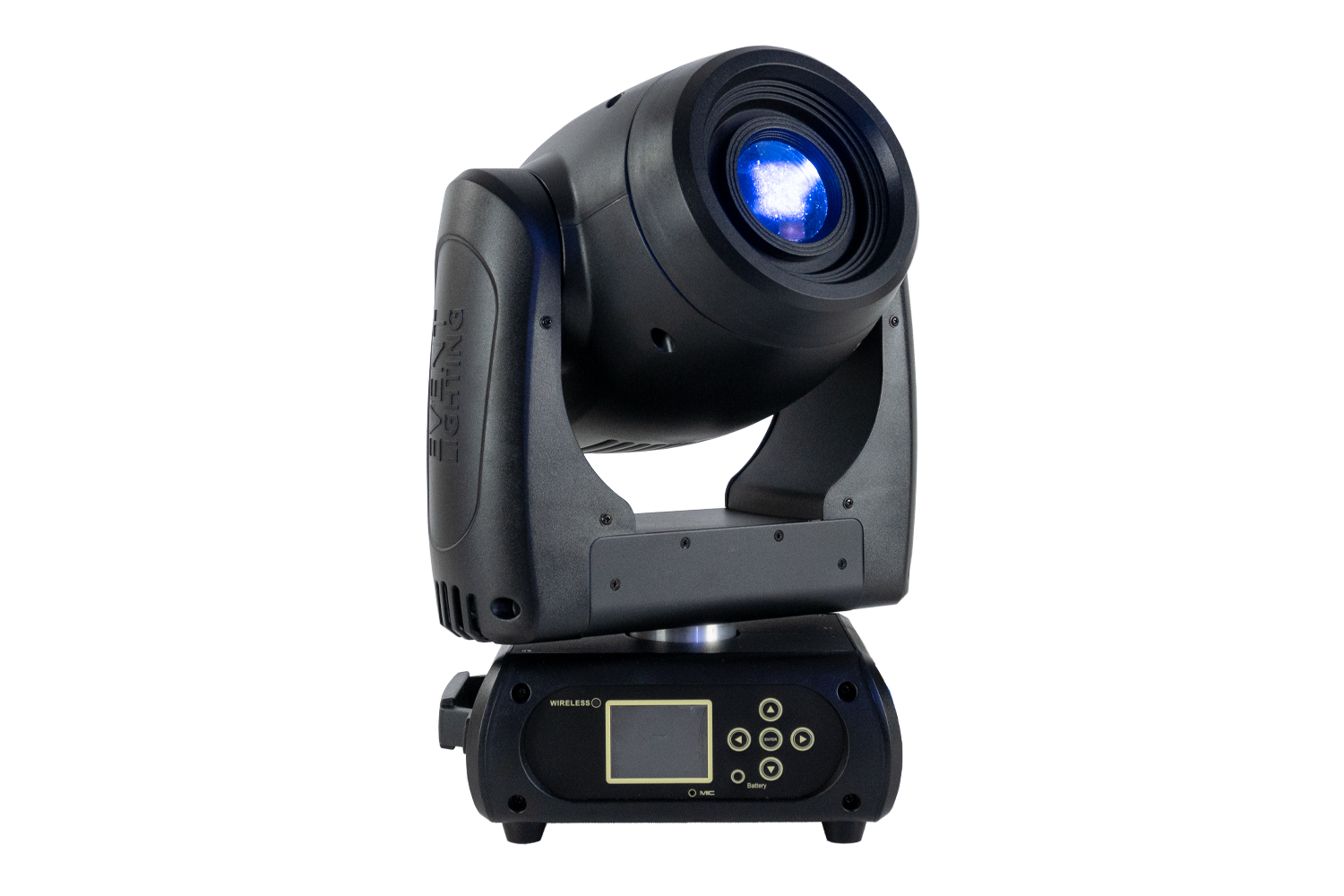

Event Lighting M1S80W - 80 W LED Spot Moving Head



Online Stock Only. Local pickup may be available on some items with prior arrangement. We Price Match please call in or text 04 5555 1974.

Photometrics

• Light Source: 80 W White LED Module, 8,000 K
• Beam Angle: 10°~16°

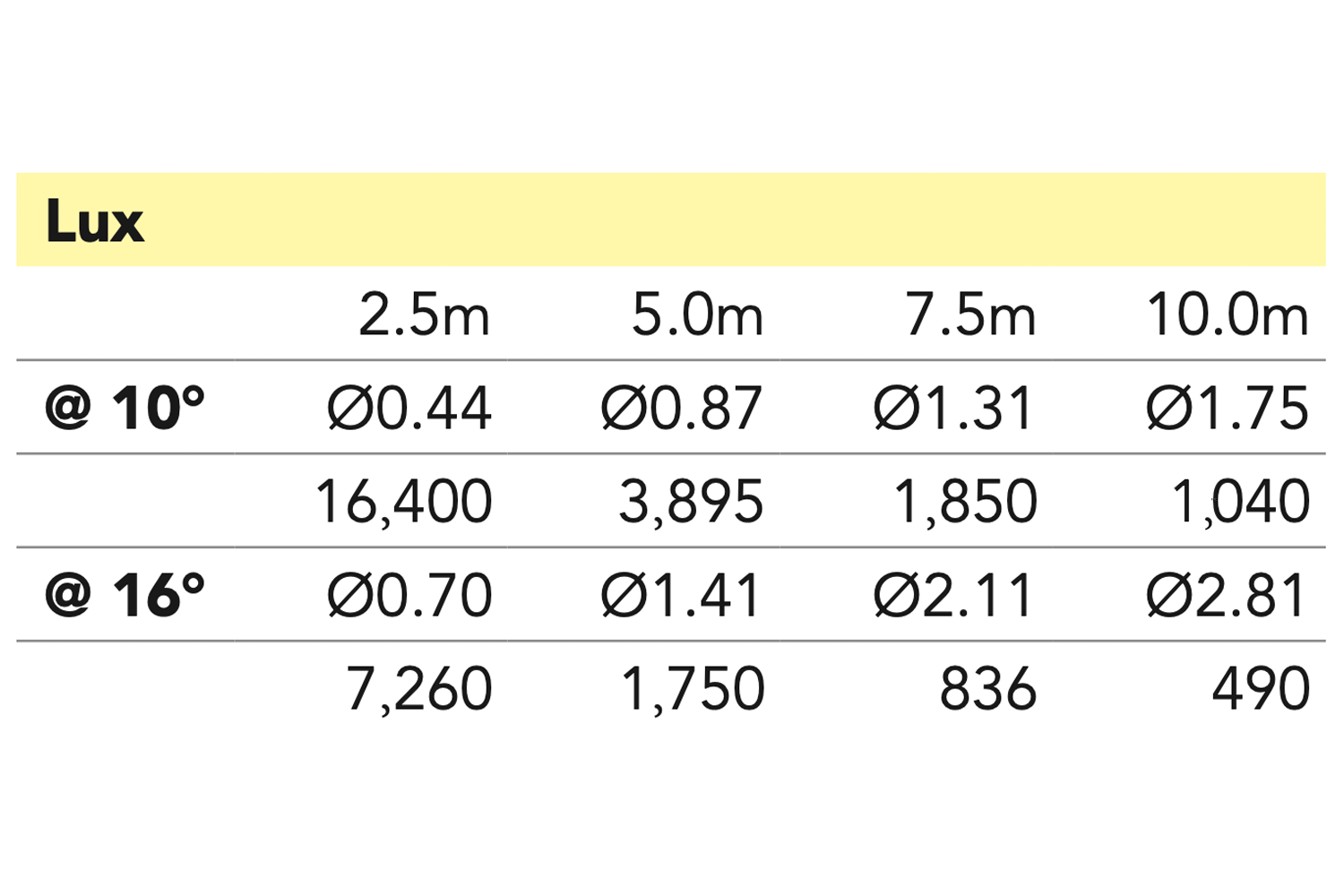

• Output: 1,826 lumen, 16,400 lux @ 2.5 m @ 10°, 7,260 lux @ 2.5 m @ 16°
• PWM: 1,200 Hz
• LED Lifespan: 60,000 hours

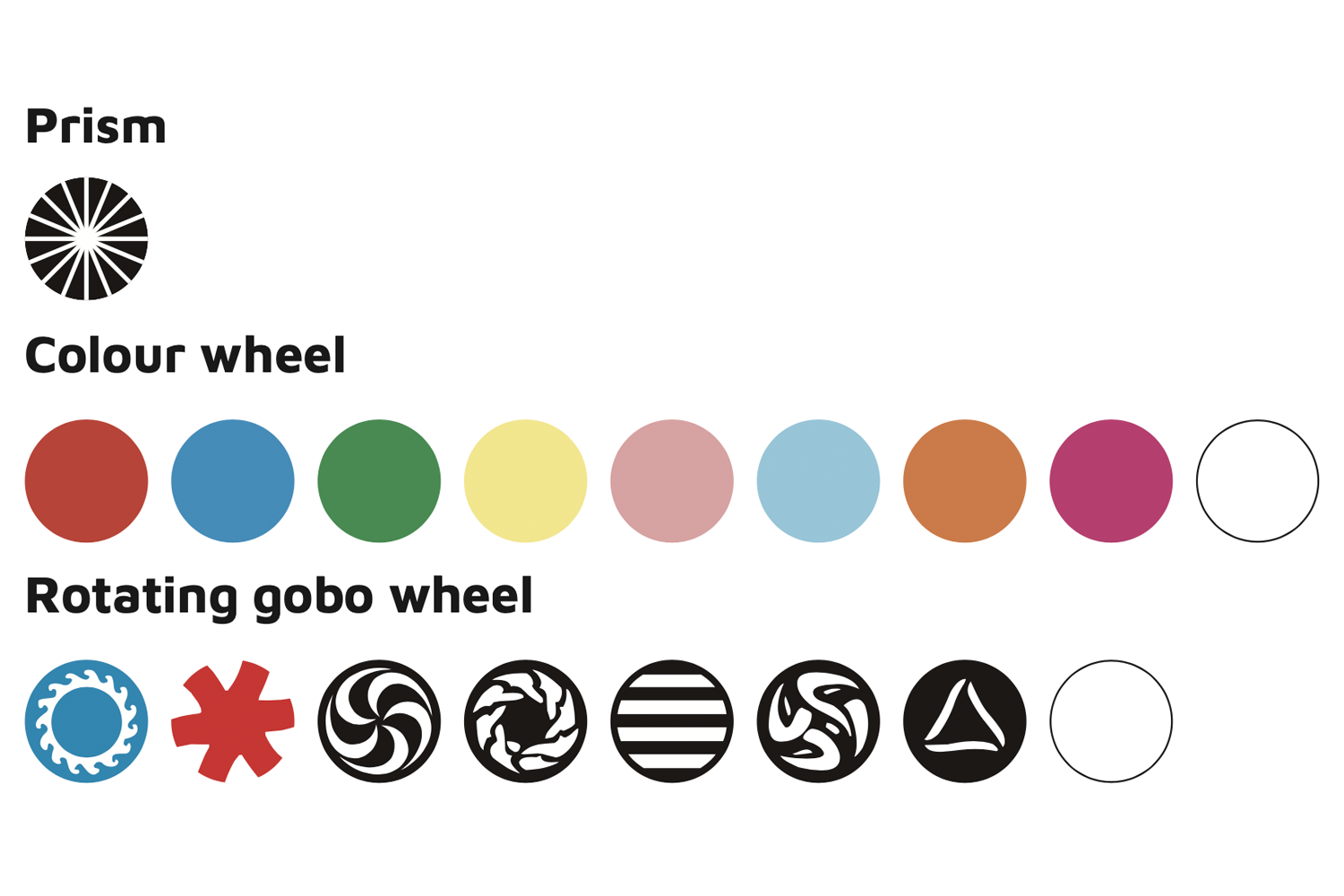

Colour 8 Colours + Open

Gobo 1pc 7 + Open Interchangeable Rotating Gobo Wheel (Outside Ø23.9mm, Inside Ø19mm).

Effects

• Dimming: 0~100%
• Strobe: 0.5~26 Hz
• Zoom: Manual 10° - 16°
• Focus: Motorised
• Prism: 16-facet
• Frost: Yes

Movement 8 / 16 bit Auto Reposition

• Pan: 630°(4.3 sec) or 540°( 3.9 sec)
• Tilt: 233°(2.2 sec)



Power

• Input Voltage: 100~240 V AC, 50/60 Hz, 140 W
• Connection: Neutrik® powerCON in/out

Control

• Operation Modes: DMX, auto, sound active, master/slave
• Protocol: DMX512, RDM (optional: W-DMX™)
• DMX Channels: 17 / 18 / 11 / 13
• Interface: 3-pin XLR in/out
• Display: 2.4″ colour LCD control panel with battery power.
• Software Upgrade via DMX: Yes

Housing

• Materials: ABS & steel, matte black finish
• Cooling: Multi sensor thermostat controlled variable speed fan
• IP rating: IP20
• Net Weight: 10 kg
• Rigging: 1x omega brackets with 1/4-turn quick locks

Product Specification Sheet Download
