Photometrics
- Light source: 5W RGB
-
Wavelength:
- Red: 638nm
- Green: 638nm
- Blue: 450nm
-
Pulse duration and repetition/refresh rate: 1-100Hz
-
Maximum power output of each colour, and total for laser:
- Red: 1000mW
- Green: 1000mW
- Blue: 3000mW
- Total power for laser: 5000mW
Control

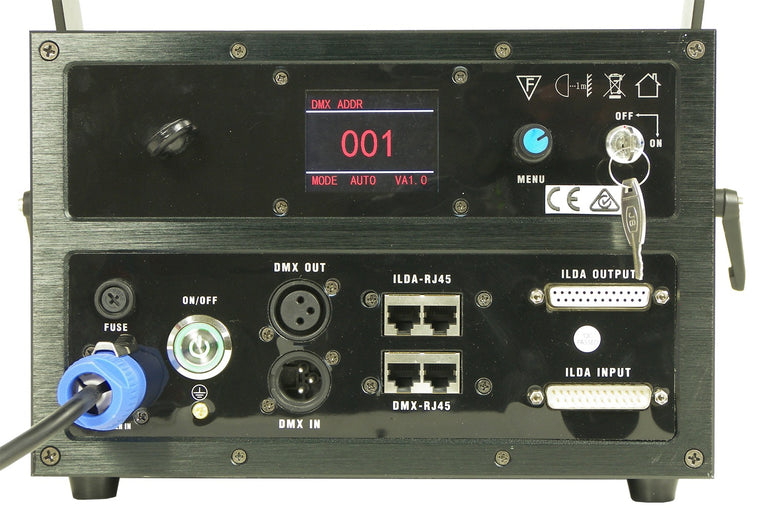

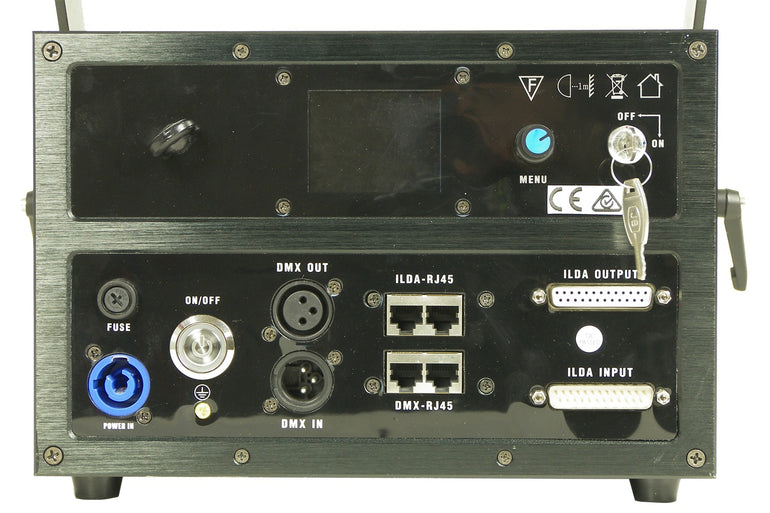

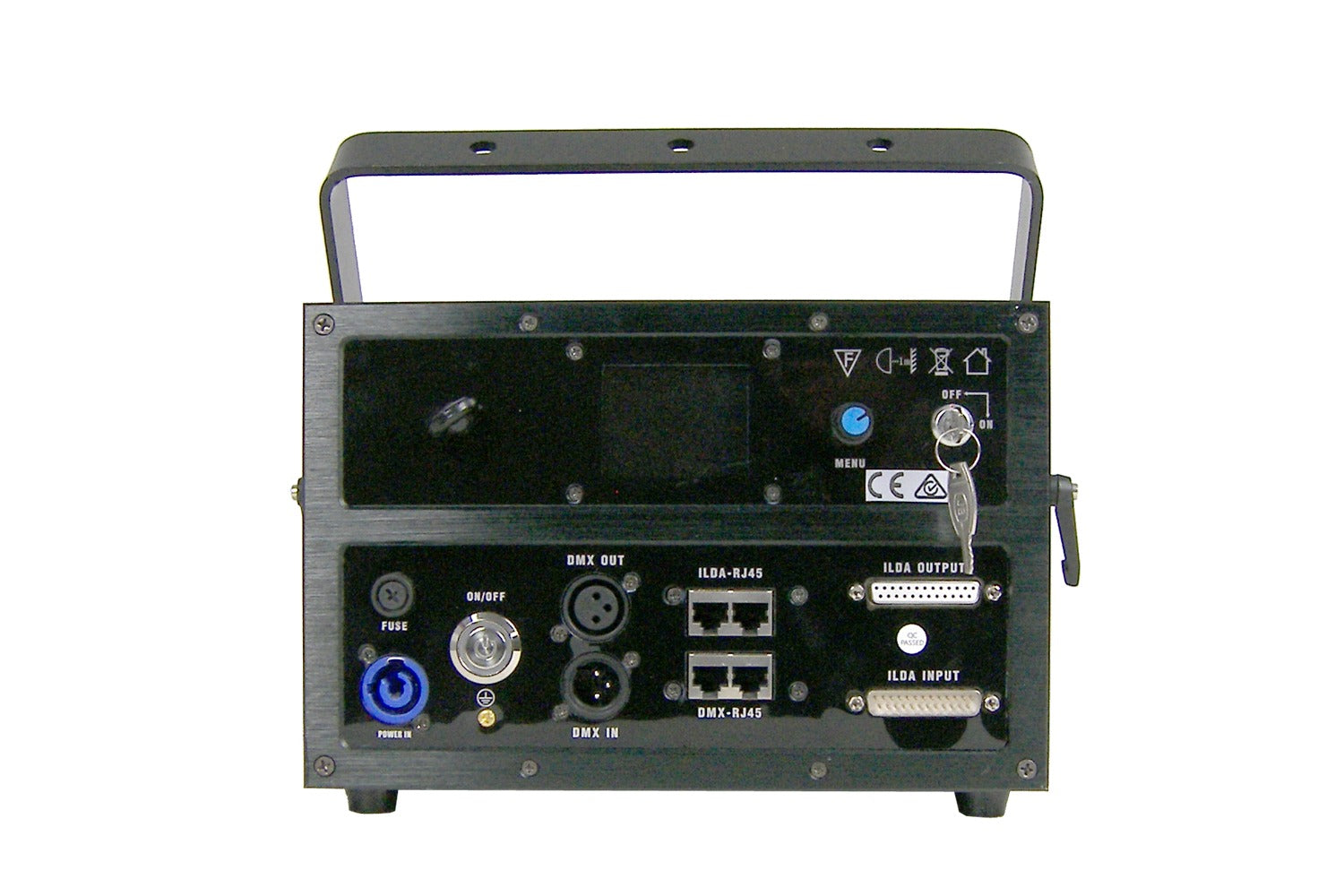

- Control mode: Auto/Sound/DMX512/ILDA/RJ45
- Channels：21CH /32CH /64CH
- Scanning system: 40Kpps Scanner, ±30º
-
- Modulation: Analog
Power
- Power consumption: 70W
- Input voltage: AC100-240V, 50/60Hz
- Fuse: BGDP ￠5x20mm 250VAC F5A
- Connection: True1 Input

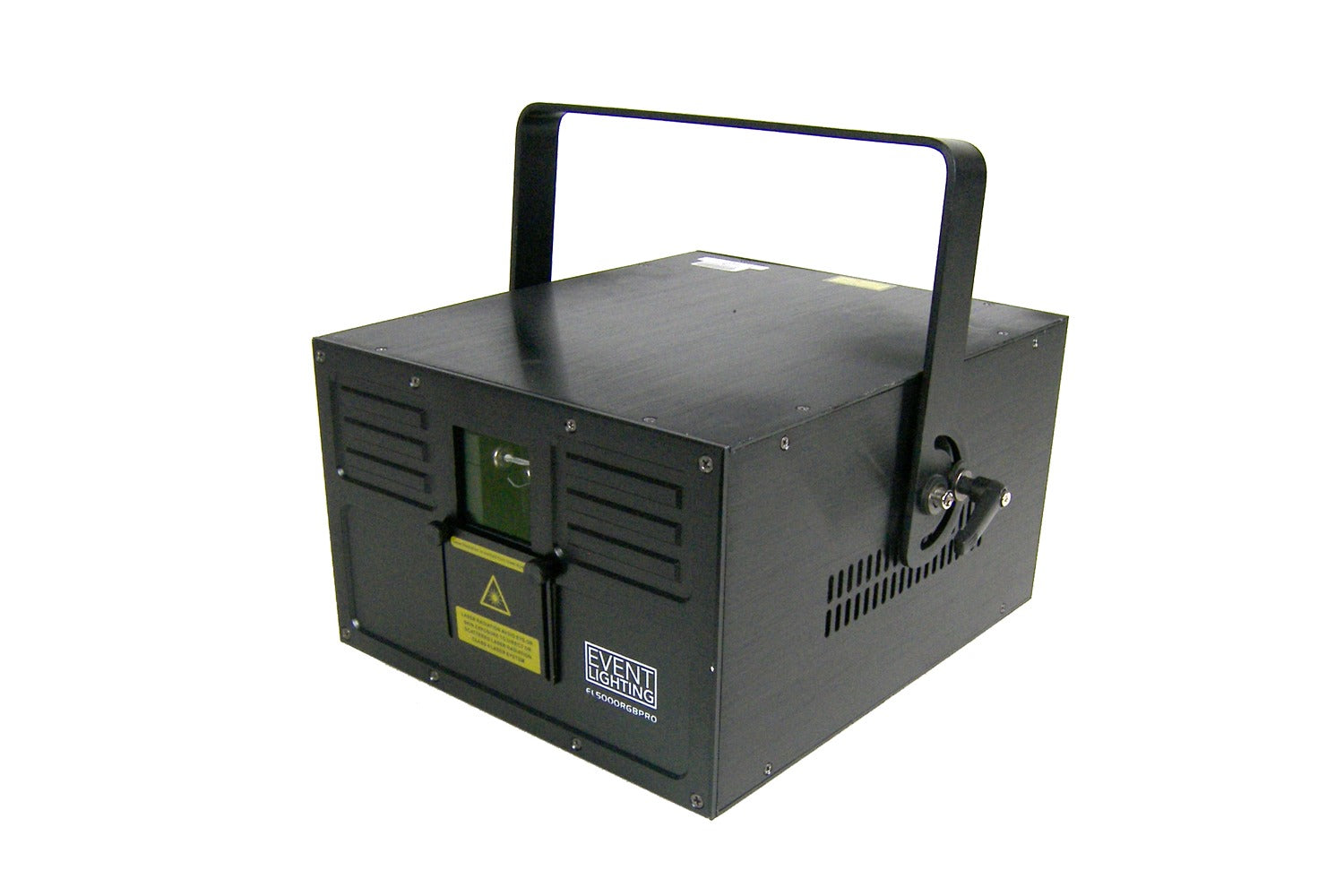

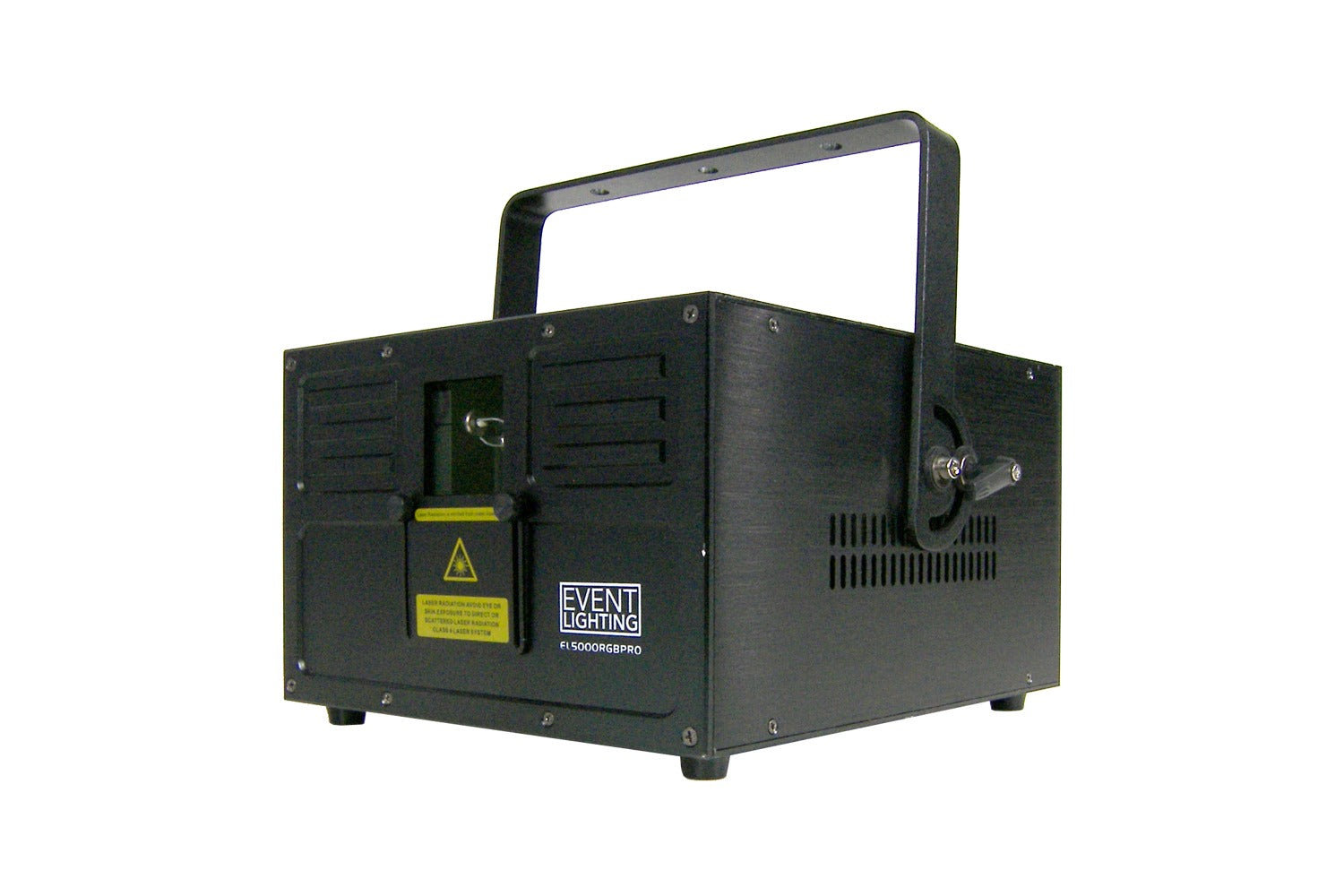

Housing
- Surface temp: Tb=45ºC ( when the environment temp is 30ºC)
- Working temp: 10ºC to -65ºC
- N.W: 8.5Kg
- G.W: 16.5Kg
- Outer packing size: 38.5*38.5*32cm
Download the User Manual
Download the Conformity Declaration
Warranty: 3 years
