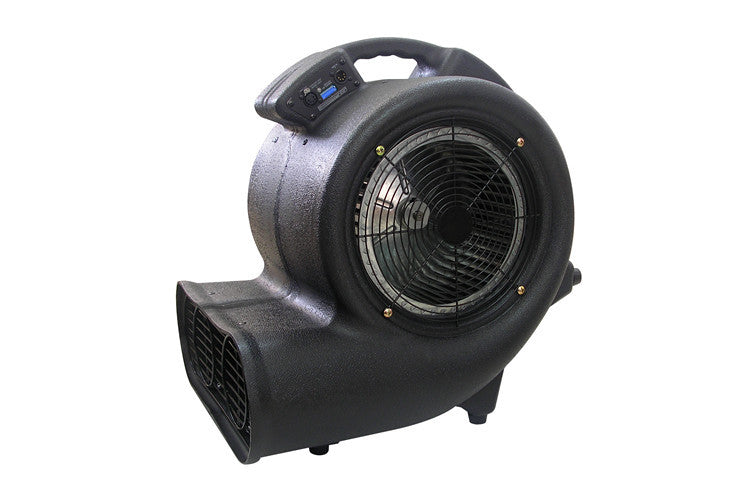

Event Lighting AF5 - Fan with DMX

Online Stock Only. Local pickup may be available on some items with prior arrangement. We Price Match please call in or text 04 5555 1974

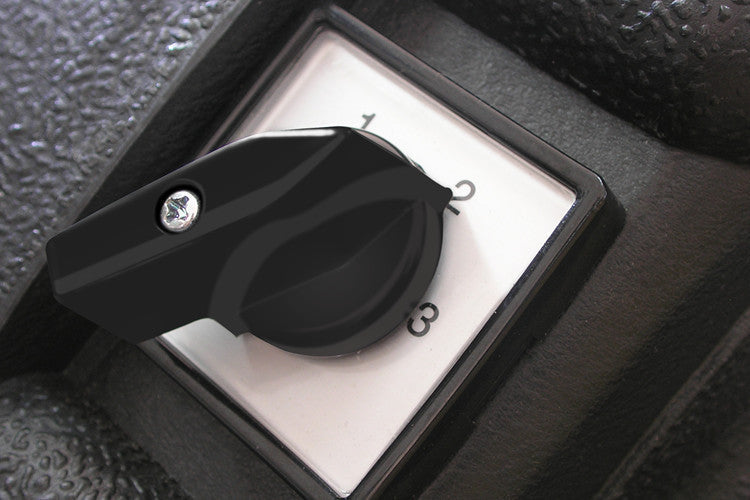

The AF5 is purpose designed for special effects. With 3 fan speeds it can produce different wind effects and has on board DMX control.  The unit can be used with fog, haze, snow and bubble machines.



Input voltage AC 220-240V, 50/60Hz 7.25A
Rated power 1600W
Ambient temp/ range
0°C – 40°C
Air flow
1743 CFM (High)
1567 CFM (Medium)
1351 CFM (Low)
Fan speed
1175 – 1289 rpm
Housing Material
Flame Retardant Plastic (PE 9731)

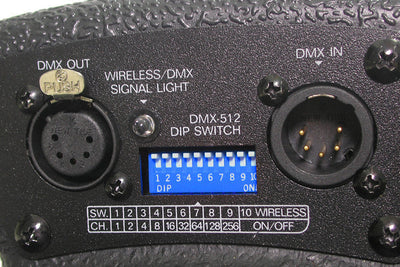

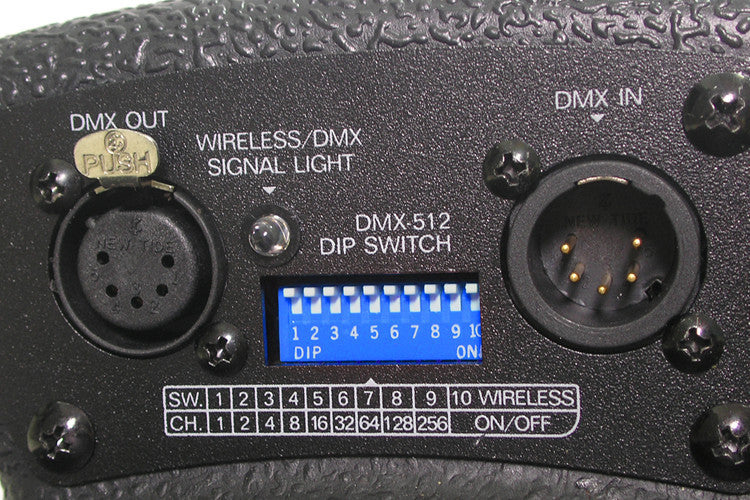

Control Manual, Timer, DMX 512
W1 Wireless Transmitter (Optional)
DMX channels 1 channel
Connection XLR 5-pin (DMX)
Dimension L 558 W 465 H 578 mm
Weight 17.5 kg
