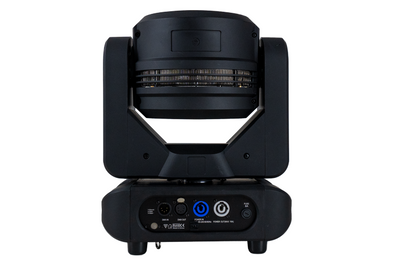

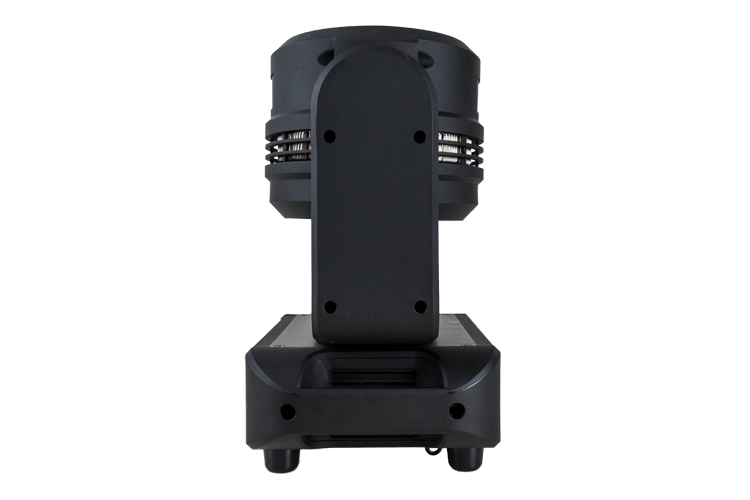

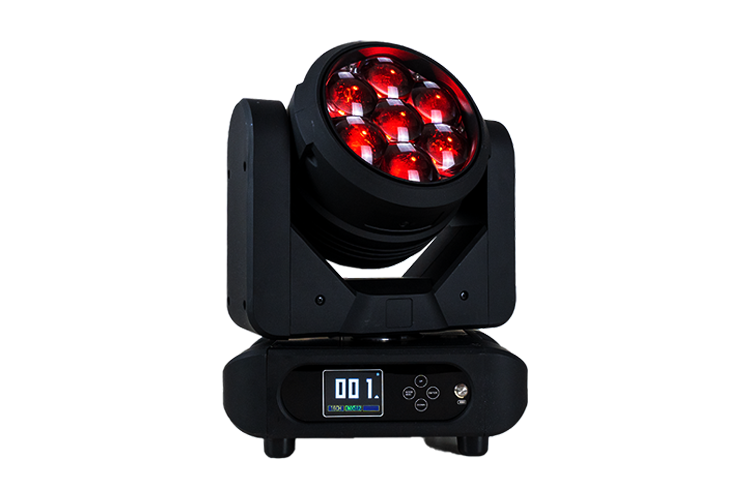

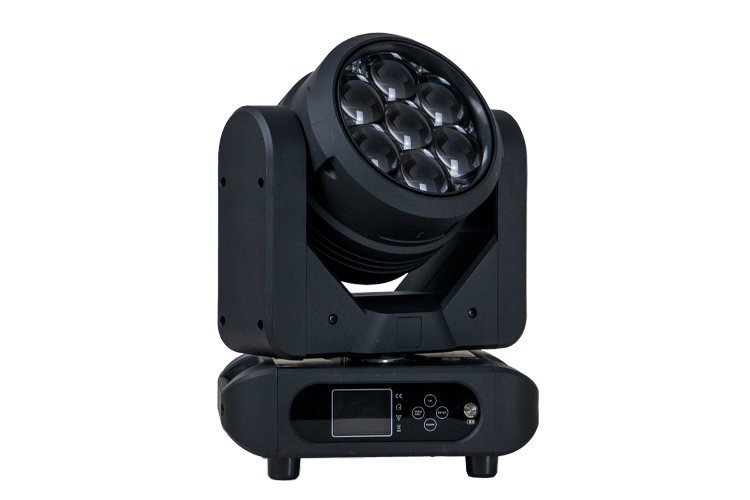

ENFORCER7X60 - 7X60W RGBW Moving Head

This product is discontinued.

See similar products - Moving Heads Wash

The ENFORCER7X60 features 7x 60 W high output RGBW LEDs and a beam angle of 3.5°-60°. This output allows for both a punchy beam and a wide wash. An optional WDMX™ module and 4-way road case are available separately.

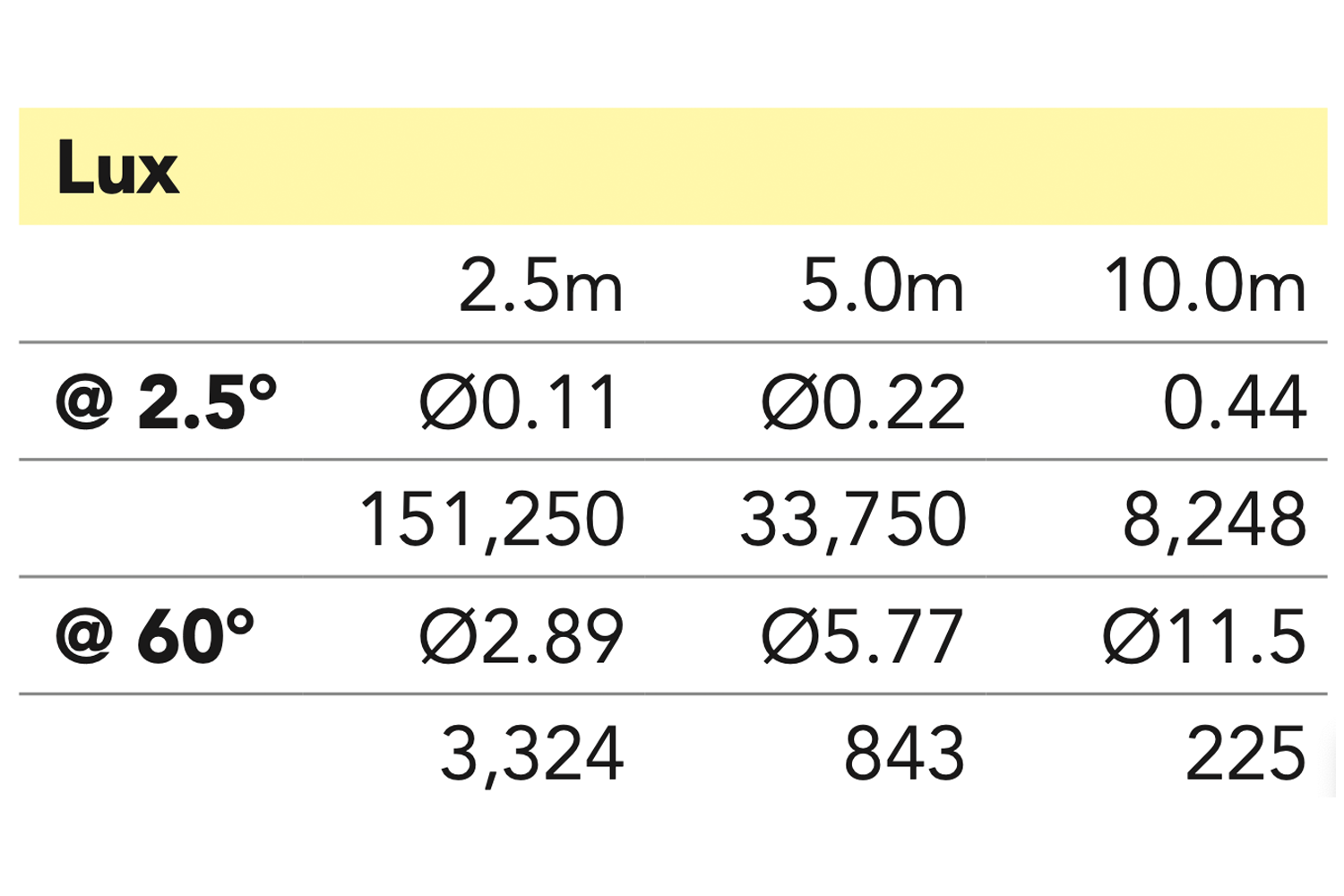

Photometrics

• Light Source: 7x 60 W Osram RGBW 4-in-1 LEDs, 2,500-8,000 K


• Beam angle: 2.5° - 60°


• Output: 151,250 lux @ 2.5° @ 2.5 m


• PWM: 806/1,562/5,000/8,333 Hz


• LED Lifespan: 50,000 hours

Effects

• Dimming: 0-100%, 16-bit


• Strobe: 0-20 Hz


• Zoom: Motorised, 2.5-60°

Movement

• 8/16-bit movement, auto reposition.


• Pan: 540° (2.4 s)


• Tilt: 270° (1.5 s)

Power

• Input Voltage: 100-240 V AC, 50/60 Hz, 570 W

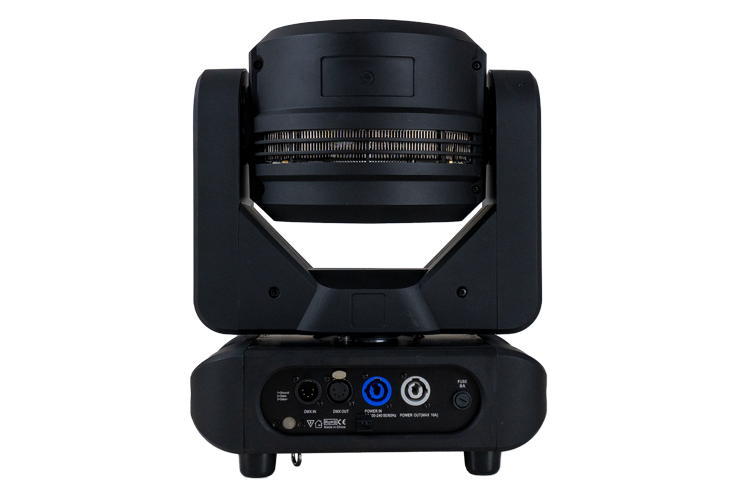

• Connection: Neutrik® powerCON in/out



Control

• Operation Modes: DMX, Manual, Auto, Sound Active, Master/Slave


• Control Protocol: DMX512, RDM (optional: two-way W-DMX™)


• DMX Channels: 16/21


• Control Interface: 5-pin XLR


•





• Display: 2.4" colour, auto reversing LCD control panel with battery power

Housing

• Housing Materials: ABS and steel, matte black finish


• Cooling: Multi-sensor thermostat controlled variable speed fan


• IP Rating: IP20

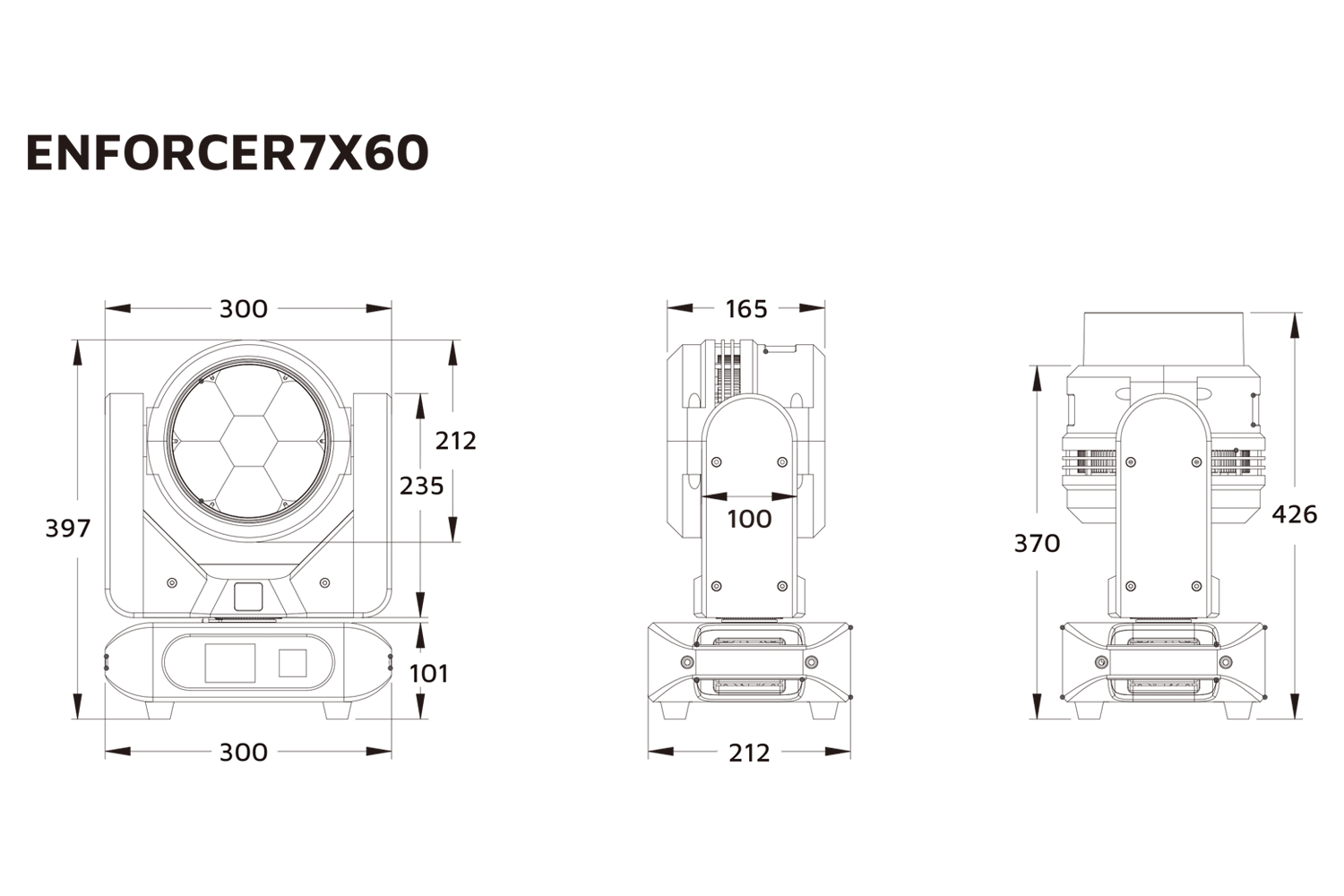

• Net Weight: 9 kg


• Rigging: 1x omega bracket with 1/4 turn quick locks

Accessories

Optional: Road case - ENFORCER7X60C (fits 4)

Product Specification Sheet Download

Download User Manual
